| MOQ: | 1 Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |
7 Kw Rapid Charging Pile EV Charging Station J4 Support Solar Charging
J4 General Introduction:
This product supports both wall-mounted and column-mounted installation, compatible with 99% new energy models, supports App intelligent control, comes with data management platform, can be customized and developed, suitable for residential parking spaces and small charging stations.
Product Features:
High-tech aesthetics: the product is designed by professional industrial design, simple and fashionable appearance with a sense of technology, equipped with three-color indicator light, real-time display of charging pile status.
Multiple safety protection: over-voltage protection, under-voltage protection, current limitation protection, short circuit protection, overload protection, over-temperature protection, grounding protection, leakage protection, full self-power-off function, intelligent temperature control and one-key emergency stop and other protection functions.
Intelligent control:
One charging post for two uses:(Charging pile can realize free for personal use and charge for commercial use)
Appointment charging: (APP intelligent control of start and stop, can make an appointment for charging)
Adjustable billing: (Charging method can be adjusted according to time, power and cost)
Data visualization: (real-time charging data can be viewed, export data report)
Parameters
| Electrical indicators | Parameters |
| Input Voltage | 220VAC+15% |
| Input frequency | 50Hz |
| Rated power | 7kW |
| Metering accuracy | 1.0Level |
| Output Voltage | 220VAC |
| Maximum output current | 32A |
| Standby power consumption | <5W |
| Efficiency | 99% |
| Environmental indicators | Parameters |
| Noise | <40dB |
| Altitude | ≤2000m |
| Working Temperature | -30°C~+50°C |
| Working Humidity | 5%RH~95%RH non-condensing |
| Cooling method | natural cooling |
| Safety design | Parameters |
| Protection design | over/under voltage, short circuit, overload, over temperature, grounding, leakage, lightning protection, etc. |
| Safety standard | GB/T20234,GB/T18487,NB/T33002,NB/T 33008 |
| Protection level | IP54 |
| Installation and Interface | Parameters |
| Dimensions | 208mmX 153mmX 418mm |
| Weight | 4.5kg |
| Charging Interface | National standard 5m single shot |
| Installation | Pillar/wall mounted |
| Communication | Ethernet,4G,Wi-Fi, Bluetooth |
| OEM customization: | User manual, length of charge gun cable,ContentsProjector light, color |

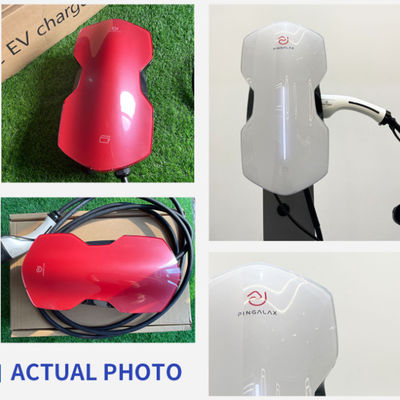

Detailed picture
FAQ
Q1 : What types of payment terms are acceptable?
A: We accept T/T, L/C.
Q2: What is your minimum order requirement?
A: 1 Unit
Q3: what is your shipping method ?
A: For small order, we send goods by FedEx, DHL, TNT, UPS, express service on door to door term. For big order, we send goods by sea or by air.
Q4: What is your delivery time?
A: Usually the delivery time is 15 to 25 days after receiving the deposit.
Q5: Do you have customization services?
A: Yes, we support customized development of product appearance, functions, and solutions.
|
|
