| MOQ: | 1 Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |

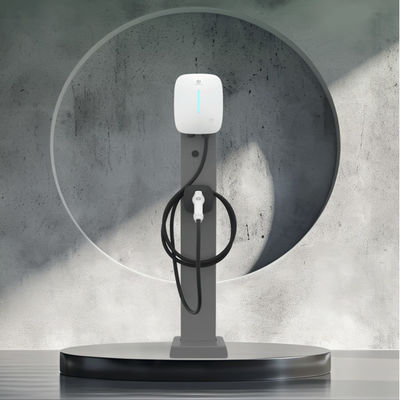

7kW Rapid Charging Station Suitable Installation In Solar Panel Parking Lot
J5 General Introduction:
This product supports both wall-mounted and column-mounted installation, compatible with 99% new energy models, supports App intelligent control, comes with data management platform, can be customized and developed, suitable for residential parking spaces and small charging stations.
Product Features:
High-tech aesthetics: the product is designed by professional industrial design, simple and fashionable appearance with a sense of technology, equipped with three-color indicator light, real-time display of charging pile status.
Multiple safety protection: over-voltage protection, under-voltage protection, current limitation protection, short circuit protection, overload protection, over-temperature protection, grounding protection, leakage protection, full self-power-off function, intelligent temperature control and one-key emergency stop and other protection functions.
Intelligent control:
One charging post for two uses:(Charging pile can realize free for personal use and charge for commercial use)
Appointment charging: (APP intelligent control of start and stop, can make an appointment for charging)
Adjustable billing: (Charging method can be adjusted according to time, power and cost)
Data visualization: (real-time charging data can be viewed, export data report)
Parameters
| Electrical indicators | Parameters |
| Input Voltage | 220VAC+15% |
| Input frequency | 50Hz |
| Rated power | 7kW |
| Metering accuracy | 1.0Level |
| Output Voltage | 220VAC |
| Maximum output current | 32A |
| Standby power consumption | <5W |
| Efficiency | 99% |
| Environmental indicators | Parameters |
| Noise | <40dB |
| Altitude | ≤2000m |
| Working Temperature | -30°C~+50°C |
| Working Humidity | 5%RH~95%RH non-condensing |
| Cooling method | natural cooling |
| Safety design | Parameters |
| Protection design | over/under voltage, short circuit, overload, over temperature, grounding, leakage, lightning protection, etc. |
| Safety standard | GB/T20234,GB/T18487,NB/T33002,NB/T 33008 |
| Protection level | IP66 |
| Installation and Interface | Parameters |
| Dimensions | 224mmX 128mmX 310mm |
| Weight | 4kg |
| Charging Interface | National standard 5m single shot |
| Installation | Pillar/wall mounted |
| Communication | Ethernet,4G,Wi-Fi, Bluetooth |
| OEM customization: | Logo, nameplate, user manual, length of charge gun cable |
Detailed picture
Usage Scenario:
Family charging: installed in the family parking space, or garage, home can be charged, efficient use of free time charging, full power at any time to go.
Enterprises and public institutions charging: installed in enterprises, schools and other free public parking space charging occasions, according to the owner's charging needs, the configuration of different charging facilities and charging standards, efficient use of parking lots.
Intelligent Transportation Charging: Applicable to transportation road network, airports, railway stations, highway service areas and other key transportation routes, providing one-stop charging solutions to solve the problem of charging management.
Fleet Charging: For centralized charging of vehicles in urban bus, taxi and logistics fleets. Charging form can be set according to the type of vehicles, vehicles can be centralized charging in the electricity price trough time, reduce operating costs, intelligent management system can be provided to facilitate centralized management of vehicles.
Commercial real estate charging: applicable to business districts, hotels, communities, scenic spots and so on. Help consumers, visitors, tourists, etc. to solve the mileage anxiety, parking can be charged, improve the satisfaction of shopping mall users, compatible with the existing operating system to provide one-stop charging management services.
WHY CHOOSE US
1. Self- developed chip and management platform.
2. Landing of multiple oversea project.
3. 3000+ pcs weekly production capacity.
4. Strong R&D capability, more than 100 R&D personners.
5. Multilingual after-sales service.
6. International export certificates.
|
|
