| MOQ: | 1 Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |

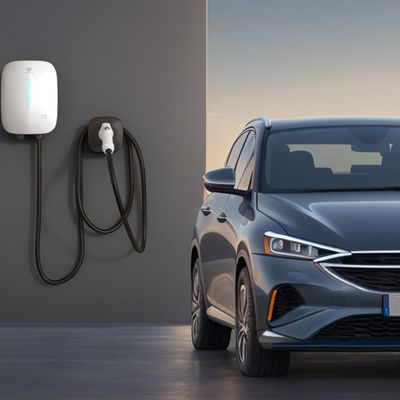

220V EV Charging Station J5 Rapid Charging Pile for Personal and Commercial Use
J5 General Introduction:
This product supports both wall-mounted and column-mounted installation, compatible with 99% new energy models, supports App intelligent control, comes with data management platform, can be customized and developed, suitable for residential parking spaces and small charging stations.
Product Features:
High-tech aesthetics: the product is designed by professional industrial design, simple and fashionable appearance with a sense of technology, equipped with three-color indicator light, real-time display of charging pile status.
Multiple safety protection: over-voltage protection, under-voltage protection, current limitation protection, short circuit protection, overload protection, over-temperature protection, grounding protection, leakage protection, full self-power-off function, intelligent temperature control and one-key emergency stop and other protection functions.
Intelligent control:
One charging post for two uses:(Charging pile can realize free for personal use and charge for commercial use)
Appointment charging: (APP intelligent control of start and stop, can make an appointment for charging)
Adjustable billing: (Charging method can be adjusted according to time, power and cost)
Data visualization: (real-time charging data can be viewed, export data report)
Parameters
| Electrical indicators | Parameters |
| Input Voltage | 220VAC+15% |
| Input frequency | 50Hz |
| Rated power | 7kW |
| Metering accuracy | 1.0Level |
| Output Voltage | 220VAC |
| Maximum output current | 32A |
| Standby power consumption | <5W |
| Efficiency | 99% |
| Environmental indicators | Parameters |
| Noise | <40dB |
| Altitude | ≤2000m |
| Working Temperature | -30°C~+50°C |
| Working Humidity | 5%RH~95%RH non-condensing |
| Cooling method | natural cooling |
| Safety design | Parameters |
| Protection design | over/under voltage, short circuit, overload, over temperature, grounding, leakage, lightning protection, etc. |
| Safety standard | GB/T20234,GB/T18487,NB/T33002,NB/T 33008 |
| Protection level | IP66 |
| Installation and Interface | Parameters |
| Dimensions | 224mmX 128mmX 310mm |
| Weight | 4kg |
| Charging Interface | National standard 5m single shot |
| Installation | Pillar/wall mounted |
| Communication | Ethernet,4G,Wi-Fi, Bluetooth |
| OEM customization: | Logo, nameplate, user manual, length of charge gun cable |
Detailed picture
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
