Wall Box Fast Charging Station for Electric Car Rated Power 7 kW Rapid Charging Pile
  • name
  • name
  • name

Wall Box Fast Charging Station for Electric Car Rated Power 7 kW Rapid Charging Pile

MOQ: 1 Unit
Standard Packaging: Using Carton, fumigated wood pallet and steel pallet
Delivery Period: 45-60 Working days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Certification
CE
Model Number
J4
Product Name:
7 KW Charging Station
Input Voltage:
220VAC+15%
Input Frequency:
50Hz
Rated Power:
7kW
Metering Accuracy:
1.0 Level
Output Voltage:
220VAC
Maximum Output Current:
32A
Standby Power Consumption:
<5W
Efficiency:
99%
Operating Temperature:
-30°C~+50°C
Minimum Order Quantity:
1 Unit
Packaging Details:
Using Carton, fumigated wood pallet and steel pallet
Delivery Time:
45-60 Working days
Payment Terms:
T/T, L/C
Highlight:

wall Box Fast Charging Station

,

Rapid Charging Pile Fast Charging Station

,

Fast Charging Station 7 kW

Product Description

Wall Box Fast Charging Station for Electric Car Rated Power 7 kW Rapid Charging Pile





J4 General Introduction:
This product supports both wall-mounted and column-mounted installation, compatible with 99% new energy models, supports App intelligent control, comes with data management platform, can be customized and developed, suitable for residential parking spaces and small charging stations.





Product Features:
High-tech aesthetics: the product is designed by professional industrial design, simple and fashionable appearance with a sense of technology, equipped with three-color indicator light, real-time display of charging pile status.

Multiple safety protection: over-voltage protection, under-voltage protection, current limitation protection, short circuit protection, overload protection, over-temperature protection, grounding protection, leakage protection, full self-power-off function, intelligent temperature control and one-key emergency stop and other protection functions.





Intelligent control:
One charging post for two uses:(Charging pile can realize free for personal use and charge for commercial use)
Appointment charging: (APP intelligent control of start and stop, can make an appointment for charging)
Adjustable billing: (Charging method can be adjusted according to time, power and cost)
Data visualization: (real-time charging data can be viewed, export data report)





Parameters

Electrical indicators Parameters
Input Voltage 220VAC+15%
Input frequency 50Hz
Rated power 7kW
Metering accuracy 1.0Level
Output Voltage 220VAC
Maximum output current 32A
Standby power consumption <5W
Efficiency 99%
Environmental indicators Parameters
Noise <40dB
Altitude ≤2000m
Working Temperature -30°C~+50°C
Working Humidity 5%RH~95%RH non-condensing
Cooling method natural cooling
Safety design Parameters
Protection design over/under voltage, short circuit, overload, over temperature, grounding, leakage, lightning protection, etc.
Safety standard GB/T20234,GB/T18487,NB/T33002,NB/T 33008
Protection level IP54
Installation and Interface Parameters
Dimensions 208mmX 153mmX 418mm
Weight 4.5kg
Charging Interface National standard 5m single shot
Installation Pillar/wall mounted
Communication Ethernet,4G,Wi-Fi, Bluetooth
OEM customization: User manual, length of charge gun cable,ContentsProjector light, color

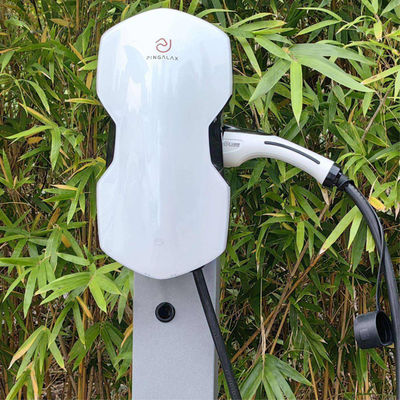

Detailed picture

Wall Box Fast Charging Station for Electric Car Rated Power 7 kW Rapid Charging Pile 0Wall Box Fast Charging Station for Electric Car Rated Power 7 kW Rapid Charging Pile 1





Why choose us?
1. Intelligent Control by App: Remotely control, no charging distance limit, benefit from the price difference, charge as you like. Reliable Product
2. Self-built laboratory:strict control standards, multiple factory testing to provide high-quality products.

3. Multiple BillingPlans:A variety of payment methods, which can be billed differently by time period. Digital platform supports data viewing and provide operational support.

4. ODM Customization:Customized development of product appearance,functions, and solutions.

5. Security:Eight security protections, national standard cable,TPE material insulation layer to ensure charging safety.
