| MOQ: | 1 Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |

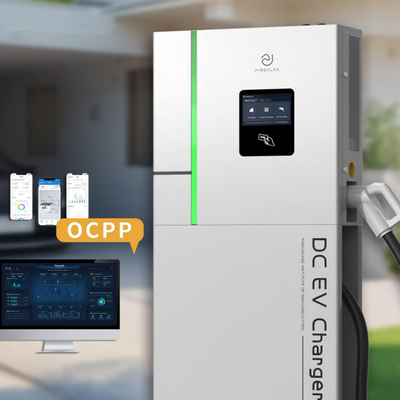

Enterprises and Public Institutions Charging Station Pile 30Kw 40Kw 50Kw Optional
Features:
Universal compatibility:
New, old international compatible design, according to the needs of different models automatically configure the charging voltage, to meet the charging needs of different models. Compatible with all international electric vehicles.
Efficient and convenient:
Utilizing the new charging rectifier module technology, the power factor is more than 0.99 and the efficiency is stable at more than 95%. Wide output voltage range, 150-1000V continuously adjustable, wide voltage and constant power output. 12V or 24V auxiliary power supply can be freely selected, and supports cyclic charging.
Compatible with multiple platforms:
Integrated Ethernet, 4G and WIFI communication methods, easy to connect to the background, real-time transmission of relevant data and equipment status.
Safe and reliable:
IP54 protection level, moisture-proof, water-proof, mold-proof, dust-proof, lightning-proof, flame retardant. With over-voltage, short-circuit, overload, over-temperature, grounding, leakage and other protection functions.
Intelligent and convenient:
User side: The user side can be intelligently controlled by APP, which supports the functions of charging network information query, charging pile status query, charging information query and submitting invoicing information.
Operation side: The operation side can go to the charging management cloud platform for station management, which has the functions of equipment monitoring, operation and maintenance management, remote upgrade, real-time data collection, etc., and at the same time, it is also equipped with the functions of economic data analysis, index accounting, invoicing and other management functions.
Parameters
| Electrical indicators | Parameters |
| Input Voltage | 380VAC+15% |
| Input frequency | 50Hz |
| Rated power | 30kW - 40kW |
| Output current (single shot) | 0~100A / 0~125A |
| Output Voltage | 200-1000VDC |
| Voltage stabilization accuracy | ≤±0.5% |
| Current stabilization accuracy | <±1% |
| Ripple factor | <±0.5% |
| Standby power consumption | <30W |
| Metering accuracy | Level 1.0 |
| Power Factor | >0.99(Above 50% load) |
| Harmonic content | <5%(Above 50% load) |
| Efficiency | 95% |
| Noise | <65dB |
| Environmental indicators | Parameters |
| Altitude | <2000m |
| Working Temperature | -30°C~+55°C |
| Working Humidity | 5%RH~95%RH |
| Cooling method | Forced air cooling |
| Safety design | Parameters |
| Protection design | over/under voltage, short circuit, overload, over temperature, grounding, leakage, lightning protection, etc. |
| Safety standard | GB/T20234,GB/T18487,GB/T27930,NB/T33001,NB/T 33008 |
| Protection level | IP54 |
| Installation and Interface | Parameters |
| Dimensions | 670mmX217mmX670mm |
| Weight | 60kg |
| Charging Interface | National standard 5m single shot |
| Auxiliary power supply | 12V&24V |
| Communication | Ethernet,4G,Wi-Fi |
| OEM customization: | Logo, nameplate, user manual, length of charge gun cable |
Detailed picture
Usage Scenario:
Family charging: installed in the family parking space, or garage, home can be charged, efficient use of free time charging, full power at any time to go.
Enterprises and public institutions charging: installed in enterprises, schools and other free public parking space charging occasions, according to the owner's charging needs, the configuration of different charging facilities and charging standards, efficient use of parking lots.
Intelligent Transportation Charging: Applicable to transportation road network, airports, railway stations, highway service areas and other key transportation routes, providing one-stop charging solutions to solve the problem of charging management.
Fleet Charging: For centralized charging of vehicles in urban bus, taxi and logistics fleets. Charging form can be set according to the type of vehicles, vehicles can be centralized charging in the electricity price trough time, reduce operating costs, intelligent management system can be provided to facilitate centralized management of vehicles.
Commercial real estate charging: applicable to business districts, hotels, communities, scenic spots and so on. Help consumers, visitors, tourists, etc. to solve the mileage anxiety, parking can be charged, improve the satisfaction of shopping mall users, compatible with the existing operating system to provide one-stop charging management services.
WHY CHOOSE US
1. Self- developed chip and management platform.
2. Landing of multiple oversea project.
3. 3000+ pcs weekly production capacity.
4. Strong R&D capability, more than 100 R&D personners.
5. Multilingual after-sales service.
6. International export certificates.
|
|
