High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults

High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults

MOQ: 1
Price: USD17,000.00-USD17,500.00 / Unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
SD, BIGST or Customized
Model Number
BGST-SD01-1
Motor:
AC Permanent Magnet Synchronous Motor
Motor Power:
Rated Power 40kW, Peak Power 80kW
Length:
4046mm
Width:
1737mm
Height:
1606mm
Battery:
329.4V
Charging Time:
10h (1h For Fast Charge)
Drive Type:
4x2 Rear Wheel Drive
Transmission:
Automatic
Braking System:
Front Vented Disc, Rear Disc
Project:
Car Assembly
Item:
Auto Assembling
Wheelbase:
2500mm
Wheel Track:
1500/1495mm
Mini Groundclearance:
125mm
Top Speed:
130km/h
Driving Range:
Around 300km (≧440 Constant Speed)
Minimum Order Quantity:
1
Price:
USD17,000.00-USD17,500.00 / Unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000 Units per Year
High Light:

4x2 electric vehicle assembly line

,

mini electric car 300km/ h

,

4x2 mini electric car for adults

Product Description





Economic High Speed Mini Electric Car 300km Mileage KD assembly





1. Description of the Economic High Speed Mini Electric Car 300km Mileage KD assembly:

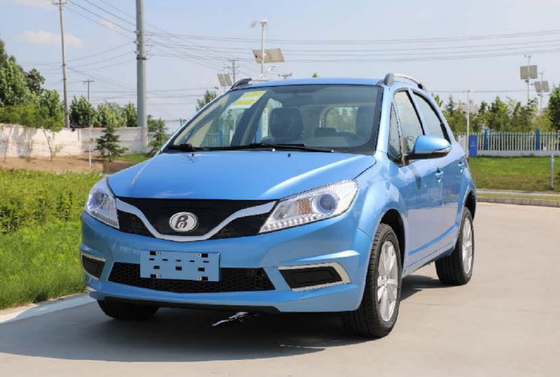

High-Speed Electric Vehicle - Model BGSD01 (Hatchback)
Main parameter
Model BGSD01
Class A class
Motor power and model Rated power 40kW, peak power 80kW, AC permanent magnet synchronous motor
Motor rated torque / peak torque (N·m) 128 / 240
Motor rated speed /maximum working speed (rpm) 3357 / 9000
Total electricity(kW*h) 44.5
Battery pack rated voltage (v) 329.4
Control system Brake energy recovery
Maximum speed (km/h) 130
Mileage for Single Charge (km) On Road ≧305
≧440 Constant Speed
Dimension and Weight
Length / Width / Height (mm) 4046 /1737 /1606
wheel-base (mm) 2500
Front / rear tyre base (mm) 1500 / 1495
Approach angle (°) 16.5
Departure angle (°) 22.6
Minimum ground clearance (mm) 125
Minimum turning radius (m) 4.8
Curb weight (kg) 1390
Maximum total weight (kg) 1765
Chassis specification
Suspension system (Front / Rear ) McPherson independent suspension / Longitudinal arm torsion beam semi independent suspension
Brake (Front / Rear ) Vented Disc / disc
Tyre specification 205 /55 R16
Aluminum alloy wheel hub
Single speed transmission
Security configuration
Child safety lock
Interior central locking
Child seat interface
Remote key
15 km/h Automatic latch 15km/h
Antilock brake system ABS
Electric Power Steering EPS
Tyre pressure monitoring device
Standard configuration
Global Positioning System GPS
Rear reversing radar
Front seat four way adjustment
Multifunction steering wheel
Bluetooth vehicle phone
External interface (USB / phone fast charging)
Reversing video
LED Daytime Running Light LED
Adjustable headlight height
Electrically-operated window
Electric adjustment of exterior rearview mirror
Manual electrical AC
Touchable center control large screen
Full LCD instrument panel
Manual anti dazzle interior rearview mirror
Note: √ Standard configuration. The configuration of this product is for reference only, and the final explanation right owned by Suda Company. Any change will be notified.



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 0



Some main advantages of assembling the Economic High Speed Mini Electric Car 300km Mileage KD assembly in local:

--- Save Customs Duty and other tax;

--- Save Shipping Cost;

--- Increase margin;

--- Improve competitiveness;

--- Develop your local industry;

--- Creat job opportunities.



2. Our service and our capability:



In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 1









3. Our Cooperation Mode:


A. Trade Agency



At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.


B. Turnkey Project/ Technology Transfer Mode



In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.


C. Joint Venture Mode


1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.







4. Requirements on our Cooperation Partners:



If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:



• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.



• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.



• Market channel: You’d better have your own car sales channel & network, automobile related business.



• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.



• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.







5. Process of our Auto KD Assembly Project:



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 2







6. Finally, this Auto KD Assembly Project is Profitable:



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 3



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 4



High Speed 4x2 Mini Electric Vehicle Assembly Line 300km/ H For Adults 5











If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!



Looking forward to your cooperation!!



Our Contact:



Tel No. (WeChat / Whatsapp / Viber): 18602364023
