| MOQ: | 1 |
| Price: | US$22,999.00-29,999.00 / unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10000 Units per Year |

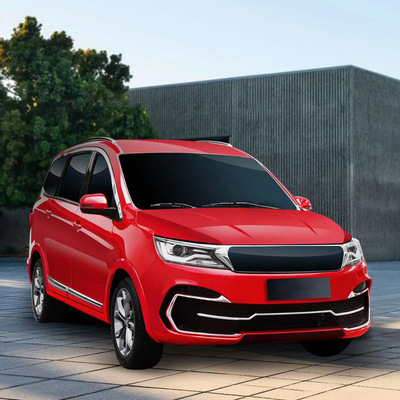

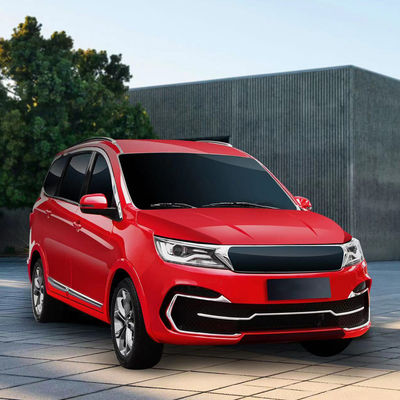

Electric 7-Seat MPV Widely Used for Car-Hailing Service
1. Description of the Electric 7-Seat MPV Widely Used for Car-Hailing Service:
| Electric MPV - BG EV400CW | ||||
| Version | Standard | Deluxe | VIP | Online Car-hailing/Taxi |
| Technical Parameters | ||||
| Length x Width x Height (mm) | 4650*1790*1760 | |||
| Wheelbase (mm) | 2765 | |||
| Wheel Track (front/rear, mm) | 1512/1532 | |||
| Min. Ground Clearance (fully loaded, mm) | 130 | |||
| Min. Turning Radius (m) | 5.55 | |||
| Max. Speed (km/h) | 120 | |||
| Curb Mass (kg) | 1650 | |||
| Total Mass (fully loaded, kg) | 2175 | |||
| Rated Loaded Mass (kg) | 525 | |||
| Driving mileage under working condition method (km) | 301 | |||
| Acceleration Time (0-50km/h, s) | ≤5 | |||
| Seats Number | 7 | |||
| Motor/Battery Parameters | ||||
| Motor Type | Permanent Magnet Synchronous Motor | |||
| Motor Model | TE1221A2 | |||
| System Input Voltage (DC) /V | 250-360-420 | |||
| Rated/Peak Power (KW) | 35/70 | |||
| Max. Rotating Speed (r/min) | 13000 | |||
| Max. Torque (Nm) | 200 | |||
| Drive Motor Number | 1 | |||
| Battery Type | Ternary Lithium Battery | |||
| Total Energy Storage of Energy Storage Device (KWH) | 45.69 | |||
| Rated Voltage of Battery System (V) | 352 | |||
| Fast Charging Interface/Slow Charging Interface | 2 /1 | |||
| Fast Charging Time (0-90%) | 15 minutes | |||
| Slow Charging Time | 6 hours | |||
| Charging Gun (including adapter) | ● | |||
| Transmission/Chassis/Steering/Wheels/Braking | ||||
| Transmission Mode | Electric vehicle single-speed gearbox | |||
| Number of Gears | 1 | |||
| Transmission Type | Fixed gear ratio gearbox | |||
| Drive Mode | Front-mounted, front wheel drive | |||
| Front/Rear Suspension System | McPherson Independent Suspension / Torsion Beam Non-Independent Suspension | |||
| Steering Type | Electric Power | |||
| Front/Rear Braking System | Ventilated Disc Type/Disc Type | |||
| Parking Brake Type | Manual parking | Electronic parking | Manual parking | |
| Front / Rear Tire | 205/55 R17 | |||
| Spare Tire | – | |||
| Wheel Rim | 17'' Aluminum Rim | 17'' Iron Rim | ||
| Air Pump (complimentary with car) | ● | |||
| Seats | ||||
| Leather seats | ● | ● | ● | ● |
| Manual four-way adjustment of driver's seat | ● | ● | ● | ● |
| Manual four-way adjustment of co-driver's seat | ● | ● | ● | ● |
| Front seats back pocket | ● | ● | ● | ● |
| Middle row 1+1 independent seats with armrests | ● | ● | ● | ● |
| Changeable flexible mid-row 2-people seats | ● | ● | ● | ● |
| Variable space third-row seats (foldable, upright flip) | ● | ● | ● | ● |
| Variable space third-row seats with middle seat belt changed to "7 seats" | ● | ● | ● | ● |
| Two sets of ISOFIX child safety seat interfaces | ● | ● | ● | ● |
| 2nd-row electric leg rests, front and rear backrest adjustment | – | – | ● | – |
| Safety Assistance/Control Configuration | ||||
| Front dual airbags | ● | ● | ● | ● |
| All-metal enclosed load-bearing vehicle body | ● | ● | ● | ● |
| High strength four side door anti-collision lever | ● | ● | ● | ● |
| Reversing radar (3) | ● | ● | ● | ● |
| Reversing image | ● | ● | ● | ● |
| CCS cruise control | - | - | ● | - |
| ECO power saving mode | ● | ● | ● | ● |
| Braking energy recovery system | ● | ● | ● | ● |
| LED high brake light | ● | ● | ● | ● |
| Daytime running light | ● | ● | ● | ● |
| Rear fog lamp | ● | ● | ● | ● |
| Three-point safety belt for all seats (main and co-pilot safety belt reminder device) | ● | ● | ● | ● |
| ABS+EBD | ● | ● | ● | ● |
| Real-time tire pressure monitoring TPMS | ● | ● | ● | ● |
| Fatigue driving warning | – | ● | ● | – |
| Automated driving assistance L2.0 | – | – | Optional | – |
| Exterior Configurations | ||||
| Luggage rack | Optional | Optional | Optional | ● |
| Rear wiper | ● | ● | ● | ● |
| Silver spray painted inside handle | ● | ● | ● | ● |
| Chrome-plated front grille | ● | ● | ● | ● |
| Same color exterior door handle | ● | ● | ● | ● |
| Exterior water baffle decorative strip | ● | ● | ● | ● |
| Privacy Glass (third row) | ● | ● | ● | ● |
| Body paint-Metal paint (sapphire red, diamond blue, titanium gray) | ● | ● | - | ● |
| Body paint-Aurora paint (gradient white) | Optional (+US$800.00) | Optional (+US$800.00) | ● | - |
| Interior Configurations | ||||
| Leather multi-functional steering wheel | ● | ● | ● | ● |
| LCD instrument screen | ● (Non-full LCD) | ● (Full LCD) | ● (Full LCD) | ● (Non-full LCD) |
| LCD instrument screen size | 10.25'' | 10.25'' | 10.25'' | 10.25'' |
| Electric heating and cooling air conditioning (front and rear independent adjustment) | ● | ● | ● | ● |
| First row seat rear warm air outlet | - | - | ● | - |
| Anti-glare inner rearview mirror | ● | ● | ● | ● |
| Front and middle door storage box | ● | ● | ● | ● |
| Integrated multi-functional armrest box | ● | ● | ● | ● |
| Driver's sun visor (with ticket holder) | ● | ● | ● | ● |
| Co-driver's sun visor (with make-up mirror) | ● | ● | ● | ● |
| Interior safety handrail | ● | ● | ● | ● |
| PVC carpet | ● | ● | ● | ● |
| Whole vehicle fully soft decorated | – | ● (half covered) | ● | – |
| Headrest embroidery custom made | – | – | ● | – |
| Luxury two-color interior fully covered | ● | ● | ● | ● |
| Door panel, interior panel, central control panel | piano baking lacquer | |||
| Comfortable Configuration/Intelligent Interconnection/Entertainment System | ||||
| Intelligent remote control lock (including central control function) | ● | ● | ● | ● |
| Keyless entry (driver's door) | - | ● | ● | - |
| One-button start | ● | ● | ● | ● |
| Driving Recorder | Optional | Optional | Optional | – |
| Quick charge wireless charging (including bracket) is complimentary with the car | – | ● | ● | – |
| Front USB interface | ● | ● | ● | ● |
| 2nd-row two quick charge USB interfaces | – | ● | ● | ● |
| Rear door electronic lock | ● | ● | ● | ● |
| Four door glass electric lift | ● | ● | ● | ● |
| Electrically adjust external rearview mirror | ● | ● | ● | – (manual) |
| Electric defrosting of rear air window | ● | ● | ● | ● |
| Electric tail gate | – | ● | ● | – |
| Central control large screen (15.6") | ● | ● | ● | ● |
| GPS navigation | ● | ● | ● | ● |
| Bluetooth hands-free | ● | ● | ● | ● |
| High fidelity surround four speaker whole area sound system | ● | ● | ● | – (two) |
| Built-in antenna | ● | ● | ● | ● |
| Car networking | – | – | ● | – |
Some main advantages of assembling the Electric 7-Seat MPV Widely Used for Car-Hailing Service in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): +86-15223551381
