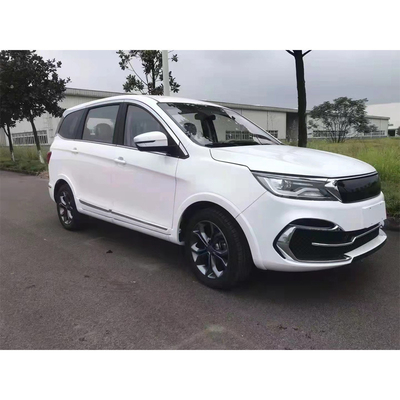

ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge

ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge

MOQ: 1
Price: US$22,999.00-29,999.00 / unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 10000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
CW, BIGST or Customized
Model Number
BGST-CW400-2
Motor:
Permanent Magnet Synchronous Motor
Motor Power:
Rated Power 35kW, Peak Power 70kW
Length:
4650mm
Width:
1790mm
Height:
1760mm
Battery Voltage:
352V
Charging Time:
6h (15 Minutes For Fast Charge)
Drive Type:
4x2 Front Wheel Drive
Transmission:
Automatic
Braking System:
Front Ventilated Disc, Rear Disc
Project:
Car Assembly
Item:
Auto Assembling
Wheelbase:
2765mm
Wheel Track:
1512/1532mm
Mini Groundclearance:
130mm
Top Speed:
120km/h
Driving Range:
301km
Battery Power Storage:
45.69KWH
Minimum Order Quantity:
1
Price:
US$22,999.00-29,999.00 / unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000 Units per Year
High Light:

ODM electric vehicle assembly plant

,

Electric Car Assembly Line 4x2

,

MPV taxi station wagon

Product Description





Customized Electric MPV Taxi Vehicle More Practical and Economic Than Fuel Taxi Car











1. Description of the Customized Electric MPV Taxi Vehicle More Practical and Economic Than Fuel Taxi Car:



Electric MPV - BG EV400CW
Version Standard Deluxe VIP Online Car-hailing/Taxi
Technical Parameters
Length x Width x Height (mm) 4650*1790*1760
Wheelbase (mm) 2765
Wheel Track (front/rear, mm) 1512/1532
Min. Ground Clearance (fully loaded, mm) 130
Min. Turning Radius (m) 5.55
Max. Speed (km/h) 120
Curb Mass (kg) 1650
Total Mass (fully loaded, kg) 2175
Rated Loaded Mass (kg) 525
Driving mileage under working condition method (km) 301
Acceleration Time (0-50km/h, s) ≤5
Seats Number 7
Motor/Battery Parameters
Motor Type Permanent Magnet Synchronous Motor
Motor Model TE1221A2
System Input Voltage (DC) /V 250-360-420
Rated/Peak Power (KW) 35/70
Max. Rotating Speed (r/min) 13000
Max. Torque (Nm) 200
Drive Motor Number 1
Battery Type Ternary Lithium Battery
Total Energy Storage of Energy Storage Device (KWH) 45.69
Rated Voltage of Battery System (V) 352
Fast Charging Interface/Slow Charging Interface 2 /1
Fast Charging Time (0-90%) 15 minutes
Slow Charging Time 6 hours
Charging Gun (including adapter)
Transmission/Chassis/Steering/Wheels/Braking
Transmission Mode Electric vehicle single-speed gearbox
Number of Gears 1
Transmission Type Fixed gear ratio gearbox
Drive Mode Front-mounted, front wheel drive
Front/Rear Suspension System McPherson Independent Suspension / Torsion Beam Non-Independent Suspension
Steering Type Electric Power
Front/Rear Braking System Ventilated Disc Type/Disc Type
Parking Brake Type Manual parking Electronic parking Manual parking
Front / Rear Tire 205/55 R17
Spare Tire
Wheel Rim 17'' Aluminum Rim 17'' Iron Rim
Air Pump (complimentary with car)
Seats
Leather seats
Manual four-way adjustment of driver's seat
Manual four-way adjustment of co-driver's seat
Front seats back pocket
Middle row 1+1 independent seats with armrests
Changeable flexible mid-row 2-people seats
Variable space third-row seats (foldable, upright flip)
Variable space third-row seats with middle seat belt changed to "7 seats"
Two sets of ISOFIX child safety seat interfaces
2nd-row electric leg rests, front and rear backrest adjustment
Safety Assistance/Control Configuration
Front dual airbags
All-metal enclosed load-bearing vehicle body
High strength four side door anti-collision lever
Reversing radar (3)
Reversing image
CCS cruise control - - -
ECO power saving mode
Braking energy recovery system
LED high brake light
Daytime running light
Rear fog lamp
Three-point safety belt for all seats (main and co-pilot safety belt reminder device)
ABS+EBD
Real-time tire pressure monitoring TPMS
Fatigue driving warning
Automated driving assistance L2.0 Optional
Exterior Configurations
Luggage rack Optional Optional Optional
Rear wiper
Silver spray painted inside handle
Chrome-plated front grille
Same color exterior door handle
Exterior water baffle decorative strip
Privacy Glass (third row)
Body paint-Metal paint (sapphire red, diamond blue, titanium gray) -
Body paint-Aurora paint (gradient white) Optional (+US$800.00) Optional (+US$800.00) -
Interior Configurations
Leather multi-functional steering wheel
LCD instrument screen ● (Non-full LCD) ● (Full LCD) ● (Full LCD) ● (Non-full LCD)
LCD instrument screen size 10.25'' 10.25'' 10.25'' 10.25''
Electric heating and cooling air conditioning (front and rear independent adjustment)
First row seat rear warm air outlet - - -
Anti-glare inner rearview mirror
Front and middle door storage box
Integrated multi-functional armrest box
Driver's sun visor (with ticket holder)
Co-driver's sun visor (with make-up mirror)
Interior safety handrail
PVC carpet
Whole vehicle fully soft decorated ● (half covered)
Headrest embroidery custom made
Luxury two-color interior fully covered
Door panel, interior panel, central control panel piano baking lacquer
Comfortable Configuration/Intelligent Interconnection/Entertainment System
Intelligent remote control lock (including central control function)
Keyless entry (driver's door) - -
One-button start
Driving Recorder Optional Optional Optional
Quick charge wireless charging (including bracket) is complimentary with the car
Front USB interface
2nd-row two quick charge USB interfaces
Rear door electronic lock
Four door glass electric lift
Electrically adjust external rearview mirror – (manual)
Electric defrosting of rear air window
Electric tail gate
Central control large screen (15.6")
GPS navigation
Bluetooth hands-free
High fidelity surround four speaker whole area sound system – (two)
Built-in antenna
Car networking



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 0





Some main advantages of assembling the Customized Electric MPV Taxi Vehicle More Practical and Economic Than Fuel Taxi Car in local:

--- Save Customs Duty and other tax;

--- Save Shipping Cost;

--- Increase margin;

--- Improve competitiveness;

--- Develop your local industry;

--- Creat job opportunities.





2. Our service and our capability:



In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 1









3. Our Cooperation Mode:


A. Trade Agency



At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.


B. Turnkey Project/ Technology Transfer Mode



In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.


C. Joint Venture Mode


1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.







4. Requirements on our Cooperation Partners:



If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:



• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.



• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.



• Market channel: You’d better have your own car sales channel & network, automobile related business.



• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.



• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.







5. Process of our Auto KD Assembly Project:



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 2







6. Finally, this Auto KD Assembly Project is Profitable:



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 3



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 4



ODM Electric Car Assembly Line 4x2 MPV Taxi Station Wagon 6h Charge 5











If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!



Looking forward to your cooperation!!



Our Contact:

Lucky Peng (Ms.)

China Big S & T Dev (Group) Co., Limited

Website: www.auto-assemblyplants.com

Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;

Skype: chongqingbig

Tel No. (WeChat / Whatsapp / Viber): +86-15223551381
