|Place of Origin:||CHINA|
|Brand Name:||SD, BIGST or Customized|
|Minimum Order Quantity:||1|
|Packaging Details:||Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD|
|Delivery Time:||60 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||10000 Units per Year|
|Motor:||AC Permanent Magnet Synchronous Motor||Motor Power:||Rated Power 40kW, Peak Power 80kW|
|Charging Time:||10h (1h For Fast Charge)||Drive Type:||4x2 Rear Wheel Drive|
|Transmission:||Automatic||Braking System:||Front Vented Disc, Rear Disc|
|Project:||Car Assembly||Item:||Auto Assembling|
|Mini Groundclearance:||125mm||Top Speed:||130km/h|
|Driving Range:||Around 300km (≧440 Constant Speed)|
40kW Electric Car Assembly Line,
130km/h Electric Car Assembly Line,
Auto Assembling 4x2 Electric Car

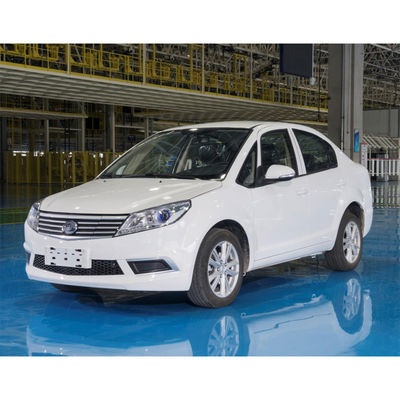

High Speed Electric Car CE available for taxi and car-sharing project with SKD/CKD assembly
1. Description of the High Speed Electric Car CE available for taxi and car-sharing project:
|High-Speed Electric Vehicle - Model BGSA0a1 (Sedan)|
|Motor power and model||Rated power 40kW, peak power 80kW, AC permanent magnet synchronous motor|
|Motor rated torque / peak torque (N·m)||128 / 240|
|Motor rated speed /maximum working speed (rpm)||3357 / 9000|
|Battery pack rated voltage (v)||329.4|
|Control system||Brake energy recovery|
|Maximum speed (km/h)||130|
|Mileage for Single Charge (km)||On Road ≧305|
|≧440 Constant Speed|
|Dimension and Weight|
|Length / Width / Height (mm)||4417 /1737 /1576|
|Front / rear tyre base (mm)||1500 / 1495|
|Approach angle (°)||16.5|
|Departure angle (°)||19.5|
|Minimum ground clearance (mm)||125|
|Minimum turning radius (m)||4.8|
|Curb weight (kg)||1390|
|Maximum total weight (kg)||1765|
|Suspension system (Front / Rear )||McPherson independent suspension / Longitudinal arm torsion beam semi independent suspension|
|Brake (Front / Rear )||Vented Disc / disc|
|Tyre specification||205 /55 R16|
|Aluminum alloy wheel hub||√|
|Single speed transmission||√|
|Child safety lock||√|
|Interior central locking||√|
|Child seat interface||√|
|15 km/h Automatic latch 15km/h||√|
|Antilock brake system ABS||√|
|Electric Power Steering EPS||√|
|Tyre pressure monitoring device||√|
|Global Positioning System GPS||√|
|Rear reversing radar||√|
|Front seat four way adjustment||√|
|Multifunction steering wheel||√|
|Bluetooth vehicle phone||√|
|External interface (USB / phone fast charging)||√|
|LED Daytime Running Light LED||√|
|Adjustable headlight height||√|
|Electric adjustment of exterior rearview mirror||√|
|Manual electrical AC||√|
|Touchable center control large screen||√|
|Full LCD instrument panel||√|
|Manual anti dazzle interior rearview mirror||√|
|Note: √ Standard configuration. The configuration of this product is for reference only, and the final explanation right owned by Suda Company. Any change will be notified.|
Some main advantages of assembling the High Speed Electric Car CE available for taxi and car-sharing project in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
