MOQ: | 1 |
Price: | USD5,299.00-USD5,699.00 / Unit |
Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
Delivery Period: | 60 working days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 10000 Units per Year |
City SUV Car Assembly Line for 800cc Petrol RHD SUV in SKD/CKD to Save Cost
Six main advantages of assembling the City SUV Car 800cc Petrol RHD SUV in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.

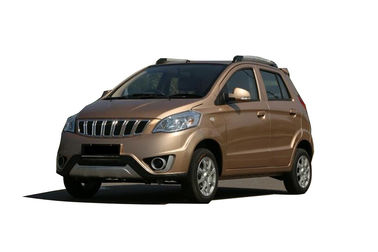

1. Description of the City SUV Car 800cc Petrol RHD SUV:
Mini City SUV Car - Jeep Type | ||
Body Type | ||
5-Door mini suv | ● | |
Body structure | Monocoque car body type | |
Dimension (mm) | ||
Overall length (mm) | 3460 mm | |
Overall width (mm) | 1560 mm | |
Overall height (mm) | 1470 mm | |
Wheelbase (mm) | 2260 mm | |
Wheel Tread (mm) | Front | 1360 mm |
Rear | 1360 mm | |
Front overhang (mm) | 675 mm | |
Rear overhang (mm) | 525 mm | |
Minimum Turning Radius (m) | ≤5.0 m | |
Curb Weight (kg) | 750 kg (approximately) | |
Min. Groundclearance (mm) | 120 mm (140 mm if half loaded) | |
Max Speed (Km/h) | 80-90 km/h (approximately) | |
NEDC Driving Mileage (Km) | 600 km (approximtely) | |
Fuel consumption (L/100km) | 4.5 L | |
Max. Gradability ( % ) | ≥20% | |
Approach / Departure angle (°) | 20/32 | |
Engine | ||
Type | 4-stroke, water cooled, single overhead camshaft (SOHC), Electronically controlled fuel injection (EFI) | |
Emission standard | Euro I - Euro IV | |
Number of cylinders | 3 | |
Displacement | 796cc | |
Bore x Stroke | 68.5 x 72 | |
Max. Power (Ps) | 39.56 (29.5KW)/5500 | |
Maximum torque (N.m/rpm) | 60.5/3500-4500 | |
Compression ratio | 9.4 | |
Air Intake type | Naturally aspirated | |
Fuel | Gasoline | |
Type of oil supply | Multi-Point Electronic Fuel Injection | |
Fuel type / No. # | Petrol / 92# | |
Transmission | ||
Gearbox | 4 gears + reverse gear | |
Chassis | ||
Steering System | Standard with vacuum power (●); Optional with steering back (○) | |
Parking System | Pull-type hand brake | |
Suspension System | Front | Mcpherson type independent front suspension |
Rear | Longitudinal arm type with transverse thrust bar non-semi-independent rear suspension | |
Braking System | Front | Disc brake |
Rear | Drum brake | |
Driving Mode | Front-engine, Front-wheel drive | |
Tyre Specification | 155/65 R13 | |
Capacity | ||
Seating capacity | 4 | |
Fuel tank capacity | 30L | |
Version Availlable | Standard Version | Luxury Version |
Comfort | ||
Heater | ● | ● |
Air conditioner | — | ● |
Safety | ||
Front three-point seat belt | ● | ● |
Rear three-point seat belt | — | ● |
Driver seat belt's non-fastening reminder | ● | ● |
Steering lock | ● | ● |
Rear doors with Child safety lock | ● | ● |
ISOFIX Device for Children seat | ● | ● |
ABS | — | ● |
Interior | ||
Interactive Multimedia/Entertainment System | 7 inch display screen | 7 inch display screen |
Interface for SD+USB | ● | ● |
4 Speakers (high & low pitch) | ● | ● |
Sun visor (both sides) | ● | ● |
Room lamp | ● | ● |
Knitted Fabric seats | ● | — |
Leather seats | — | ● |
Liftable seats | — | ● |
Manual adjustable driver & co-driver seats | ● | ● |
Reclining & sliding front seats | ● | ● |
Split type front seat headrest (adjustable up and down) | ● | ● |
Entirely reversible rear seats | ● | ● |
Injection molding door trim | ● | ● |
Part fabric door trim | — | — |
Assist grip | ● | ● |
Glove compartment | ● | ● |
Coin receptacle | — | — |
Interior rear view mirror | ● | ● |
Front ashtray | — | — |
Rear Seat Headrest | ● | ● |
One Cup Holder | ● | ● |
Front top light | ● | ● |
PET Needle-pounched carpet | ● | ● |
Split type stabilizer tail | ● | ● |
Exterior | ||
Halogen front headlamps | ● | ● |
LED Rear Combination Taillight | ● | ● |
Coloured front & rear bumper | ● | ● |
Foldable outside mirrors (both sides) | ● | ● |
Lockable fuel lid | ● | ● |
Back door lock | ● | ● |
Outer door handle (same color as car body) | ● | ● |
Steel wheel rim + Wheel trim cover | ● | — |
Aluminium wheel rim | — | ● |
Reverse image | ● | ● |
Windshield wiper | ● | ● |
License plate lamp | ● | ● |
Front mounted antenna | ● | ● |
Luggage rack | — | ● |
Side welcome pedal | — | ● |
Functional Devices | ||
Steering System | Vacuum power steering | Vacuum power steering + Steering Back |
Electric Power Steering | ● | ● |
Inside Fuel Lid Opener | ● | ● |
Four-door electric glass lifter | ● | ● |
Central Locking | ● | ● |
Foldable Remote Key | ● | ● |
Rear fog Light | ● | ● |
High Mounted LED Stop Light | ● | ● |
Electric horn | ● | ● |
Remark: 1. "●" standard, "○" optional, "—" not available; 2. All subject to the final agreement by both parties. |
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): 15223551381
