| MOQ: | 1 |
| Price: | USD9,399.00-USD10,699.00 / Unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100000 Units per Year |

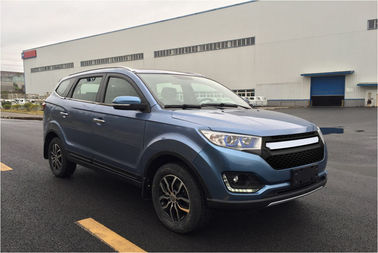

Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available For Local Assembly Reduce Duty Freight
1. Description of the Rear Wheel Drive Seven Passenger SUV:
| Model BS371G Middle SUV | |||||||
| Category | SUV 1.5L | SUV 1.8L | |||||
| Vehicle model code | BS371G15M | BS371G15A | BS371G18M | BS371G18A | |||
| Dimension Parameters | |||||||
| Overall dimension of complete vehicle: L x W x H (mm) | 4440*1760*1730 | 4480*1770*1730 | |||||
| Max. speed (km/h) | 160 | 160 | |||||
| 100 km fuel consumption (L) | 7.6 | 7.6 | 7.9 | 8 | |||
| Wheelbase (mm) | 2720 | 2720 | |||||
| Front/rear tread (mm) | 1470/1490 | 1470/1490 | |||||
| Front/rear suspension (mm) | 745/975 | 745/945 | |||||
| Complete vehicle curb mass (kg) | 1400 | 1440 | 1440 | ||||
| Max. total mass (kg) | 1990 | 1990 | |||||
| Chassis model, category name | Frameless body | Frameless body | |||||
| Number of doors (for passengers and driver) | 4 | 4 | |||||
| Number of seats | 7 | 7 | |||||
| Fuel tank capacity (L) | 50 | 50 | |||||
| Fuel grade (GB17930-1999) | 93# premium unleaded gasoline | 93# premium unleaded gasoline | |||||
| Min. ground clearance (mm) | 192 | 192 | |||||
| Min. turning diameter (m) | ≤10.8 | ≤10.8 | |||||
| Approach angle/departure angle (°) | 26/24 | 26/24 | |||||
| Max. climbing capacity (%) | ≥30 | ≥30 | |||||
| Engine & transmission Parameters | |||||||
| Engine model | LF475Q-h (1.5DVVT) | LFB479Q-h (1.8VVT) | |||||
| Displacement (L) | 1.485 | 1.794 | |||||
| Type | 4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine | 4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine | |||||
| Valve structure | Overhead camshaft | Overhead camshaft | |||||
| Engine capacity compression ratio | 10.5:1 | 10:1 | |||||
| Rated power/speed [kW/(r/min)] | 80/5800 | 98/6000 | |||||
| Max. torque [N·m/(r/min)] | 145/3500-4200 | 168/4200-4400 | |||||
| Engine oil supply method | Multi-point EFI | Multi-point EFI | |||||
| Electronic fuel injection system | UAES electronic injection system | UAES electronic injection system | |||||
| Material of cylinder cover | Aluminium alloy | Aluminium alloy | |||||
| Material of cylinder block | Cast iron | Cast iron | |||||
| Emission standard | State V | State V | |||||
| Transmission type | Manual transmission | Automatic Transmission | Manual transmission | Automatic Transmission | |||
| Number of gears | 5MT | 4AT | 5MT | 5AT | |||
| Chassis & brake Parameters | |||||||
| Drive mode | FR (Front mounted rear wheel drive) | FR (Front mounted rear wheel drive) | |||||
| Drive type | 4×2 | 4×2 | |||||
| Front overhanging type | Macpherson independent overhanging | Macpherson independent overhanging | |||||
| Rear overhanging type | Guide rod non-independent rear suspension | Guide rod non-independent rear suspension | |||||
| Chassis structure | Integral body construction | Integral body construction | |||||
| Front/rear tire specification | 205/65R16 | 205/65R16 | |||||
| Spare tire specification | 205/65R16 | 205/65R16 | |||||
| Front brake type | Disc-type | Disc-type | |||||
| Rear brake type | Disc-type | Disc-type | |||||
| Parking brake type | Hand brake | Hand brake | |||||
| Configurations | |||||||
| Vehicle Model & Type | BS371G15M (5MT) | BS371G15A (4AT) | BS371G18M (5MT) | BS371G18A (5AT) | |||
| Comfortable (SX) | Luxury (EX) | Intelligent (TX) | Superior (VIP) | Comfortable (SX) | Luxury (EX) | Superior (VIP) | |
| Engine | 1.5DVVT | 1.5DVVT | 1.5DVVT | 1.5DVVT | 1.8VVT | 1.8VVT | 1.8VVT |
| Transmission | 5MT | 5MT | 4AT | 4AT | 5MT | 5MT | 5AT |
| Tire specification (205/65 R16) | ● | ● | ● | ● | ● | ● | ● |
| Steel Wheel rim (16×6J) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Aluminum alloy wheel rim (16×6J) | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Electronic throttle pedal | ● | ● | ● | ● | ● | ● | ● |
| Front-disc rear-disc brake system | ● | ● | ● | ● | ● | ● | ● |
| Macpherson independent overhanging | ● | ● | ● | ● | ● | ● | ● |
| Guide rod non-independent rear suspension | ● | ● | ● | ● | ● | ● | ● |
| ABS+EBD | ● | ● | ● | ● | ● | ● | ● |
| Hydraulic power steering system | ● | ● | — | — | — | — | — |
| Electric power steering (EPS) | — | — | ● | ● | ● | ● | ● |
| Driver air bag | ● | ● | ● | ● | ● | ● | ● |
| Passenger air bag | ● | ● | ● | ● | ● | ● | ● |
| Two-regulating steering column | ● | ● | ● | ● | ● | ● | ● |
| Crumple type steering column | ● | ● | ● | ● | ● | ● | ● |
| Engine immobilizer | ○ | ● | ● | ● | ○ | ● | ● |
| Anti-theft alarm | ● | ● | ● | ● | ● | ● | ● |
| Reversing camera | — | ● | ● | ● | — | ● | ● |
| Reversing radar | ● | ● | ● | ● | ● | ● | ● |
| Central lock inside vehicle | ● | ● | ● | ● | ● | ● | ● |
| Remote key | 2 | — | — | — | 2 | — | — |
| Intelligent key | — | 2 | 2 | 2 | — | 2 | 2 |
| Electric unlock of back door | ● | ● | ● | ● | ● | ● | ● |
| Trunk cover with inhaul cable | ● | ● | ● | ● | ● | ● | ● |
| Misoperation lock prevention | ● | ● | ● | ● | ● | ● | ● |
| 20km/h automatical lock | ● | ● | ● | ● | ● | ● | ● |
| Middle door child lock | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger seatbelts | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger pretensioning seatbelts | — | ○ | ○ | ○ | — | ○ | ○ |
| Three-point seatbelts, middle-row seats | ● | ● | ● | ● | ● | ● | ● |
| Three-point seatbelts, rear-row seats | ● | ● | ● | ● | ● | ● | ● |
| Driver's seatbelt unfastened warning | ● | ● | ● | ● | ● | ● | ● |
| Front passenger's seatbelt unfastened warning | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Safety handle (5) | ● | ● | ● | ● | ● | ● | ● |
| Headlamp/door unclosed alarm | ● | ● | ● | ● | ● | ● | ● |
| Hagolen front combination lamp | ● | ● | ● | ● | ● | ● | ● |
| LED side turning lamp (integrated on the exterior rear mirror) | ● | ● | ● | ● | ● | ● | ● |
| Front fog lamp | ● | ● | ● | ● | ● | ● | ● |
| Daytime running lamp | ● | ● | ● | ● | ● | ● | ● |
| Rear combination lamp | ● | ● | ● | ● | ● | ● | ● |
| Rear fog lamp+reflex reflector | ● | ● | ● | ● | ● | ● | ● |
| High mount stop lamp | ● | ● | ● | ● | ● | ● | ● |
| Front reading lamp | ● | ● | ● | ● | ● | ● | ● |
| Trunk lamp | ● | ● | ● | ● | ● | ● | ● |
| Door lamp | ● | ● | ● | ● | ● | ● | ● |
| TFT combination instrument | ● | ● | ● | ● | ● | ● | ● |
| MP5+one-way interconnection (IOS, ANDROID) | ● | ● | ● | ● | ● | ● | ● |
| Bluetooth system | ● | ● | ● | ● | ● | ● | ● |
| USB connector | ● | ● | ● | ● | ● | ● | ● |
| 6-horn loudspeaker system | ● | ● | ● | ● | ● | ● | ● |
| Body-color front bumper | ● | ● | ● | ● | ● | ● | ● |
| Body-color rear bumper | ● | ● | ● | ● | ● | ● | ● |
| Front grille with color seperation | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated outer handle | ● | ● | ● | ● | ● | ● | ● |
| Body-color power exterior rear mirror (with turning lamp) | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated weather strip | ● | ● | ● | ● | ● | ● | ● |
| Front wheel fender | ● | ● | ● | ● | ● | ● | ● |
| Rear wheel fender | ● | ● | ● | ● | ● | ● | ● |
| Aluminum alloy baggage holder | ● | ● | ● | ● | ● | ● | ● |
| Body-color rear spoiler | ● | ● | ● | ● | ● | ● | ● |
| Front wiper | ● | ● | ● | ● | ● | ● | ● |
| Rear wiper(with washing) | ● | ● | ● | ● | ● | ● | ● |
| Boneless wiper | ● | ● | ● | ● | ● | ● | ● |
| Lower deflector (engine lower fender apron) | ● | ● | ● | ● | ● | ● | ● |
| Exterior body kit | ● | ● | ● | ● | ● | ● | ● |
| Engine trim cover (full cover) | ● | ● | ● | ● | ● | ● | ● |
| Treadplate (left & right) | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Driver sunvisor (with bill fold) | ● | ● | ● | ● | ● | ● | ● |
| Front passenger sunvisor (with vanity mirror) | ● | ● | ● | ● | ● | ● | ● |
| A-column decorative board | ● | ● | ● | ● | ● | ● | ● |
| B-column decorative board | ● | ● | ● | ● | ● | ● | ● |
| Injection molding trim panel | ● | ● | ● | ● | ● | ● | ● |
| Door storage box | ● | ● | ● | ● | ● | ● | ● |
| UV piano lacquer center console panel | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated interior door handle | ● | ● | ● | ● | ● | ● | ● |
| Multi-function steering wheel | ● | ● | ● | ● | ● | ● | ● |
| Hard headlining | ● | ● | ● | ● | ● | ● | ● |
| Footrest | ● | ● | ● | ● | ● | ● | ● |
| Electric dual-evaporator air conditioner | ● | ● | ● | ● | ● | ● | ● |
| Vehicle-mounted 12V power interface | ● | ● | ● | ● | ● | ● | ● |
| Cigarette lighter | ● | ● | ● | ● | ● | ● | ● |
| Movable ashtray | ● | ● | ● | ● | ● | ● | ● |
| Tool kit (warning sign, towing hook, jack, tool) | ● | ● | ● | ● | ● | ● | ● |
| Driver 6-way seat with manual adjustment | ● | ● | ● | ● | ● | ● | ● |
| Front passnger 4-way seat with manual adjustment | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger seats with heating function | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Middle-row seat backrest with angle adjustment and flat laying | ● | ● | ● | ● | ● | ● | ● |
| ISOFIX | ● | ● | ● | ● | ● | ● | ● |
| Rear bench seat (for 2 people, detachable, foldable and turnable) | ● | ● | ● | ● | ● | ● | ● |
| Leather seat | ● | ● | ● | ● | ● | ● | ● |
| Carriage bag, front seat | ● | ● | ● | ● | ● | ● | ● |
| Front door electric window regulator | ● | ● | ● | ● | ● | ● | ● |
| Middle door electric window regulator | ● | ● | ● | ● | ● | ● | ● |
| Rear tempered-glass windshield with defogging function | ● | ● | ● | ● | ● | ● | ● |
| Common glass | ● | — | — | — | ● | — | — |
| Privacy glass | — | ● | ● | ● | — | ● | ● |
| Anti-dazzling interior rearview mirror | ● | ● | ● | ● | ● | ● | ● |
| Color-separation interior trim | ● | ● | ● | ● | ● | ● | ● |
| 3M black foil | ● | ● | ● | ● | ● | ● | ● |
| 3M sound absorption cotton | ● | ● | ● | ● | ● | ● | ● |
| One-button anti-pinch power sunroof | — | ● | ● | ● | — | ● | ● |
| Button start+keyless entry | — | ● | ● | ● | — | ● | ● |
| Automobile data recorder | ○ | ○ | ○ | ● | ○ | ○ | ● |
| Tire Pressure Monitor System (TPMS) | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| ESP | ○ | ○ | — | ● | ● | ● | ● |
| Middle seats with sliding function | — | — | — | — | ● | ● | ● |
Six main advantages of assembling the Rear Wheel Drive Seven Passenger SUV in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase profit margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities for local citizen.
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Chongqing Big Technology Co., Ltd
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): 15223551381
|
|
| MOQ: | 1 |
| Price: | USD9,399.00-USD10,699.00 / Unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100000 Units per Year |
Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available For Local Assembly Reduce Duty Freight
1. Description of the Rear Wheel Drive Seven Passenger SUV:
| Model BS371G Middle SUV | |||||||
| Category | SUV 1.5L | SUV 1.8L | |||||
| Vehicle model code | BS371G15M | BS371G15A | BS371G18M | BS371G18A | |||
| Dimension Parameters | |||||||
| Overall dimension of complete vehicle: L x W x H (mm) | 4440*1760*1730 | 4480*1770*1730 | |||||
| Max. speed (km/h) | 160 | 160 | |||||
| 100 km fuel consumption (L) | 7.6 | 7.6 | 7.9 | 8 | |||
| Wheelbase (mm) | 2720 | 2720 | |||||
| Front/rear tread (mm) | 1470/1490 | 1470/1490 | |||||
| Front/rear suspension (mm) | 745/975 | 745/945 | |||||
| Complete vehicle curb mass (kg) | 1400 | 1440 | 1440 | ||||
| Max. total mass (kg) | 1990 | 1990 | |||||
| Chassis model, category name | Frameless body | Frameless body | |||||
| Number of doors (for passengers and driver) | 4 | 4 | |||||
| Number of seats | 7 | 7 | |||||
| Fuel tank capacity (L) | 50 | 50 | |||||
| Fuel grade (GB17930-1999) | 93# premium unleaded gasoline | 93# premium unleaded gasoline | |||||
| Min. ground clearance (mm) | 192 | 192 | |||||
| Min. turning diameter (m) | ≤10.8 | ≤10.8 | |||||
| Approach angle/departure angle (°) | 26/24 | 26/24 | |||||
| Max. climbing capacity (%) | ≥30 | ≥30 | |||||
| Engine & transmission Parameters | |||||||
| Engine model | LF475Q-h (1.5DVVT) | LFB479Q-h (1.8VVT) | |||||
| Displacement (L) | 1.485 | 1.794 | |||||
| Type | 4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine | 4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine | |||||
| Valve structure | Overhead camshaft | Overhead camshaft | |||||
| Engine capacity compression ratio | 10.5:1 | 10:1 | |||||
| Rated power/speed [kW/(r/min)] | 80/5800 | 98/6000 | |||||
| Max. torque [N·m/(r/min)] | 145/3500-4200 | 168/4200-4400 | |||||
| Engine oil supply method | Multi-point EFI | Multi-point EFI | |||||
| Electronic fuel injection system | UAES electronic injection system | UAES electronic injection system | |||||
| Material of cylinder cover | Aluminium alloy | Aluminium alloy | |||||
| Material of cylinder block | Cast iron | Cast iron | |||||
| Emission standard | State V | State V | |||||
| Transmission type | Manual transmission | Automatic Transmission | Manual transmission | Automatic Transmission | |||
| Number of gears | 5MT | 4AT | 5MT | 5AT | |||
| Chassis & brake Parameters | |||||||
| Drive mode | FR (Front mounted rear wheel drive) | FR (Front mounted rear wheel drive) | |||||
| Drive type | 4×2 | 4×2 | |||||
| Front overhanging type | Macpherson independent overhanging | Macpherson independent overhanging | |||||
| Rear overhanging type | Guide rod non-independent rear suspension | Guide rod non-independent rear suspension | |||||
| Chassis structure | Integral body construction | Integral body construction | |||||
| Front/rear tire specification | 205/65R16 | 205/65R16 | |||||
| Spare tire specification | 205/65R16 | 205/65R16 | |||||
| Front brake type | Disc-type | Disc-type | |||||
| Rear brake type | Disc-type | Disc-type | |||||
| Parking brake type | Hand brake | Hand brake | |||||
| Configurations | |||||||
| Vehicle Model & Type | BS371G15M (5MT) | BS371G15A (4AT) | BS371G18M (5MT) | BS371G18A (5AT) | |||
| Comfortable (SX) | Luxury (EX) | Intelligent (TX) | Superior (VIP) | Comfortable (SX) | Luxury (EX) | Superior (VIP) | |
| Engine | 1.5DVVT | 1.5DVVT | 1.5DVVT | 1.5DVVT | 1.8VVT | 1.8VVT | 1.8VVT |
| Transmission | 5MT | 5MT | 4AT | 4AT | 5MT | 5MT | 5AT |
| Tire specification (205/65 R16) | ● | ● | ● | ● | ● | ● | ● |
| Steel Wheel rim (16×6J) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Aluminum alloy wheel rim (16×6J) | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Electronic throttle pedal | ● | ● | ● | ● | ● | ● | ● |
| Front-disc rear-disc brake system | ● | ● | ● | ● | ● | ● | ● |
| Macpherson independent overhanging | ● | ● | ● | ● | ● | ● | ● |
| Guide rod non-independent rear suspension | ● | ● | ● | ● | ● | ● | ● |
| ABS+EBD | ● | ● | ● | ● | ● | ● | ● |
| Hydraulic power steering system | ● | ● | — | — | — | — | — |
| Electric power steering (EPS) | — | — | ● | ● | ● | ● | ● |
| Driver air bag | ● | ● | ● | ● | ● | ● | ● |
| Passenger air bag | ● | ● | ● | ● | ● | ● | ● |
| Two-regulating steering column | ● | ● | ● | ● | ● | ● | ● |
| Crumple type steering column | ● | ● | ● | ● | ● | ● | ● |
| Engine immobilizer | ○ | ● | ● | ● | ○ | ● | ● |
| Anti-theft alarm | ● | ● | ● | ● | ● | ● | ● |
| Reversing camera | — | ● | ● | ● | — | ● | ● |
| Reversing radar | ● | ● | ● | ● | ● | ● | ● |
| Central lock inside vehicle | ● | ● | ● | ● | ● | ● | ● |
| Remote key | 2 | — | — | — | 2 | — | — |
| Intelligent key | — | 2 | 2 | 2 | — | 2 | 2 |
| Electric unlock of back door | ● | ● | ● | ● | ● | ● | ● |
| Trunk cover with inhaul cable | ● | ● | ● | ● | ● | ● | ● |
| Misoperation lock prevention | ● | ● | ● | ● | ● | ● | ● |
| 20km/h automatical lock | ● | ● | ● | ● | ● | ● | ● |
| Middle door child lock | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger seatbelts | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger pretensioning seatbelts | — | ○ | ○ | ○ | — | ○ | ○ |
| Three-point seatbelts, middle-row seats | ● | ● | ● | ● | ● | ● | ● |
| Three-point seatbelts, rear-row seats | ● | ● | ● | ● | ● | ● | ● |
| Driver's seatbelt unfastened warning | ● | ● | ● | ● | ● | ● | ● |
| Front passenger's seatbelt unfastened warning | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Safety handle (5) | ● | ● | ● | ● | ● | ● | ● |
| Headlamp/door unclosed alarm | ● | ● | ● | ● | ● | ● | ● |
| Hagolen front combination lamp | ● | ● | ● | ● | ● | ● | ● |
| LED side turning lamp (integrated on the exterior rear mirror) | ● | ● | ● | ● | ● | ● | ● |
| Front fog lamp | ● | ● | ● | ● | ● | ● | ● |
| Daytime running lamp | ● | ● | ● | ● | ● | ● | ● |
| Rear combination lamp | ● | ● | ● | ● | ● | ● | ● |
| Rear fog lamp+reflex reflector | ● | ● | ● | ● | ● | ● | ● |
| High mount stop lamp | ● | ● | ● | ● | ● | ● | ● |
| Front reading lamp | ● | ● | ● | ● | ● | ● | ● |
| Trunk lamp | ● | ● | ● | ● | ● | ● | ● |
| Door lamp | ● | ● | ● | ● | ● | ● | ● |
| TFT combination instrument | ● | ● | ● | ● | ● | ● | ● |
| MP5+one-way interconnection (IOS, ANDROID) | ● | ● | ● | ● | ● | ● | ● |
| Bluetooth system | ● | ● | ● | ● | ● | ● | ● |
| USB connector | ● | ● | ● | ● | ● | ● | ● |
| 6-horn loudspeaker system | ● | ● | ● | ● | ● | ● | ● |
| Body-color front bumper | ● | ● | ● | ● | ● | ● | ● |
| Body-color rear bumper | ● | ● | ● | ● | ● | ● | ● |
| Front grille with color seperation | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated outer handle | ● | ● | ● | ● | ● | ● | ● |
| Body-color power exterior rear mirror (with turning lamp) | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated weather strip | ● | ● | ● | ● | ● | ● | ● |
| Front wheel fender | ● | ● | ● | ● | ● | ● | ● |
| Rear wheel fender | ● | ● | ● | ● | ● | ● | ● |
| Aluminum alloy baggage holder | ● | ● | ● | ● | ● | ● | ● |
| Body-color rear spoiler | ● | ● | ● | ● | ● | ● | ● |
| Front wiper | ● | ● | ● | ● | ● | ● | ● |
| Rear wiper(with washing) | ● | ● | ● | ● | ● | ● | ● |
| Boneless wiper | ● | ● | ● | ● | ● | ● | ● |
| Lower deflector (engine lower fender apron) | ● | ● | ● | ● | ● | ● | ● |
| Exterior body kit | ● | ● | ● | ● | ● | ● | ● |
| Engine trim cover (full cover) | ● | ● | ● | ● | ● | ● | ● |
| Treadplate (left & right) | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Driver sunvisor (with bill fold) | ● | ● | ● | ● | ● | ● | ● |
| Front passenger sunvisor (with vanity mirror) | ● | ● | ● | ● | ● | ● | ● |
| A-column decorative board | ● | ● | ● | ● | ● | ● | ● |
| B-column decorative board | ● | ● | ● | ● | ● | ● | ● |
| Injection molding trim panel | ● | ● | ● | ● | ● | ● | ● |
| Door storage box | ● | ● | ● | ● | ● | ● | ● |
| UV piano lacquer center console panel | ● | ● | ● | ● | ● | ● | ● |
| Chrome plated interior door handle | ● | ● | ● | ● | ● | ● | ● |
| Multi-function steering wheel | ● | ● | ● | ● | ● | ● | ● |
| Hard headlining | ● | ● | ● | ● | ● | ● | ● |
| Footrest | ● | ● | ● | ● | ● | ● | ● |
| Electric dual-evaporator air conditioner | ● | ● | ● | ● | ● | ● | ● |
| Vehicle-mounted 12V power interface | ● | ● | ● | ● | ● | ● | ● |
| Cigarette lighter | ● | ● | ● | ● | ● | ● | ● |
| Movable ashtray | ● | ● | ● | ● | ● | ● | ● |
| Tool kit (warning sign, towing hook, jack, tool) | ● | ● | ● | ● | ● | ● | ● |
| Driver 6-way seat with manual adjustment | ● | ● | ● | ● | ● | ● | ● |
| Front passnger 4-way seat with manual adjustment | ● | ● | ● | ● | ● | ● | ● |
| Driver and front passenger seats with heating function | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| Middle-row seat backrest with angle adjustment and flat laying | ● | ● | ● | ● | ● | ● | ● |
| ISOFIX | ● | ● | ● | ● | ● | ● | ● |
| Rear bench seat (for 2 people, detachable, foldable and turnable) | ● | ● | ● | ● | ● | ● | ● |
| Leather seat | ● | ● | ● | ● | ● | ● | ● |
| Carriage bag, front seat | ● | ● | ● | ● | ● | ● | ● |
| Front door electric window regulator | ● | ● | ● | ● | ● | ● | ● |
| Middle door electric window regulator | ● | ● | ● | ● | ● | ● | ● |
| Rear tempered-glass windshield with defogging function | ● | ● | ● | ● | ● | ● | ● |
| Common glass | ● | — | — | — | ● | — | — |
| Privacy glass | — | ● | ● | ● | — | ● | ● |
| Anti-dazzling interior rearview mirror | ● | ● | ● | ● | ● | ● | ● |
| Color-separation interior trim | ● | ● | ● | ● | ● | ● | ● |
| 3M black foil | ● | ● | ● | ● | ● | ● | ● |
| 3M sound absorption cotton | ● | ● | ● | ● | ● | ● | ● |
| One-button anti-pinch power sunroof | — | ● | ● | ● | — | ● | ● |
| Button start+keyless entry | — | ● | ● | ● | — | ● | ● |
| Automobile data recorder | ○ | ○ | ○ | ● | ○ | ○ | ● |
| Tire Pressure Monitor System (TPMS) | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| ESP | ○ | ○ | — | ● | ● | ● | ● |
| Middle seats with sliding function | — | — | — | — | ● | ● | ● |
Six main advantages of assembling the Rear Wheel Drive Seven Passenger SUV in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase profit margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities for local citizen.
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Chongqing Big Technology Co., Ltd
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): 15223551381
