| MOQ: | 1 unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 45-60 Working days |
| Payment Method: | TT, L/C |
| Supply Capacity: | 5,000 Units per Year |

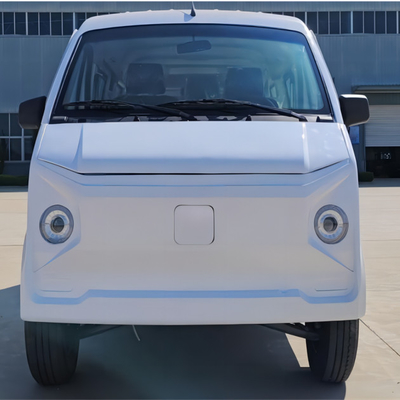

Low Operating Costs Electric Mini Bus 5.4m Van Large Capacity To Carry Passengers
Product Advantages
Economic benefits: operating costs are lower than fuel vehicles, electricity is cheaper than fuel, and maintenance costs are lower.
Large capacity to carry passengers: 14-seat capacity is suitable for various scenarios such as tourist charter buses, corporate shuttles, school buses, etc. to meet the needs of group travel.
Long range: the vehicle is equipped with 41.82 kWh lithium iron phosphate battery, the range can reach more than 200 km, which can meet the needs of daily operation.
Comfort: The vehicle has good ride comfort, smooth driving characteristics and quiet driving environment, providing passengers with a good traveling experience.
Technical Specifcations
| OMPLETE VEHICLE SPECIFICATION | |
| Length*Width*Height (mm) | 5400*1880*2100 |
| Wheelbase (mm) | 3380 |
| Overall mass (Kg) | 2100 |
| Maximum Gross Mass (Kg) | 3800 |
| Maximum number of occupants | 7-14 seats |
| Maximum speed (Km/h) | 100 |
| Range | ≥200 |
| Power System | 45/90Kw, permanent magnet synchronous |
| Front/Rear Axle | Disk / Drum |
| Suspension System | Front independent suspension / Rear leaf spring suspension |
| Tire | 185/65R 15LT 12PR |
| Steering System | Electronic Power Assist |
| ABS | Yes |
| Driving Direction | Left Rudder/Right Rudder |
| Seats |
Manual four-way adjustment for main driver, fabric seat fabric |
| Windows | Power windows |
| Doors | Left and right front doors + manual dual side sliding doors |
| Front Windshield | Double laminated glass |
| Other | Folding rear seats |
| Battery Pack | 41.82 kWh lithium iron phosphate battery |
| Air Conditioning | Yes |
| USB Charging Port | 1pc |
| Central locking | Yes |
| Audio-visual system | Radio |
| Charging port | National standard |
Detailed Pictures
Questions Related to New Energy Vehicle
1, The status of China's development in the new energy automobile industry and its position in the international new energy automobile industry.
Did you know that Chinese automobile technology is developing very fast? Note some background information:
-In 2010, China became the world's largest automaker.
-In 2016, Chinese car production was about 28 million units > Japanese car production. American car production. South Korean car production.
China produced 700000 new energy vehicles in 2016, the world's largest, more than any other country.
- In 2017, China produced 860000 new energy vehicles, the largest in the world, surpassing other countries' total production of new energy vehicles.
- In 2018, Beijing's latest production standards for electric vehicles were well above European standards.
Starting in 2016, China's electric vehicle manufacturing technology is ahead of the world, and it will issue China's V standard (Europe's V technology is the same). In 2020, China will use the standard Europe's sixth largest in order to reduce the production of petroleum-fueled vehicles. To promote the development of new energy vehicles, China will stop manufacturing petroleum-based vehicles in 2025, and all new energy vehicles will be produced. At present, the automobile factory in China has basically realized the automation of the automobile production.
2, Category of new energy vehicle
EV types according to maximum speed and range: slow speed EV( under 50Km/h), middle speed(60-95Km/h) and high speed( above 100Km/h)
EV types according to power: pure electric car( with Li battery and hydrogen battery, hybrid car(gasoline, diesel or CNG + electric power)
EV types according to usage: passenger EV( sedan, suv and bus), business EV(van, MPV) and logistic EV(cargo truck)
3,Cost of EV manufacture
Taking the electric bus for example: if the manufacture cost of diesel bus just 1, the cost of electric bus with same length would be 4 times of diesel bus and the cost of hybrid bus would be 3 times of its combustion type bus.
Taking the passenger EV for example, if the cost of petroleum combustion passenger car would be 10,000 USD, the low speed pure electric car’s cost also be 10,000 USD, the middle speed one would be 20,000 USD and high speed one would be 30,000-40,000USD, and hybrid passenger car manufacture cost would be 20,000-30,000USD.
4, Why has China become the world's leader in the development of new energy vehicles?
A, The Chinese government attaches great importance to the development of electric vehicles as a strategic opportunity to overtake the western developed countries.
B, As the second largest economy, China has a strong national strength, to develop new energy vehicles as a national strategy, invested a lot of money, new energy car consumers to provide huge government subsidies (50 percent).
C, After 40 years of reform and development, China has achieved tremendous economic and technological development.China has the industrial foundation of the entire industrial chain necessary for the development of new energy vehicles.
D, China's huge new energy electric vehicle market, provides the necessary conditions for China to become the world leader in the development of new energy vehicles.
5, About the traditional petroleum fuel vehicle and new energy Electric Vehicle assembly Plant Project
A, Conventional petroleum fuel vehicles and new energy Electric vehicle assembly plant production lines are basically the same, if reasonable arrangement they can be co-production.
B,We will develop electricl and fuel vehicle models of the same type, maximizing efficiency
C, If SKD assembly lines, the cost of equipment will be 0.5-0.8 million USD; if CKD model of lines equipment, the cost will be 1-1.2million USD.
6,Customized new Energy electric vehicles
New Energy electric vehicle manufacturing cost is high, technical parameters are not higher the better, especially high-speed electric vehicle cost is very high, should according to market requirements, to develop suitable for the market electric vehicles
The South Asian market should be dominated by medium-and low-speed vehicles. In fact, we are not able to fully fuel the standard requirements of electric vehicles, with the development of electric vehicle technology, the gap will be reduced
|
|
