LHD/RHD Electric Mini Bus 5.4 Meters, 7-14 Passenger Van Range Up To 200Km

LHD/RHD Electric Mini Bus 5.4 Meters, 7-14 Passenger Van Range Up To 200Km

MOQ: 1 unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 45-60 Working days
Payment Method: L/C, T/T
Supply Capacity: 5000 units per year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
Electric Mini Bus 5.4 Meters, 7-14 Passenger Van
Product Name:
Electric Mini Bus 5.4 Meters, 7-14 Passenger Van
Length (mm):
5400
Width (mm):
1880
Height (mm):
2100
Wheelbase (mm):
3380
Overall Quality (Kg):
2100
Maximum Gross Mass (Kg):
3800
Maximum Number Of Occupants:
7/ 14 Seats
Maximum Speed (Km/h):
100
Range:
≥200
Minimum Order Quantity:
1 unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
45-60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
5000 units per year
Highlight:

Drive Diesel SUV Car Military Jeep

,

4wd Military Jeep SUV Car

,

75R16 Military SUV Car

Product Description

LHD/RHD Electric Mini Bus 5.4 Meters, 7-14 Passenger Van Range Up To 200Km





Product Advantages

Economic benefits: operating costs are lower than fuel vehicles, electricity is cheaper than fuel, and maintenance costs are lower.



Large capacity to carry passengers: 14-seat capacity is suitable for various scenarios such as tourist charter buses, corporate shuttles, school buses, etc. to meet the needs of group travel.



Long range: the vehicle is equipped with 41.82 kWh lithium iron phosphate battery, the range can reach more than 200 km, which can meet the needs of daily operation.



Comfort: The vehicle has good ride comfort, smooth driving characteristics and quiet driving environment, providing passengers with a good traveling experience.





Technical Specifcations

OMPLETE VEHICLE SPECIFICATION

Length*Width*Height (mm) 5400*1880*2100
Wheelbase (mm) 3380
Overall mass (Kg) 2100
Maximum Gross Mass (Kg) 3800
Maximum number of occupants 7-14 seats
Maximum speed (Km/h) 100
Range ≥200
Power System 45/90Kw, permanent magnet synchronous
Front/Rear Axle Disk / Drum
Suspension System Front independent suspension / Rear leaf spring suspension
Tire 185/65R 15LT 12PR
Steering System Electronic Power Assist
ABS Yes
Driving Direction Left Rudder/Right Rudder
Seats

Manual four-way adjustment for main driver,

fabric seat fabric

Windows Power windows
Doors Left and right front doors + manual dual side sliding doors
Front Windshield Double laminated glass
Other Folding rear seats
Battery Pack 41.82 kWh lithium iron phosphate battery
Air Conditioning Yes
USB Charging Port 1pc
Central locking Yes
Audio-visual system Radio
Charging port National standard

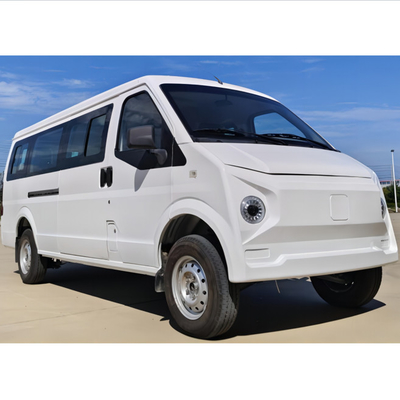

Detailed Pictures

LHD/RHD Electric Mini Bus 5.4 Meters, 7-14 Passenger Van Range Up To 200Km 0





Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
