MOQ: | 1 |
Price: | USD15,999.00-USD16,599.00 / Unit |
Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
Delivery Period: | 60 working days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 100000 Units per Year |
Auto Assembling of City SUV Car Strong 4x4 Diesel SUV with Knocked Down Kits
Six main advantages of assembling the City SUV Car Strong 4x4 Diesel SUV in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.

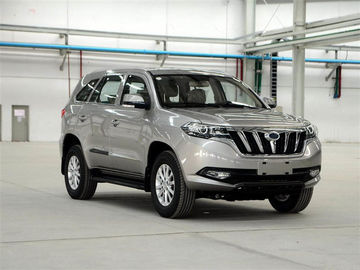

1. Description of the City SUV Car Strong 4x4 Diesel SUV:
Big City SUV Car - Model 6480 | |
Version | 6480 Diesel 4WD Deluxe |
Basic Parameter | |
Engine | 1.9T 136 Horse Power |
Transmission | 5 Speed Manual |
Overall Dimensions (mm) | 4771*1870*1828 |
Maximum Speed | 160 |
Actual Fuel Consumption | 8.9 |
Theoretical Fuel consumption | 8.0 |
Ground Clearance(mm) | 217 |
Car Body | |
Wheel Base(mm) | 2790 |
Front Wheel Base (mm) | 1580 |
Rear Wheel Base (mm) | 1580 |
Curb Mass (kg) | 1990 |
Vechicle Type | SUV |
Door | 5 |
Seat | 7 |
Fuel Tank Capacity(L) | 72 |
Engine | |
Engine Type | D19TCID1 |
Displacement(ml) | 1850 |
Air Intake Type | Turbo Charger |
Cylinder Spread Pattern | L |
Number of Cylinder | 4 |
Air Valve in Each Cylinder | 4 |
Compression Ratio | 16.5:1 |
Valve Mechanism | DOHC |
Maximum Horsepower(Ps) | 136 |
Maximum Power(Kw) | 100 |
Maximum Power Speed(rpm) | 4000 |
Maximum Torque(N.m) | 300 |
Maximum Torque Speed(rpm) | 3000 |
Fuel Type | Diesel |
Fuel Supply Type | common rail direct injection |
Cylinder Head Material | Aluminum |
Cylinder Body Material | Iron |
Emission | Euro Ⅳ |
Transmission | |
Speed | 5 |
Type | Manual Transmission(MT) |
Chassis | |
Driving Method | 4WD |
Front Suspension | Double Wishbone Independent Suspension |
Rear Suspension | Five-Link Suspension |
Steering | Hydraulic Power Steering |
Body Structure | SUV |
Wheel Brake | |
Front Brake Type | Ventilated Disc |
Rear Brake Type | Disc |
Parking Brake Type | Hand |
Front Tyre Size | 245/70R17 |
Rear Tyre Size | 245/70R17 |
Spare Tyre | Full Size |
Active/Passive Safety | |
Dual Airbags | Driver side● / Co-driver side● |
Seatbelt Unfastening Warning System | ● |
Children Seat Fix | ● |
Central Locking | ● |
Remote key | ● |
Control Equipment | |
ABS | ● |
EBD | ● |
External Equipment | |
Sunroof | ● |
Alum-Alloy Wheel | ● |
Luggage Carrier | ● |
Internal Equipment | |
Steering Wheel | ● |
Steering Wheel Adjusting Type | Up and Down |
Steering Wheel w/Audio and Bluetooth | ● |
Visual Imaging System | ● |
ECU Monitor | ● |
Seat Equipment | |
Seat Material | Leather |
The Seat Height Adjustment | ● |
The Driver Side/Co-Driver Side Seat Electric Adjustment | Driver Side● / Co-Driver Side- |
The Second Row Backrest Angle Adjustment | ● |
The Second Row Seat Movement | ● |
The Third Row Seats | ● |
The Central Armrest | Front● / Rear● |
Multimedia Equipment | |
GPS System | ● |
Colourful Screen | ● |
Bluetooth/Car Telephone | ● |
Sound Source Connector | USB+AUX |
Speaker | 8 |
Lighting Equipment | |
Dipped Headlight | Halogen |
Full Beam Headlight | Halogen |
Front Lamp | ● |
Electric Height-adjustable Headlamps | ● |
Window/Rear View Mirror | |
Front/Rear Window | Electric |
Electrical Control Rear View Mirror | ● |
Rearview Mirror Heating | ● |
Rearview Mirror Electric Folding | ● |
Visor Cosmetic Mirror | ● |
Rear Windshield Wiper | ● |
Air Condition | |
Electric Control Air Conditioning | Manual |
Remarks: 1. "●"Available "—"Not Available; 2. The above quotations are valid for 30 days from the issuing date here; 3. All subject to the final agreement signed by both parties. |
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): 15223551381
