Safe And Solid Electric Pickup Truck BMP 03 Suitable for Multiple Scenarios

Safe And Solid Electric Pickup Truck BMP 03 Suitable for Multiple Scenarios

MOQ: 1 unit
Standard Packaging: Using Carton, fumigated wood pallet and steel pallet
Delivery Period: 45-60 Working days
Payment Method: L/C, T/T
Supply Capacity: 5000-30000units
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
Electric 4WD Pickup Truck BMP 03
Product Name:
Electric 4WD Pickup Truck BMP 03
Length*Width*Height (mm):
5692* 2045*1960
Wheelbase (mm):
3513
Front And Rear Overhang (mm):
860/ 1350
Front And Rear Wheelbase (mm):
1532/ 1537
Max. Load Capacity (Kg):
1010
Total Mass (Kg):
1875
Gross Mass (Kg):
2885
Maximum Number Of Occupants:
2+3
Maximum Speed (Km/h):
100
Minimum Order Quantity:
1 unit
Packaging Details:
Using Carton, fumigated wood pallet and steel pallet
Delivery Time:
45-60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
5000-30000units
Product Description

Safe And Solid Electric Pickup Truck BMP 03 Suitable for Multiple Scenarios





BMP 03  overoll Introduction:

Safe and solid: The vehicle adopts fully welded thicker, wider, higher, reinforced frame. Resistant to impact and twisting.



Large space for more comfortable ride: the length, width and height of the vehicle are 5692mm, 2045mm and 1960mm respectively. And the vehicle adopts double-wishbone independent suspension, strong driving comfort, to meet the needs of multiple driving and riding.



Long range: The vehicle is equipped with 98 kWh lithium iron phosphate battery, with a range of up to 400 kilometers. It can meet all kinds of traveling needs.





BMP 03  parameters

BMP 03 Basic parameters
Length*Width*Height (mm) 5692* 2045*1960
Wheelbase (mm) 3513
Front and rear overhang (mm) 860/ 1350
Front and rear wheelbase (mm) 1532/ 1537
Max. load capacity (Kg) 1010
Total mass (Kg) 1875
Gross mass (Kg) 2885
Trunk size (mm) 1810* 1700*515
Maximum number of occupants 2+3
Maximum speed (Km/h) 100
Maximum gradient (%) 20
Minimum Turning Diameter (m) ≤ 13.5
Minimum Ground Clearance (mm) 180
Approach/Departure Angle (°) 34/ 19
Range (Km) 400
Power system parameters
Drive Type 4*4
Drive motor Front rated 30 Kw, 200N.m / Rear rated 60 Kw
Front reduction gearbox Transmission ratio 4.1
Rear electric drive axle Main transmission ratio 9.33
Battery pack Lithium iron phosphatebattery 98 Kwh
Suspension system Asymmetric leaf spring
Steering System EPS
Braking System Front Disc Brake/ Rear Drum Brake
Hand Brake Yes
ABS Yes
Body and interior parameters
Guard rail type Iron Railings
Seat fabric Imitation Leather Seat
Center screen type Touch Screen
Tires 265/ 65 R17
Interior accessories: sun visors, door sills, adjustable front seat belts, front center armrests

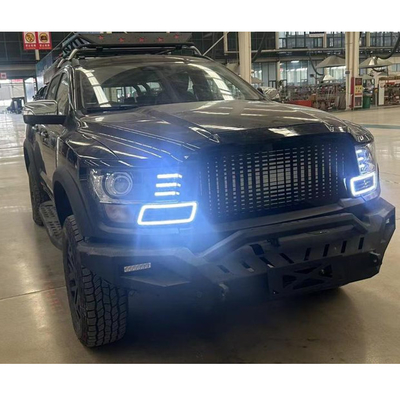

Detailed display pictures

Safe And Solid Electric Pickup Truck BMP 03 Suitable for Multiple Scenarios 0





Questions Related to New Energy Vehicle

1,The battery power charging instructions:

Low speed electric vehicles generally only support slow charge mode;

The low-speed four-wheel electric vehicle is a modern new energy vehicle. Its advantage is that it is not affected by soaring oil prices and is mainly powered by electricity. Therefore, the battery of the low-speed four-wheel electric vehicle is the core. Therefore, the correct charging method is very important. Determine the battery life. When charging the battery with a charger, plug in the charger's output plug, and then plug in the AC input plug. After charging, unplug the AC power supply, then unplug the charger output plug. In general, excessive discharge and overcharge of batteries are harmful. So charge it, don't overdo it. Electricity. The service life of low-speed four-wheel electric vehicle battery is related to its discharge depth. Lead acid batteries, in particular, cannot run out of electricity for long periods of time. Therefore, in order to extend the low-speed four-wheel electric vehicle service life, must maintain the battery, correctly charged.

High-speed electric vehicles not only support slow charge mode, but also support fast charge and quick change, more convenient.

Charge operator through training before operation. First, switch the switch on the corresponding charging pile knob of the distribution cabinet, the charging pile is electrified, the charging gun is connected to the charging port of the car, and the black switch is confirmed to fasten, (after fastening, the display screen inside the car will automatically light up). Click the touch screen operation screen "start charging", select automatic charging mode, and then swipe the card (stay at the card for 3 seconds). Check the charging information in the car to make sure the charge is started. It is forbidden to start the vehicle during charging to prevent damage to the vehicle and charging pile. After charging is over or in advance, finish charging by swiping the card, then unplug the charging gun and cover the charge Put the gun cap on the charging post hook. Close the distribution box for charging pile knob switch off before leaving. If abnormal charge or other circumstances should be reported to the doorman security, and report to the relevant leaders. Untrained personnel are prohibited from operating. If the charging pile is damaged by the untrained personnel or not according to the prescribed operation, compensation shall be made according to the price.



2, About battery maintenance and lithium batteries:

In order to extend the service life of a lithium battery as long as possible, we must do the following: when charging, select the right charger, supply the battery with the right voltage and current. When making lithium battery customization or purchase, we should customize or purchase the lithium battery with reasonable protection board to prevent the battery or charging line from abnormal electric power, break the circuit and protect the lithium battery if it is found abnormal. Pay attention to the temperature in daily use. If the temperature is too high, contact the manufacturer in time to avoid failure and irreversible damage. At low temperature, the capacity of using lithium battery will decrease. This is a normal phenomenon (usually below 30 degrees below zero), don't worry.



3, About low speed electric vehicle range booster.

The range-increasing device of electric vehicle is to install a small generating set on the low-speed electric vehicle. Charge the battery pack through a small generator set. Typically, when the battery is running out of battery power, start a small generator set to keep the electric vehicle moving. The drawback is that it adds 60 decibels to the weight of the car and to the noise of the small generator set. The advantage is that the range of electric vehicles can be extended.



4, About hybrid cars.
