| MOQ: | 1 Unit |
| Price: | USD 25,999 - USD 26, 999 Per Unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 45-60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 pics per year |

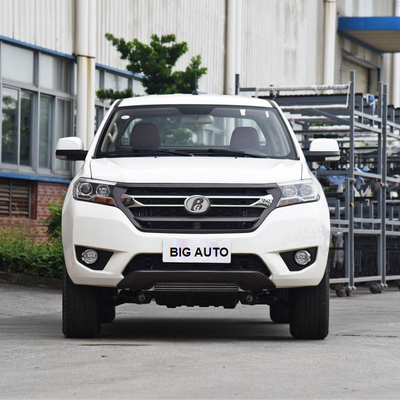

2WD 4-Door 5-Seat Pickup Long Range Electric Truck F22 Rang Up To 330 Km
F22 Introduction
Vehicle modeling:
The whole car shape is full and sturdy, the body lines are hard and sharp, showing the American cross-country tough guy style. Family-style front face design, four-span grille, the center of the chrome material shows more delicate sense.
Power performance:
63 kWh battery from Ningde Times, max power 70kW, max torque 230N·m, range up to 330km.
Off-road performance:
The F22 adopts a high-end professional off-road SUV chassis platform, with two vertical and nine horizontal chassis and variable cross-section trapezoidal structure, which is stable and sturdy.
Interior Configuration:
The vehicle is equipped with ABS, EBD, seatbelt warning, high-strength heat-insulating glass, three-point safety ground and other features.
F22 Parameters
| F22 Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent magnet synchronous |
| Number of Driving Motors | single motor |
| Drive mode | 2WD |
| Motor Layout | Front |
| Maximum Power(kW) | 70 |
| Maximum Torque(N.m) | 230 |
| Maximum speed(Km/h) | 90 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | lithium iron phosphate battery |
| Battery capacity(kW.h) | 63 |
| CLTC range(km) | 330 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 5330*1870*1864 |
| Wheelbase(mm) | 3100 |
| Wheel Track Front/Wheel Track Rear(mm) | 1580/ 1580 |
| Approach angle/ Departure angle(°) | 28/26 |
| Curb Weight (kg) | 1885 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Double wishbone coil spring independent suspension |
| Rear Suspension |
Non-independent suspension with leaf springs
|
| Front Brakes/ Rear Brakes | Disc brakes/ Drum brakes |
| Parking Brake | Electronic Parking Brake |
| Drive Type | FF |
| Transmission type | 6-Speed munual gearbox |
| Steering Form | Hydralic power steering |
| Tire Size | 245/ 70 R17 |
| ABS/ EBD | Standard |
| BODY | DESCRIPTION |
| Body Structure | Four- door, Five - seat Pickup |
| Seats Number | 5 |
| Seat Belt Type | three-pointed |
| Number of airbags | 2 |
| Air Conditioning | Manual air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
