Large Space LHD/ RHD Pure Electric 4WD Pickup Truck BMP 03 High-quality Pickup

Large Space LHD/ RHD Pure Electric 4WD Pickup Truck BMP 03 High-quality Pickup

MOQ: 1 unit
Standard Packaging: Using Carton, fumigated wood pallet and steel pallet
Delivery Period: 45-60 Working days
Payment Method: L/C, T/T
Supply Capacity: 5000-30000units
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
Electric 4WD Pickup Truck BMP 03
Product Name:
Electric 4WD Pickup Truck BMP 03
Length*Width*Height (mm):
5692* 2045*1960
Wheelbase (mm):
3513
Front And Rear Overhang (mm):
860/ 1350
Front And Rear Wheelbase (mm):
1532/ 1537
Max. Load Capacity (Kg):
1010
Total Mass (Kg):
1875
Gross Mass (Kg):
2885
Maximum Number Of Occupants:
2+3
Maximum Speed (Km/h):
100
Minimum Order Quantity:
1 unit
Packaging Details:
Using Carton, fumigated wood pallet and steel pallet
Delivery Time:
45-60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
5000-30000units
Product Description

Large Space LHD/ RHD Pure Electric 4WD Pickup Truck BMP 03 High-quality Pickup





BMP 03  overoll Introduction:

Safe and solid: The vehicle adopts fully welded thicker, wider, higher, reinforced frame. Resistant to impact and twisting.



Large space for more comfortable ride: the length, width and height of the vehicle are 5692mm, 2045mm and 1960mm respectively. And the vehicle adopts double-wishbone independent suspension, strong driving comfort, to meet the needs of multiple driving and riding.



Long range: The vehicle is equipped with 98 kWh lithium iron phosphate battery, with a range of up to 400 kilometers. It can meet all kinds of traveling needs.





BMP 03  parameters

BMP 03 Basic parameters
Length*Width*Height (mm) 5692* 2045*1960
Wheelbase (mm) 3513
Front and rear overhang (mm) 860/ 1350
Front and rear wheelbase (mm) 1532/ 1537
Max. load capacity (Kg) 1010
Total mass (Kg) 1875
Gross mass (Kg) 2885
Trunk size (mm) 1810* 1700*515
Maximum number of occupants 2+3
Maximum speed (Km/h) 100
Maximum gradient (%) 20
Minimum Turning Diameter (m) ≤ 13.5
Minimum Ground Clearance (mm) 180
Approach/Departure Angle (°) 34/ 19
Range (Km) 400
Power system parameters
Drive Type 4*4
Drive motor Front rated 30 Kw, 200N.m / Rear rated 60 Kw
Front reduction gearbox Transmission ratio 4.1
Rear electric drive axle Main transmission ratio 9.33
Battery pack Lithium iron phosphatebattery 98 Kwh
Suspension system Asymmetric leaf spring
Steering System EPS
Braking System Front Disc Brake/ Rear Drum Brake
Hand Brake Yes
ABS Yes
Body and interior parameters
Guard rail type Iron Railings
Seat fabric Imitation Leather Seat
Center screen type Touch Screen
Tires 265/ 65 R17
Interior accessories: sun visors, door sills, adjustable front seat belts, front center armrests

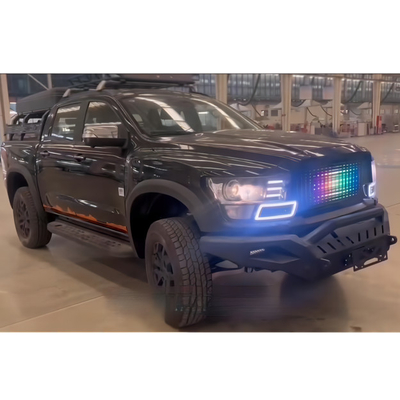

Detailed display pictures

Large Space LHD/ RHD Pure Electric 4WD Pickup Truck BMP 03 High-quality Pickup 0





FAQ

Q1 What types of payment terms are acceptable?

A:We acceptable T/T, L/C



Q2 What is your minimum order requirement?

A: 1 unit.



Q3 What is your distributor support policy in international markets?

A:We invest technologies and equipment, while our partners provide lands,workshops,

funds, management and marketing.

1. Offering you an easy and quick approach to entering automobile industry

2. Assembling vehicles using KD parts to save cost.

3. Our professional team prepares architectural design and assembly design based

on the end products our partners choose.

4. Our engineers provide job training and technical service on site.

5. Quality control system makes sure vehicles come off our assembly lines get

universal quality



Q4 What is your shipping method and delivery time?

A: Transported by air, container, ro-ro ship. LCL quantities allow one vehicle to be shipped. Orders will be sent via FCL shipping. Usually the delivery time is 15 to 25 days after receiving the deposit.
