| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000-30000units |
4WD Pure Electric Pickup Truck BMP 03 Range Up To 400Km Big Size Pickup
BMP 03 overoll Introduction:
Safe and solid: The vehicle adopts fully welded thicker, wider, higher, reinforced frame. Resistant to impact and twisting.
Large space for more comfortable ride: the length, width and height of the vehicle are 5692mm, 2045mm and 1960mm respectively. And the vehicle adopts double-wishbone independent suspension, strong driving comfort, to meet the needs of multiple driving and riding.
Long range: The vehicle is equipped with 98 kWh lithium iron phosphate battery, with a range of up to 400 kilometers. It can meet all kinds of traveling needs.
BMP 03 parameters
| BMP 03 Basic parameters | |
| Length*Width*Height (mm) | 5692* 2045*1960 |
| Wheelbase (mm) | 3513 |
| Front and rear overhang (mm) | 860/ 1350 |
| Front and rear wheelbase (mm) | 1532/ 1537 |
| Max. load capacity (Kg) | 1010 |
| Total mass (Kg) | 1875 |
| Gross mass (Kg) | 2885 |
| Trunk size (mm) | 1810* 1700*515 |
| Maximum number of occupants | 2+3 |
| Maximum speed (Km/h) | 100 |
| Maximum gradient (%) | 20 |
| Minimum Turning Diameter (m) | ≤ 13.5 |
| Minimum Ground Clearance (mm) | 180 |
| Approach/Departure Angle (°) | 34/ 19 |
| Range (Km) | 400 |
| Power system parameters | |
| Drive Type | 4*4 |
| Drive motor | Front rated 30 Kw, 200N.m / Rear rated 60 Kw |
| Front reduction gearbox | Transmission ratio 4.1 |
| Rear electric drive axle | Main transmission ratio 9.33 |
| Battery pack | Lithium iron phosphatebattery 98 Kwh |
| Suspension system | Asymmetric leaf spring |
| Steering System | EPS |
| Braking System | Front Disc Brake/ Rear Drum Brake |
| Hand Brake | Yes |
| ABS | Yes |
| Body and interior parameters | |
| Guard rail type | Iron Railings |
| Seat fabric | Imitation Leather Seat |
| Center screen type | Touch Screen |
| Tires | 265/ 65 R17 |
| Interior accessories: | sun visors, door sills, adjustable front seat belts, front center armrests |

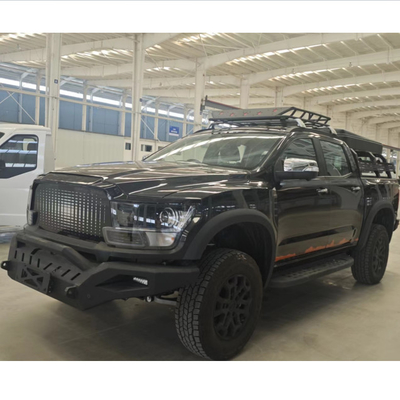

Detailed display pictures
Questions Related to New Energy Vehicle
1, The status of China's development in the new energy automobile industry and its position in the international new energy automobile industry.
Did you know that Chinese automobile technology is developing very fast? Note some background information:
-In 2010, China became the world's largest automaker.
-In 2016, Chinese car production was about 28 million units > Japanese car production. American car production. South Korean car production.
China produced 700000 new energy vehicles in 2016, the world's largest, more than any other country.
- In 2017, China produced 860000 new energy vehicles, the largest in the world, surpassing other countries' total production of new energy vehicles.
- In 2018, Beijing's latest production standards for electric vehicles were well above European standards.
Starting in 2016, China's electric vehicle manufacturing technology is ahead of the world, and it will issue China's V standard (Europe's V technology is the same). In 2020, China will use the standard Europe's sixth largest in order to reduce the production of petroleum-fueled vehicles. To promote the development of new energy vehicles, China will stop manufacturing petroleum-based vehicles in 2025, and all new energy vehicles will be produced. At present, the automobile factory in China has basically realized the automation of the automobile production.
2, Category of new energy vehicle
EV types according to maximum speed and range: slow speed EV( under 50Km/h), middle speed(60-95Km/h) and high speed( above 100Km/h)
EV types according to power: pure electric car( with Li battery and hydrogen battery, hybrid car(gasoline, diesel or CNG + electric power)
EV types according to usage: passenger EV( sedan, suv and bus), business EV(van, MPV) and logistic EV(cargo truck)
3,Cost of EV manufacture
Taking the electric bus for example: if the manufacture cost of diesel bus just 1, the cost of electric bus with same length would be 4 times of diesel bus and the cost of hybrid bus would be 3 times of its combustion type bus.
Taking the passenger EV for example, if the cost of petroleum combustion passenger car would be 10,000 USD, the low speed pure electric car’s cost also be 10,000 USD, the middle speed one would be 20,000 USD and high speed one would be 30,000-40,000USD, and hybrid passenger car manufacture cost would be 20,000-30,000USD.
4, Why has China become the world's leader in the development of new energy vehicles?
A, The Chinese government attaches great importance to the development of electric vehicles as a strategic opportunity to overtake the western developed countries.
B, As the second largest economy, China has a strong national strength, to develop new energy vehicles as a national strategy, invested a lot of money, new energy car consumers to provide huge government subsidies (50 percent).
C, After 40 years of reform and development, China has achieved tremendous economic and technological development.China has the industrial foundation of the entire industrial chain necessary for the development of new energy vehicles.
D, China's huge new energy electric vehicle market, provides the necessary conditions for China to become the world leader in the development of new energy vehicles.
5, About the traditional petroleum fuel vehicle and new energy Electric Vehicle assembly Plant Project
A, Conventional petroleum fuel vehicles and new energy Electric vehicle assembly plant production lines are basically the same, if reasonable arrangement they can be co-production.
B,We will develop electricl and fuel vehicle models of the same type, maximizing efficiency
C, If SKD assembly lines, the cost of equipment will be 0.5-0.8 million USD; if CKD model of lines equipment, the cost will be 1-1.2million USD.
6,Customized new Energy electric vehicles
New Energy electric vehicle manufacturing cost is high, technical parameters are not higher the better, especially high-speed electric vehicle cost is very high, should according to market requirements, to develop suitable for the market electric vehicles
The South Asian market should be dominated by medium-and low-speed vehicles. In fact, we are not able to fully fuel the standard requirements of electric vehicles, with the development of electric vehicle technology, the gap will be reduced
|
|
