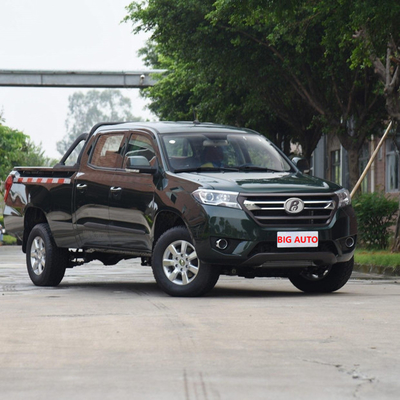

Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance

Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance

MOQ: 1 Unit
Price: USD 25,999 - USD 26, 999 Per Unit
Standard Packaging: Steel frame
Delivery Period: 45-60 Working days
Payment Method: L/C, T/T
Supply Capacity: 5000 pics per year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
F22
Product Name:
Electric Truck F22
Motor Type:
Permanent Magnet Synchronization
Maximum Power(kW):
70
Maximum Torque(N.m):
230
Drive Mode:
2WD
Maximum Climbing Slope:
20%
Battery Capacity(kWh):
63
Range (Km):
330
Curb Weight(kg):
1885
Minimum Ground Clearance(mm):
217
Minimum Order Quantity:
1 Unit
Price:
USD 25,999 - USD 26, 999 Per Unit
Packaging Details:
Steel frame
Delivery Time:
45-60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
5000 pics per year
High Light:

High Performance Electric Truck F22

,

330Km Electric Pickup Truck F22

,

Max Torque 230 N·m Pickup Truck

Product Description

Max Torque 230 N·m Range Up To 330 km Electric Truck F22 High Performance Pickup





F22 Introduction

Vehicle modeling:
The whole car shape is full and sturdy, the body lines are hard and sharp, showing the American cross-country tough guy style. Family-style front face design, four-span grille, the center of the chrome material shows more delicate sense.



Power performance:
63 kWh battery from Ningde Times, max power 70kW, max torque 230N·m, range up to 330km.



Off-road performance:
The F22 adopts a high-end professional off-road SUV chassis platform, with two vertical and nine horizontal chassis and variable cross-section trapezoidal structure, which is stable and sturdy.



Interior Configuration:
The vehicle is equipped with ABS, EBD, seatbelt warning, high-strength heat-insulating glass, three-point safety ground and other features.



F22 Parameters

F22 Technical Specifications
DRIVE MOTOR DESCRIPTION
Motor Type Permanent magnet synchronous
Number of Driving Motors single motor
Drive mode 2WD
Motor Layout Front
Maximum Power(kW) 70
Maximum Torque(N.m) 230
Maximum speed(Km/h) 90
BATTERY PACK DESCRIPTION
Battery Type lithium iron phosphate battery
Battery capacity(kW.h) 63
CLTC range(km) 330
EXTERIOR DESCRIPTION
Length*Width*Height(mm) 5330*1870*1864
Wheelbase(mm) 3100
Wheel Track Front/Wheel Track Rear(mm) 1580/ 1580
Approach angle/ Departure angle(°) 28/26
Curb Weight (kg) 1885
CHASSIS DESCRIPTION
Front Suspension Double wishbone coil spring independent suspension
Rear Suspension
Non-independent suspension with leaf springs
Front Brakes/ Rear Brakes Disc brakes/ Drum brakes
Parking Brake Electronic Parking Brake
Drive Type FF
Transmission type 6-Speed munual gearbox
Steering Form Hydralic power steering
Tire Size 245/ 70 R17
ABS/ EBD Standard
BODY DESCRIPTION
Body Structure Four- door, Five - seat Pickup
Seats Number 5
Seat Belt Type three-pointed
Number of airbags 2
Air Conditioning Manual air conditioning



Detailed display pictures

Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance 0
Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance 1
Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance 2


Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.

Max Torque 230 N·m Range Up To 330 Km Electric Pickup Truck F22 High Performance 3



Questions Related to New Energy Vehicle

1, The status of China's development in the new energy automobile industry and its position in the international new energy automobile industry.

Did you know that Chinese automobile technology is developing very fast? Note some background information:

-In 2010, China became the world's largest automaker.

-In 2016, Chinese car production was about 28 million units > Japanese car production. American car production. South Korean car production.

China produced 700000 new energy vehicles in 2016, the world's largest, more than any other country.

- In 2017, China produced 860000 new energy vehicles, the largest in the world, surpassing other countries' total production of new energy vehicles.

- In 2018, Beijing's latest production standards for electric vehicles were well above European standards.

Starting in 2016, China's electric vehicle manufacturing technology is ahead of the world, and it will issue China's V standard (Europe's V technology is the same). In 2020, China will use the standard Europe's sixth largest in order to reduce the production of petroleum-fueled vehicles. To promote the development of new energy vehicles, China will stop manufacturing petroleum-based vehicles in 2025, and all new energy vehicles will be produced. At present, the automobile factory in China has basically realized the automation of the automobile production.



2, Category of new energy vehicle

EV types according to maximum speed and range: slow speed EV( under 50Km/h), middle speed(60-95Km/h) and high speed( above 100Km/h)

EV types according to power: pure electric car( with Li battery and hydrogen battery, hybrid car(gasoline, diesel or CNG + electric power)

EV types according to usage: passenger EV( sedan, suv and bus), business EV(van, MPV) and logistic EV(cargo truck)



3,Cost of EV manufacture

Taking the electric bus for example: if the manufacture cost of diesel bus just 1, the cost of electric bus with same length would be 4 times of diesel bus and the cost of hybrid bus would be 3 times of its combustion type bus.

Taking the passenger EV for example, if the cost of petroleum combustion passenger car would be 10,000 USD, the low speed pure electric car’s cost also be 10,000 USD, the middle speed one would be 20,000 USD and high speed one would be 30,000-40,000USD, and hybrid passenger car manufacture cost would be 20,000-30,000USD.



4, Why has China become the world's leader in the development of new energy vehicles?

A, The Chinese government attaches great importance to the development of electric vehicles as a strategic opportunity to overtake the western developed countries.

B, As the second largest economy, China has a strong national strength, to develop new energy vehicles as a national strategy, invested a lot of money, new energy car consumers to provide huge government subsidies (50 percent).

C, After 40 years of reform and development, China has achieved tremendous economic and technological development.China has the industrial foundation of the entire industrial chain necessary for the development of new energy vehicles.

D, China's huge new energy electric vehicle market, provides the necessary conditions for China to become the world leader in the development of new energy vehicles.



5, About the traditional petroleum fuel vehicle and new energy Electric Vehicle assembly Plant Project

A, Conventional petroleum fuel vehicles and new energy Electric vehicle assembly plant production lines are basically the same, if reasonable arrangement they can be co-production.

B,We will develop electricl and fuel vehicle models of the same type, maximizing efficiency

C, If SKD assembly lines, the cost of equipment will be 0.5-0.8 million USD; if CKD model of lines equipment, the cost will be 1-1.2million USD.



6,Customized new Energy electric vehicles

New Energy electric vehicle manufacturing cost is high, technical parameters are not higher the better, especially high-speed electric vehicle cost is very high, should according to market requirements, to develop suitable for the market electric vehicles

The South Asian market should be dominated by medium-and low-speed vehicles. In fact, we are not able to fully fuel the standard requirements of electric vehicles, with the development of electric vehicle technology, the gap will be reduced



7,The battery power charging instructions:

Low speed electric vehicles generally only support slow charge mode;

The low-speed four-wheel electric vehicle is a modern new energy vehicle. Its advantage is that it is not affected by soaring oil prices and is mainly powered by electricity. Therefore, the battery of the low-speed four-wheel electric vehicle is the core. Therefore, the correct charging method is very important. Determine the battery life. When charging the battery with a charger, plug in the charger's output plug, and then plug in the AC input plug. After charging, unplug the AC power supply, then unplug the charger output plug. In general, excessive discharge and overcharge of batteries are harmful. So charge it, don't overdo it. Electricity. The service life of low-speed four-wheel electric vehicle battery is related to its discharge depth. Lead acid batteries, in particular, cannot run out of electricity for long periods of time. Therefore, in order to extend the low-speed four-wheel electric vehicle service life, must maintain the battery, correctly charged.

High-speed electric vehicles not only support slow charge mode, but also support fast charge and quick change, more convenient.

Charge operator through training before operation. First, switch the switch on the corresponding charging pile knob of the distribution cabinet, the charging pile is electrified, the charging gun is connected to the charging port of the car, and the black switch is confirmed to fasten, (after fastening, the display screen inside the car will automatically light up). Click the touch screen operation screen "start charging", select automatic charging mode, and then swipe the card (stay at the card for 3 seconds). Check the charging information in the car to make sure the charge is started. It is forbidden to start the vehicle during charging to prevent damage to the vehicle and charging pile. After charging is over or in advance, finish charging by swiping the card, then unplug the charging gun and cover the charge Put the gun cap on the charging post hook. Close the distribution box for charging pile knob switch off before leaving. If abnormal charge or other circumstances should be reported to the doorman security, and report to the relevant leaders. Untrained personnel are prohibited from operating. If the charging pile is damaged by the untrained personnel or not according to the prescribed operation, compensation shall be made according to the price.



8, About battery maintenance and lithium batteries:

In order to extend the service life of a lithium battery as long as possible, we must do the following: when charging, select the right charger, supply the battery with the right voltage and current. When making lithium battery customization or purchase, we should customize or purchase the lithium battery with reasonable protection board to prevent the battery or charging line from abnormal electric power, break the circuit and protect the lithium battery if it is found abnormal. Pay attention to the temperature in daily use. If the temperature is too high, contact the manufacturer in time to avoid failure and irreversible damage. At low temperature, the capacity of using lithium battery will decrease. This is a normal phenomenon (usually below 30 degrees below zero), don't worry.



9, About low speed electric vehicle range booster.

The range-increasing device of electric vehicle is to install a small generating set on the low-speed electric vehicle. Charge the battery pack through a small generator set. Typically, when the battery is running out of battery power, start a small generator set to keep the electric vehicle moving. The drawback is that it adds 60 decibels to the weight of the car and to the noise of the small generator set. The advantage is that the range of electric vehicles can be extended.



10, About hybrid cars.

In a broad sense, a hybrid vehicle (Hybrid Vehicle) is a vehicle whose driving system consists of two or more single driving systems that can operate at the same time. The driving power of a vehicle is provided by a single driving system, either individually or jointly, depending on the actual vehicle driving state. A hybrid vehicle is generally referred to as a hybrid electric vehicle (Hybrid Electric Vehicle, HEV),) that uses a traditional internal combustion engine (diesel or gasoline engine) and motor as its power source. Some engines are modified to use alternative fuels, such as Compressed natural gas, propane and ethanol fuels, etc. With more and more strict measures of environmental protection in the world, hybrid electric vehicles (HEVs) have become a key point in vehicle research and development because of their characteristics of energy saving and low emission, and have already begun to be commercialized. The electric power system used in hybrid cars includes high-efficiency enhanced motors, generators and batteries. Batteries include lead-acid batteries, nickel-manganese hydrogen batteries and lithium batteries, and should be able to use hydrogen fuel cells in the future.



Advantages of Our Cooperation on Auto Assembly Project

1.Technological advantage: China has become the No.1 auto manufacturing country in the world since 2009, and automobile manufacturing technology has been very mature. Especially the new energy automobile science and technology level is in the world leading position.

2010, China became the largest manufacturer of automobiles in the world.

2016 Chinese auto production about 28 millions units > Japanese cars production + U.S. auto production + Korea auto production

2016, the production of new energy vehicles in China was 700,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .

2017, the production of new energy vehicles in China was 860,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .

2018, the Chinese government released latest news that electric vehicle manufacturing standard is higher than Europe standard.



2.Cost advantage: we are the automobile manufacturing group, the overseas chain operation scale advantage makes the KD parts we offer have higher cost performance ratio.Plus cost savings of difference of importing tariff between CBU and CKD gives our final product absolute competitive advantage.



3.Capital advantage: Auto Manufacturing Group + Capital Group provides sufficient investment funds for overseas chain operations. China's huge capital strength, and the Chinese government's national strategy of Belt and Road, provide a guarantee of sustainable growth for overseas chain auto assembly plant projects . With the development of parts localization, the industrialization of the project country will be greatly improved; this is a national win-win strategy.



4.Operational advantage: Over the past 10 years, eight overseas joint ventures have been successfully managed and operated. Our overseas joint venture projects include:

1)Syria A&B auto plant;

2)Ghana MKC Auto Co.,Ltd;

3)Angola ATJ-JinBei Auto Co.,Ltd;

4)Eastern Vehicle Co.,Ltd;

5)South Asia Brilliant auto plant;

6)Middle east Brilliance-Bavarian motor Ltd;

8)Mozambique bus assembly plant;



5.Highly efficient, customized investment mode:Refined investment schemes tailored to local conditions make it possible for highly capitalized, high-tech automotive manufacturing projects to be available in developing countries; our core competitiveness include: under the win-win principle, we actually provide manufacturing technology, invest in critical equipment, train local workers, transfer manufacturing technology, and provide guaranteed financial credit support. According to the actual situation of the project, provide the customized project implementation plan (step by step, decompose the big goal into several small tasks that can be implemented step by step).



6.Excellent win-win cooperation mode:Portfolio of complementary advantages: China invests in technologies that are not available locally, key facilities; local investors have land, plant, general equipment and liquidity.

Cooperation to make up for each others weakness : China is good at production management, technical advantages, local partners are familiar with the local market, government network.

Local partner holding majority can fully mobilize the work enthusiasm of the partner.

Local partner holding majority can be regarded as national industry, easier to obtain government preferential policy support and government orders. It is easier to get more support from banks and consumers, and the joint factory will be identified as national industry; it will be easier and better to run complex social relationships that are conducive to the development of enterprises.

In short, only unity of interests results in cooperation cohesion and win-win cooperation can have sustainable growth.



7.The profiting mode of the KD assembly plant project is to make effective use of the tariff difference and freight between CBU and KD parts, and combine with the subsidy policy of local government industrial development to produce the products which are good and cheap and meet the needs of the market.



Quantification of profit sources:

A. Chinese cars have the highest cost performance ratio and very strong market competitiveness. (the advantage is about 20-30%)

B.By importing CKD, you can save tariffs and freight compared to the CBU term.-SKD/CKD terms compared to the CBU terms, import tariffs have a 25-35% difference. (25-35%) Price advantage

C.With SKD/CKD, you can ship more goods than CBU, saving freight. (cost savings 5-10%)

D.When you develop the market, there are 4S stores and our technology supply, and you can provide good after-sales service. Parts trade is a new profit growth point. Generally speaking, it accounts for about 20-30% of the total value. (20-30%)

E.You can use your own brand for the car, which is an intangible asset. (total value over50% ) We provide technical support and credit.
