| MOQ: | 1 Unit |
| Price: | USD 25,999 - USD 26, 999 Per Unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 45-60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 pics per year |

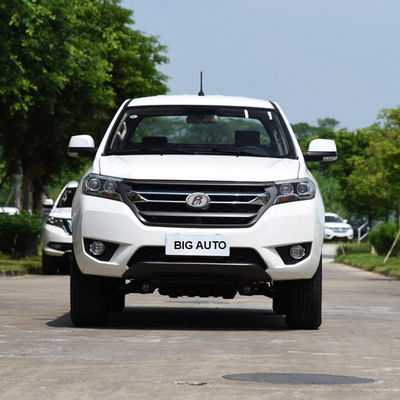

Rang Up To 330 Km Electric Truck F22 Lang Rang Pickup With 63 kWh Battery
F22 Introduction
Vehicle modeling:
The whole car shape is full and sturdy, the body lines are hard and sharp, showing the American cross-country tough guy style. Family-style front face design, four-span grille, the center of the chrome material shows more delicate sense.
Power performance:
63 kWh battery from Ningde Times, max power 70kW, max torque 230N·m, range up to 330km.
Off-road performance:
The F22 adopts a high-end professional off-road SUV chassis platform, with two vertical and nine horizontal chassis and variable cross-section trapezoidal structure, which is stable and sturdy.
Interior Configuration:
The vehicle is equipped with ABS, EBD, seatbelt warning, high-strength heat-insulating glass, three-point safety ground and other features.
F22 Parameters
| F22 Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent magnet synchronous |
| Number of Driving Motors | single motor |
| Drive mode | 2WD |
| Motor Layout | Front |
| Maximum Power(kW) | 70 |
| Maximum Torque(N.m) | 230 |
| Maximum speed(Km/h) | 90 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | lithium iron phosphate battery |
| Battery capacity(kW.h) | 63 |
| CLTC range(km) | 330 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 5330*1870*1864 |
| Wheelbase(mm) | 3100 |
| Wheel Track Front/Wheel Track Rear(mm) | 1580/ 1580 |
| Approach angle/ Departure angle(°) | 28/26 |
| Curb Weight (kg) | 1885 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Double wishbone coil spring independent suspension |
| Rear Suspension |
Non-independent suspension with leaf springs
|
| Front Brakes/ Rear Brakes | Disc brakes/ Drum brakes |
| Parking Brake | Electronic Parking Brake |
| Drive Type | FF |
| Transmission type | 6-Speed munual gearbox |
| Steering Form | Hydralic power steering |
| Tire Size | 245/ 70 R17 |
| ABS/ EBD | Standard |
| BODY | DESCRIPTION |
| Body Structure | Four- door, Five - seat Pickup |
| Seats Number | 5 |
| Seat Belt Type | three-pointed |
| Number of airbags | 2 |
| Air Conditioning | Manual air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
Questions Related to New Energy Vehicle
1, The status of China's development in the new energy automobile industry and its position in the international new energy automobile industry.
Did you know that Chinese automobile technology is developing very fast? Note some background information:
-In 2010, China became the world's largest automaker.
-In 2016, Chinese car production was about 28 million units > Japanese car production. American car production. South Korean car production.
China produced 700000 new energy vehicles in 2016, the world's largest, more than any other country.
- In 2017, China produced 860000 new energy vehicles, the largest in the world, surpassing other countries' total production of new energy vehicles.
- In 2018, Beijing's latest production standards for electric vehicles were well above European standards.
Starting in 2016, China's electric vehicle manufacturing technology is ahead of the world, and it will issue China's V standard (Europe's V technology is the same). In 2020, China will use the standard Europe's sixth largest in order to reduce the production of petroleum-fueled vehicles. To promote the development of new energy vehicles, China will stop manufacturing petroleum-based vehicles in 2025, and all new energy vehicles will be produced. At present, the automobile factory in China has basically realized the automation of the automobile production.
2, Category of new energy vehicle
EV types according to maximum speed and range: slow speed EV( under 50Km/h), middle speed(60-95Km/h) and high speed( above 100Km/h)
EV types according to power: pure electric car( with Li battery and hydrogen battery, hybrid car(gasoline, diesel or CNG + electric power)
EV types according to usage: passenger EV( sedan, suv and bus), business EV(van, MPV) and logistic EV(cargo truck)
3,Cost of EV manufacture
Taking the electric bus for example: if the manufacture cost of diesel bus just 1, the cost of electric bus with same length would be 4 times of diesel bus and the cost of hybrid bus would be 3 times of its combustion type bus.
Taking the passenger EV for example, if the cost of petroleum combustion passenger car would be 10,000 USD, the low speed pure electric car’s cost also be 10,000 USD, the middle speed one would be 20,000 USD and high speed one would be 30,000-40,000USD, and hybrid passenger car manufacture cost would be 20,000-30,000USD.
4, Why has China become the world's leader in the development of new energy vehicles?
A, The Chinese government attaches great importance to the development of electric vehicles as a strategic opportunity to overtake the western developed countries.
B, As the second largest economy, China has a strong national strength, to develop new energy vehicles as a national strategy, invested a lot of money, new energy car consumers to provide huge government subsidies (50 percent).
C, After 40 years of reform and development, China has achieved tremendous economic and technological development.China has the industrial foundation of the entire industrial chain necessary for the development of new energy vehicles.
D, China's huge new energy electric vehicle market, provides the necessary conditions for China to become the world leader in the development of new energy vehicles.
5, About the traditional petroleum fuel vehicle and new energy Electric Vehicle assembly Plant Project
A, Conventional petroleum fuel vehicles and new energy Electric vehicle assembly plant production lines are basically the same, if reasonable arrangement they can be co-production.
B,We will develop electricl and fuel vehicle models of the same type, maximizing efficiency
C, If SKD assembly lines, the cost of equipment will be 0.5-0.8 million USD; if CKD model of lines equipment, the cost will be 1-1.2million USD.
6,Customized new Energy electric vehicles
New Energy electric vehicle manufacturing cost is high, technical parameters are not higher the better, especially high-speed electric vehicle cost is very high, should according to market requirements, to develop suitable for the market electric vehicles
The South Asian market should be dominated by medium-and low-speed vehicles. In fact, we are not able to fully fuel the standard requirements of electric vehicles, with the development of electric vehicle technology, the gap will be reduced
7,The battery power charging instructions:
Low speed electric vehicles generally only support slow charge mode;
The low-speed four-wheel electric vehicle is a modern new energy vehicle. Its advantage is that it is not affected by soaring oil prices and is mainly powered by electricity. Therefore, the battery of the low-speed four-wheel electric vehicle is the core. Therefore, the correct charging method is very important. Determine the battery life. When charging the battery with a charger, plug in the charger's output plug, and then plug in the AC input plug. After charging, unplug the AC power supply, then unplug the charger output plug. In general, excessive discharge and overcharge of batteries are harmful. So charge it, don't overdo it. Electricity. The service life of low-speed four-wheel electric vehicle battery is related to its discharge depth. Lead acid batteries, in particular, cannot run out of electricity for long periods of time. Therefore, in order to extend the low-speed four-wheel electric vehicle service life, must maintain the battery, correctly charged.
High-speed electric vehicles not only support slow charge mode, but also support fast charge and quick change, more convenient.
Charge operator through training before operation. First, switch the switch on the corresponding charging pile knob of the distribution cabinet, the charging pile is electrified, the charging gun is connected to the charging port of the car, and the black switch is confirmed to fasten, (after fastening, the display screen inside the car will automatically light up). Click the touch screen operation screen "start charging", select automatic charging mode, and then swipe the card (stay at the card for 3 seconds). Check the charging information in the car to make sure the charge is started. It is forbidden to start the vehicle during charging to prevent damage to the vehicle and charging pile. After charging is over or in advance, finish charging by swiping the card, then unplug the charging gun and cover the charge Put the gun cap on the charging post hook. Close the distribution box for charging pile knob switch off before leaving. If abnormal charge or other circumstances should be reported to the doorman security, and report to the relevant leaders. Untrained personnel are prohibited from operating. If the charging pile is damaged by the untrained personnel or not according to the prescribed operation, compensation shall be made according to the price.
8, About battery maintenance and lithium batteries:
In order to extend the service life of a lithium battery as long as possible, we must do the following: when charging, select the right charger, supply the battery with the right voltage and current. When making lithium battery customization or purchase, we should customize or purchase the lithium battery with reasonable protection board to prevent the battery or charging line from abnormal electric power, break the circuit and protect the lithium battery if it is found abnormal. Pay attention to the temperature in daily use. If the temperature is too high, contact the manufacturer in time to avoid failure and irreversible damage. At low temperature, the capacity of using lithium battery will decrease. This is a normal phenomenon (usually below 30 degrees below zero), don't worry.
9, About low speed electric vehicle range booster.
The range-increasing device of electric vehicle is to install a small generating set on the low-speed electric vehicle. Charge the battery pack through a small generator set. Typically, when the battery is running out of battery power, start a small generator set to keep the electric vehicle moving. The drawback is that it adds 60 decibels to the weight of the car and to the noise of the small generator set. The advantage is that the range of electric vehicles can be extended.
10, About hybrid cars.
In a broad sense, a hybrid vehicle (Hybrid Vehicle) is a vehicle whose driving system consists of two or more single driving systems that can operate at the same time. The driving power of a vehicle is provided by a single driving system, either individually or jointly, depending on the actual vehicle driving state. A hybrid vehicle is generally referred to as a hybrid electric vehicle (Hybrid Electric Vehicle, HEV),) that uses a traditional internal combustion engine (diesel or gasoline engine) and motor as its power source. Some engines are modified to use alternative fuels, such as Compressed natural gas, propane and ethanol fuels, etc. With more and more strict measures of environmental protection in the world, hybrid electric vehicles (HEVs) have become a key point in vehicle research and development because of their characteristics of energy saving and low emission, and have already begun to be commercialized. The electric power system used in hybrid cars includes high-efficiency enhanced motors, generators and batteries. Batteries include lead-acid batteries, nickel-manganese hydrogen batteries and lithium batteries, and should be able to use hydrogen fuel cells in the future.
|
|
