| MOQ: | 1 Unit |
| Price: | Pls Contact us for a detailed quote |
| Standard Packaging: | Nude Packing if CBU Wooden Case+Pallet+Steel Frame +Carton if SKD or CKD |
| Delivery Period: | 45-60 working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 1,000 Units per Year |

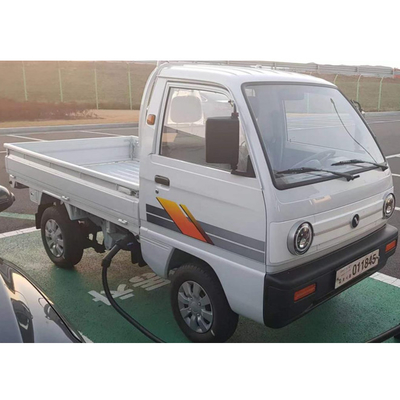

Low Usage Cost Electric Mini Truck VRAVO Maximum Available Load Capacity 900kg
VRAVO Features
Energy efficient and environmentally friendly:
It can travel up to 180 kilometres on a single charge and has low operating costs. And with electricity as the power source, it helps to improve the environment by significantly reducing tailpipe emissions.
Compact and flexible:
VRAVO Length: 3625, Width: 1400, Height: 1800, Wheelbase: 2000. The compact size of the vehicle makes it suitable for travelling through city streets and busy commercial streets to improve delivery efficiency.
Low maintenance costs:
Electric trucks have a relatively simple mechanical structure, without complex fuel system and emission control system, so the maintenance cost is low. In addition, the electric motor has a long service life and does not require regular oil and filter changes.
VRAVO Parameters
| VORAVO Parameters | ||
| Basic Parameters | Length*Width* Height(mm) | 3625*1400*1800 |
| Wheel Base(mm) | 2000 | |
|
Front Wheel Track (mm)/ Rear Wheel Track (mm) |
1220/1210 | |
| Min. Clearance From Ground(mm) | 150 | |
| Curb Weight (kg) | 865 | |
| Recommended Load Capacity(mm) | 800 | |
| Cargo Box/ Seater (cm) |
1340*2260*290 (Inner Dimension) |
|
| Maximum Available Load Capacity(kg) | 900 | |
| maximum Speed(km/h) | 85 | |
| Maximum climbing slope | over 30% | |
| Singer Charging Driving Range (km) | 180km (Urban Mode) | |
| Motor | Motor Model | Innovance |
| Motor Type | Permanent Magenet Synchronous Motor | |
| Cooling Type | Water Cooling | |
| Peak Power (kW/ rpm) | 60 | |
| Rated Power (kW/ rpm) | 32 | |
| Maximum Motor Speed (rpm) | 9000 | |
| Peak Torque (N.m/ rpm) | 220N.m | |
| Power Type | Pure Electric | |
| Battery | Battery Cell Brand | Hangtien Lithium Battery |
| Cooling Type | Air Cooling | |
| Battery Heating Device | PTC2.0KW | |
| Battery Rated Voltage (V) | 358.4 | |
| Battery Capacity (kWh) | 21.5kWh | |
| Charge | Car Charge Power | 3.3 Kw |
| Slow Charging Interface (ac) | Traditional Vehicle Refueling Port | |
| Quick Charging Interface (dc) | GBT/CCS1/CCS2 | |
| Charging Interface With Lock | Slow Charging With Lock Only | |
| Slow Charging Time (Meter Power From 5%To 10% ) | 5-7h | |
| Fast Charging Time (SOC :10% - 80% , Room Temperature: 25%) | 0.5h | |
| Chassis | Number of Gears | R/N/D |
| Variable Speed Operation Form | Electronic Control | |
| Driving Type | Rear Drive | |
| Front Suspension Type | MacPherson Independent Suspension | |
| Rear Suspension Type | Leaf Spring | |
| Front Wheel Brake | Disc | |
| Real Wheel Brake | Drum | |
| Parking Brake Type | Hand Brake | |
| Tire Specifications | 175/60/R13 | |
| Body | Body Structure | Frame on Body |
| Number of Car Doors | 2 Doors | |
| Seat Belt | Three- Point Type | |
Detailed pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
