| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 5000-30000units |

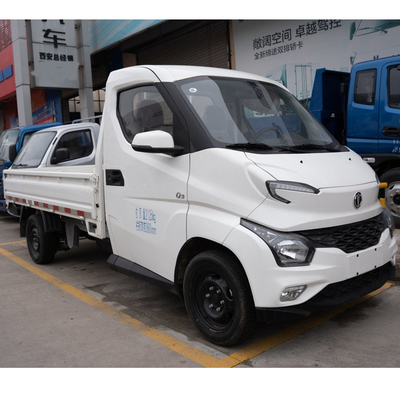

1T Durable Gasoline Mini Truck Q3 Single Row Seat High Load Capacity Trucks
Q3 Overall Introduction:
Stylish Appearance:
The appearance is new and trendy: Breaking through the traditional logistics vehicle design, the whole vehicle adopts the design language of fluid force, stylish appearance, front line tension, dynamic waistline, cool shape.
Configuration of C-shaped design daytime running lights and family shaped front fog lamps, beautiful atmosphere, full sense of technology, while ensuring that the driver's safety in bad weather driving.
The whole vehicle is designed with reference to the passenger car standard, and the first-step pedal ensures the convenience for drivers and passengers to get on and off the vehicle.
High safety performance:
System and component test verification: Complete DVP&R verification fully guarantees the quality of product design. A total of 310 tests are conducted from system to parts and then to the whole vehicle, with all-round and multi-angle verification.
Whole vehicle road test verification: Carry out 15,000km intensive road test and 30,000km comprehensive road test, and add 10,000km verification mileage for key parts.
Vehicle three-high test verification: For high-temperature, high plateau and high-cold environments, carry out corresponding field calibration work and road verification.
Body Passive Safety: The proportion of high-strength steel used in the body skeleton reaches more than 60%, creating a crash-safe body structure.
Chassis active safety:15-inch tires and large disc brakes improve driving and braking stability, leading the class.
Strong power:
The maximum climbing degree can reach 44% with full load, which is the absolute leading level in the same class.
Strong loading capacity: 1.5-ton rear axle, with large brakes, strong load-bearing capacity and high safety performance, rest assured! Adopt wheel bearing maintenance-free design, saving time for daily maintenance, save your heart.
Q3 parameters
| Q3 parameters | ||
| Fuel type | gasoline | |
| Cabin | single row seat | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5400×1680×2010 |
| Dimensions of the cargo body(LxWxH)mm | 3300×1590×380 | |
| Driving type | 4×2 | |
| Wheel base (mm) | 3200 | |
| Wheel track (front/rear) (mm) | 1410/1440 | |
| Min. ground clearance (mm) | 133 | |
| Weight data | Curb weight (kg) | 1250 |
| Rated payload(kg) | 1000 | |
| Persons in cab (persons) | 2 | |
| Gross vehicle weight(kg) | 2380 | |
| Whole vehicle main performance | Max. speed(km/h) | 110 |
| Max. slope of climb(%) | 34 | |
| Min. turning radius(m) | 6 | |
| Engine | Model | M16KR EURO VI M16KR |
| Type | Horizontal | |
| Displacement(L) | 1.597 | |
| Rated power(KW/rpm) | 85kw/6000rpm | |
| Max torque (N.m/rpm) | 152Nm/4200rpm | |
| Steering gear | EPS | |
| Brake system | Service brake | Oil brake |
| Parking brake | Rear brake | |
| Tyre size | 185R15LT | |
| Electric device | Rated voltage (V) | 12 |
| Battery | 6-QW-45MF | |
Detailed display pictures
|
|
