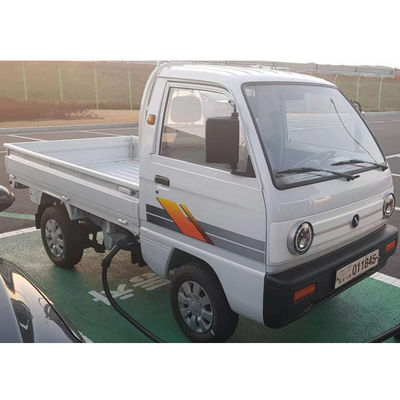

Low Usage Cost Electric Mini Truck VRAVO Maximum Available Load Capacity 900kg

Low Usage Cost Electric Mini Truck VRAVO Maximum Available Load Capacity 900kg

MOQ: 1 Unit
Price: Pls Contact us for a detailed quote
Standard Packaging: Nude Packing if CBU Wooden Case+Pallet+Steel Frame +Carton if SKD or CKD
Delivery Period: 45-60 working days
Payment Method: T/T, L/C
Supply Capacity: 1,000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
VRAVO
Product Name:
Electric Mini Truck VRAVO
Length*Width*Height(mm):
3625*1400*1800
Wheel Base (mm):
2000
Front Wheel Track/rear Wheel Track(mm):
1220/1210
Min. Clearance From Ground (mm):
150
Curb Weight(Kg):
865
Recommended Load Capacity (kg):
800
Max Available Load Capacity(kg):
900
Maximum Speed (km/h):
85
Maximum Climbing Slope:
Over 30%
Minimum Order Quantity:
1 Unit
Price:
Pls Contact us for a detailed quote
Packaging Details:
Nude Packing if CBU Wooden Case+Pallet+Steel Frame +Carton if SKD or CKD
Delivery Time:
45-60 working days
Payment Terms:
T/T, L/C
Supply Ability:
1,000 Units per Year
High Light:

CVVT 4 Door 5seats Sedan Cars

,

EURO5 4 Door Sedan Cars

,

2652 mm 4 Door Sedan Cars

Product Description

Low Usage Cost Electric Mini Truck VRAVO Maximum Available Load Capacity 900kg





VRAVO Features

Energy efficient and environmentally friendly:
It can travel up to 180 kilometres on a single charge and has low operating costs. And with electricity as the power source, it helps to improve the environment by significantly reducing tailpipe emissions.



Compact and flexible:
VRAVO Length: 3625, Width: 1400, Height: 1800, Wheelbase: 2000. The compact size of the vehicle makes it suitable for travelling through city streets and busy commercial streets to improve delivery efficiency.



Low maintenance costs:
Electric trucks have a relatively simple mechanical structure, without complex fuel system and emission control system, so the maintenance cost is low. In addition, the electric motor has a long service life and does not require regular oil and filter changes.



VRAVO Parameters

                        VORAVO Parameters
Basic Parameters Length*Width* Height(mm) 3625*1400*1800
Wheel Base(mm) 2000

Front Wheel Track (mm)/

Rear Wheel Track (mm)

1220/1210
Min. Clearance From Ground(mm) 150
Curb Weight (kg) 865
Recommended Load Capacity(mm) 800
Cargo Box/ Seater (cm)

1340*2260*290

(Inner Dimension)

Maximum Available Load Capacity(kg) 900
maximum Speed(km/h) 85
Maximum climbing slope over 30%
Singer Charging Driving Range (km) 180km (Urban Mode)
Motor Motor Model Innovance
Motor Type Permanent Magenet Synchronous Motor
Cooling Type Water Cooling
Peak Power (kW/ rpm) 60
Rated Power (kW/ rpm) 32
Maximum Motor Speed (rpm) 9000
Peak Torque (N.m/ rpm) 220N.m
Power Type Pure Electric
Battery Battery Cell Brand Hangtien Lithium Battery
Cooling Type Air Cooling
Battery Heating Device PTC2.0KW
Battery Rated Voltage (V) 358.4
Battery Capacity (kWh) 21.5kWh
Charge Car Charge Power  3.3 Kw
Slow Charging Interface (ac) Traditional Vehicle Refueling Port
Quick Charging Interface (dc) GBT/CCS1/CCS2
Charging Interface With Lock Slow Charging With Lock Only
Slow Charging Time (Meter Power From 5%To 10% ) 5-7h
Fast Charging Time (SOC :10% - 80% , Room Temperature: 25%) 0.5h
Chassis Number of Gears R/N/D
Variable Speed Operation Form Electronic Control
Driving Type  Rear Drive
Front Suspension Type MacPherson Independent Suspension
Rear Suspension Type Leaf Spring
Front Wheel Brake Disc
Real Wheel Brake Drum
Parking Brake Type Hand Brake
Tire Specifications 175/60/R13
Body Body Structure  Frame on Body
Number of Car Doors 2 Doors
Seat Belt Three- Point Type





Detailed pictures

Low Usage Cost Electric Mini Truck VRAVO Maximum  Available Load Capacity 900kg 0



Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
