| MOQ: | 1 Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |

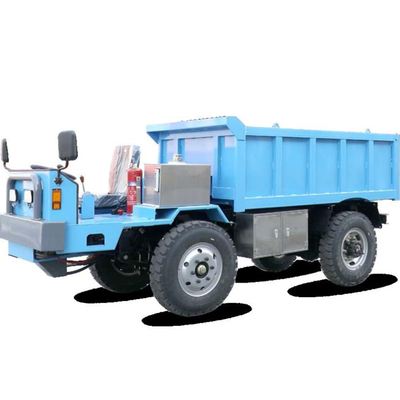

Electric Underground Dump Mini Truck BJ-4E Good Controllability And Safety Truck
Electric Underground Dump Mini Truck BJ-4E Introduction
The Electric Underground Dump Dumper is an electric transport vehicle designed for underground engineering, tunnelling and mining operations. It combines the environmental advantages of the electric drive system with the efficient loading and unloading capability of the tipper, aiming to provide a safe, efficient and environmentally friendly material handling solution. The following are the main features and performance parameters of the electric underground dump dumper:
Design features:
Electric drive system: Adopting advanced electric motor and battery pack, no tail gas emission, reducing the pollution of underground operation environment.
Self-unloading mechanism: Equipped with hydraulic system, it can complete the unloading of materials quickly and easily and improve the operation efficiency.
Manoeuvrability: The cockpit is reasonably designed and easy to operate, even in the narrow underground space, it can be flexibly controlled.
Safety: Equipped with emergency stop button, anti-skid tyres, brake system and other safety facilities to ensure the safety of drivers and operators.
Performance parameters:
Load capacity: the vehicle is rated to carry 4 tonnes.
Mileage: Load range can reach 7.5 hours to meet the requirements of continuous operation.
Climbing ability: the maximum load climbing degree is 14 ° with good climbing performance, can be in the underground complex terrain smooth driving.
Speed: Maximum travelling speed is 25km/hour, which ensures both operational efficiency and safety.
Advantages:
Environmentally friendly: no exhaust emissions, reducing pollution of the underground environment.
Economical: Electric drive reduces energy costs and maintenance costs.
Efficient: Self-dumping mechanism simplifies the loading and unloading process and improves operational efficiency.
Safety: Good controllability and safety design reduces operational risks.
Parameters of BJ-4E New Energy Underground Dump Truck
|
Parameters of BJ-4E New Energy Underground Dump Truck |
|||
|
Dimensions (L x W x H) |
4091x1300x2024mm (axle width 1505mm) |
Maximum speed backward |
25Km/h |
|
Overall mass |
2300kg |
Traveling motor power |
11kw |
|
Trunk volume |
1.4lm |
Front steering axle brand |
130 |
|
Rated load capacity |
4000kg |
Rear drive axle brand |
Wan Teng Axle |
|
Maximum traction force |
30KN |
Rear drive axle model |
1069 |
|
Maximum machine height when unloaded |
2924mm |
Lithium battery pack |
Ningde Times battery cell |
|
Loading height |
1421mm |
Lithium battery pack |
Lithium ternary |
|
Minimum ground clearance |
300mm |
Li-ion Battery Capacity |
470Ah 72V |
|
Minimum turning radius (outside) |
6050mm |
Li-ion Battery Pack Energy |
33Kwh |
|
Approach angle |
28° |
Charging System Input Voltage |
220V AC |
|
Climbing capacity (heavy load) |
14° |
Charging system output Voltage |
76V DC |
|
Maximum Lift Angle |
45° |
Charging system output current |
60A |
|
Trunk Lifting Time |
15s |
No-load leveling time |
11.5h |
|
Trunk Lowering Time |
10s |
Heavy load level running time |
7.5h |
|
Maximum speed forward |
25Km/h |
Average level running time |
9.5h |
|
Charging time |
8h |
|
|
Customer Cases
