|Place of Origin:||CHINA|
|Minimum Order Quantity:||1|
|Price:||USD10,999.00-USD11,999.00 / Unit|
|Packaging Details:||Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD|
|Delivery Time:||60 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||100000 Units per Year|
|Height:||1864mm||Transmission:||5 Speed Manual|
|Engine Power:||100KW (136HP)||Drive Type:||4x2 Drive|
4x4 pickup truck,
mini pickup trucks

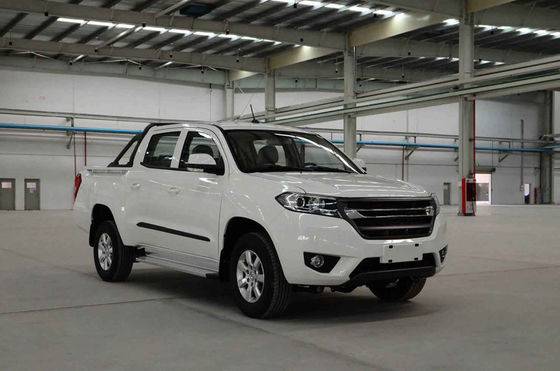

Assembly of Small Pickup Trucks with Gasoline Engine 2WD in KD Kits
Six main advantages of assembling the 2WD Gasoline Small Pickup Trucks in local:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.
1. Description of the 2WD Gasoline Small Pickup Trucks:
|Double Cabin Pickup Truck - Model 1030|
|Version||1030 Gasoline 2WD Deluxe||1030 Gasoline 2WD Standard|
|Engine||2.4L 136 Horse Power||2.4L 136 Horse Power|
|Transmission||5 Speed Manual||5 Speed Manual|
|Overall Dimensions (mm)||5219*1870*1864||5219*1870*1844|
|Actual Fuel Consumption||11.5||11.5|
|Theoretical Fuel Consumption||10.4||10.4|
|Front Wheel Base (mm)||1580||1580|
|Rear Wheel Base (mm)||1580||1580|
|Curb Mass (kg)||1740||1740|
|Vechicle Type||Pickup Truck||Pickup Truck|
|Fuel Tank Capacity(L)||72||72|
|Air Intake Type||Natural Aspirated||Natural Aspirated|
|Cylinder Spread Pattern||L||L|
|Number of Cylinder||4||4|
|Air Valve in Each Cylinder||4||4|
|Maximum Power Speed(rpm)||5250||5250|
|Maximum Torque Speed(rpm)||3000||3000|
|Fuel Supply Type||Multi-Point Injection||Multi-Point Injection|
|Cylinder Head Material||Aluminum||Aluminum|
|Cylinder Body Material||Iron||Iron|
|Emission||Euro V||Euro V|
|Type||Manual Transmission(MT)||Manual Transmission(MT)|
|Front Suspension||Double Wishbone Independent Suspension||Double Wishbone Independent Suspension|
|Steering||Hydraulic Power Steering||Hydraulic Power Steering|
|Body Structure||non-integrated type||non-integrated type|
|Front Brake Type||Ventilated Disc||Ventilated Disc|
|Rear Brake Type||Drum||Drum|
|Parking Brake Type||Hand||Hand|
|Front Tyre Size||245/70R17||235/70 R16|
|Rear Tyre Size||245/70R17||235/70 R16|
|Spare Tyre||Full Size||Full Size|
|Dual Airbags||Driver side● / Co-driver side●||-|
|Seatbelt Unfastening Warning System||●||●|
|Steering Wheel Adjusting Type||Up and Down||Up and Down|
|Steering Wheel w/Audio and Bluetooth||●||-|
|Visual Imaging System||●||-|
|Seat Material||Leather||Imitation leather|
|The Central Armrest||Front● / Rear-||Front● / Rear-|
|Sound Source Connector||USB+AUX||USB+AUX|
|Full Beam Headlight||Halogen||Halogen|
|Electric Height-adjustable Headlamps||●||●|
|Window/Rear View Mirror|
|Electrical Control Rear View Mirror||●||●|
|Electric Control Air Conditioning||Manual/Automatic||Manual/Automatic|
|Remarks: 1. "●"Available "—"Not Available; 2. Length of Vehicle is 5330mm when equipped with Rear Bumper; 3. All the above mentioned quotations are valid for 30 days from the issuing date here.|
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Mode:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
