| MOQ: | 1 |
| Price: | 160000USD |
| Standard Packaging: | steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000units per year |

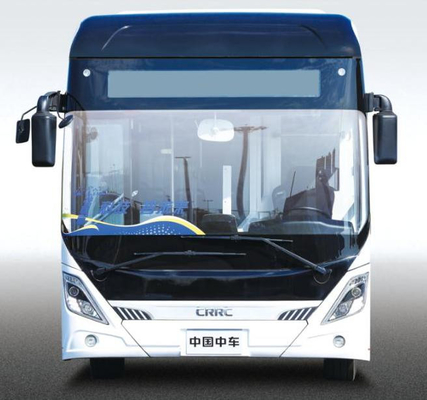

12 Meter Pure Electric Bus TEG6125BEV With Big Capacity Suitable Cities
Vehicle Advantage:
1. Strong transportation capacity: vehicle size: 11950 x 2540 x 3280, can be set 41 seats, can accommodate more passengers. And the vehicle adopts three-door design, which improves the vehicle transportation capacity, transportation efficiency and passenger mobility.
2. High safety performance: Wide-angle cameras are installed in the center of the left and right sides of the body, as well as in the rear of the vehicle. It forms the body surround :system of the vehicle. When the vehicle is reversing or parked at the station, the driver can observe the surrounding situation in real time through the LED liquid crystal display in the center of the working platform.
3. High working efficiency: The bus motor is a "double winding" design, through the cooperation of two sets of windings, the whole power system can always work efficiently under different circumstances. If one set of windings fails, the other set can still work independently, which avoids the phenomenon of the vehicle breaking down and being unable to continue driving due to the failure of the motor part.
|
Model TEG6125BEV Technical Parameters
|
||
| Basic parameters |
Overall dimension(mm)
|
11950×2540×3280
|
|
Passenger capacity (number of seats)
|
43
|
|
|
Approach angle(°)
|
7
|
|
| Departure angle(°) | 7 | |
|
Electric drive and control system
|
Drive motor
|
Permanent magnet synchronous motor, power:100/200(kW)
|
|
Energy storage device
|
Lithium iron phosphate battery :3 15.07 ,338.4kWh;
|
|
|
Motor controller
|
Integrated controller
|
|
|
chassis
|
suspension
|
Air suspension,front 2 and rear 4 airbags
|
|
Front axle
|
7.5T, disc type
|
|
|
Rear axle (axle)
|
13T,disc/drum
|
|
|
tyre
|
11R 22.5 ,18levels
|
|
|
Rim
|
eight point two five × 22.5 ; Steel (optional:aluminumalloy)
|
|
|
braking system
|
With energy storage spring braking, electric transmission auxiliary braking,
ABS anti lock, dual circuit air braking
|
|
| Body |
Passenger door
|
Pneumatic, aluminumalloy,front double back double inner swing (three or four doors are optional)
|
|
Surrounded by drivers
|
Aluminum alloy full enclosure
|
|
|
Handrail
|
Plastic coated steel pipe, diameter 32mm, yellow(optional:aluminum alloy,
stainless steel)
|
|
|
Air duct
|
Foam air duct (optional : panoramic aluminum alloy air duct)
|
|
|
electrical
|
Air conditioner model
|
Cooling and heating electric air conditioner, cooling capacity 32000 kcal
|
|
Defrosting system
|
With driver's area air outlet, high voltage electric defroster 4kw
|
|
|
Other configurations
|
Cathodic electrophoresis, full load body,24H safety monitoring system
|
|
Detail Pictures:
Seats:The number of optional seats is 22-43 (including the driver's seat). 42+1 seat layout:
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
