Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus

Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus

MOQ: 1 unit
Price: 100,000USD- 110,000USD per unit
Standard Packaging: Steel frame
Delivery Period: 60 Working days
Payment Method: L/C, T/T
Supply Capacity: 5000units per year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
TEG6661BEV01
Product Name:
Electric Bus TEG6661BEV01
Overall Dimension (mm):
6645×2250×2870,3020
Front Suspension(mm):
1705
Wheelbase(mm):
3450
Rear Suspension(mm):
1490
Passenger Capacity:
41
Total Mass (kg):
9500
Approach Angle(°):
10
Departure Angle (°):
13
Drive Motor:
Permanent Magnet Synchronous Motor
Minimum Order Quantity:
1 unit
Price:
100,000USD- 110,000USD per unit
Packaging Details:
Steel frame
Delivery Time:
60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
5000units per year
Highlight:

Intelligent management electric bus TEG6661BEV01

,

Energy Saving electric bus TEG6661BEV01

,

electric bus TEG6661BEV01

Product Description

Energy-Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus





Advantages of TEG6661BEV01

The body is compact and easy to move:
Small body, length, width and height 6645×2250×3020mm, wheelbase 3450mm, turning diameter relative to the 8-meter urban and rural transit buses reduced by 10%, can shuttle freely in narrow roads, climbing > 20%, perfectly adapted to urban and rural road conditions.



Passenger and cargo areas are separated:
Two-step, rear flat floor, one-step transition from middle passenger area to rear passenger area, with the best space utilization; the number of seats up to 18, all towards the front direction of the seat arrangement, Ⅰ city bus seat arrangement pitch, increase the number of seats at the same time expanding the standing space; people and baggage partition management, to provide a safer urban and rural operation and more humane riding experience.



Energy-saving and long-lasting driving range:
With the new energy matching, design and control capability of CSR's high-speed railway, the whole vehicle has the top energy economy in the industry, which can maximize the mileage and reduce the operation cost; the high-efficiency permanent magnet motor improves the efficiency by 5%; and the lightweight design reduces the energy consumption by 10%;



Intelligent, check the bus status on your cell phone at any time:
With the characteristic intelligent management platform, it can remotely monitor the current operation status of the vehicle 24 hours a day on the cell phone terminal, provide customer charging management, and give the evaluation and analysis of the driver's operation specification, the vehicle's historical operation routes and energy consumption, and other operation management data; the whole vehicle is waterproof, fireproof, and collision-resistant design.



Model TEG6661BEV01 Detail parameter

Model TEG6661BEV01 Detail parameter
Basic parameters
Overall dimension (mm)
6645*2250*2870, 3020
Front suspension/wheelbase/ rear suspension(mm) 1705/ 3450/1490
Passenger capacity/ seats
41/ 10-22
Approach angle/departure angle(°)
10/ 13
Total mass(kg) 9500
Electric
drive and
control
system
Drive motor
Permanent magnet synchronous motor, power:60/ 100(kW)
Energy storage
device
Lithium iron phosphate battery, 121.13kWh
Motor controller
Integrated controller



Chassis
suspension
Less leaf spring front 3 and rear 4
Front axle
3.5T
Rear axle (axle)
6T
tyre
All steel radial tire 215/ 75R17.5- 16
Rim
Steel
Braking system
With energy storage spring braking, electric transmission auxiliary braking,
ABS anti lock, dual circuit air braking, smart drainage

Body



Passenger door
Pneumatic, aluminum alloy, front single, rear single
inner swing
Surrounded by drivers Optional: Aluminum alloy full enclosure
Handrail plastic coated steel pipe, diameter 32mm,yellow (optional: aluminum alloy, stainless steel)
Air duct Aluminum-plastic duct with LED strip lights, equipped with 5 advertising boards
Electrical
Air conditioner
model
Cooling and heating electric air conditioner, cooling capacity of 14,000 kcal, equipped with PTC
Other configurations
Vehicle cathode electrophoresis, full load body

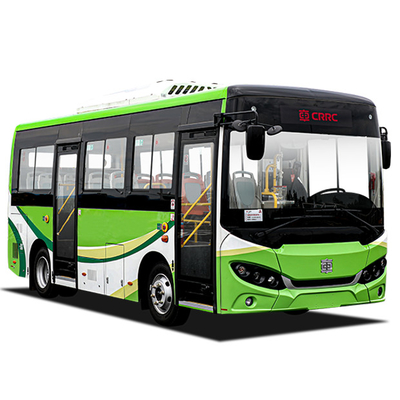

Detail Pictures:

Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus 0Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus 1Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus 2



Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.

Energy Saving Pure Electric Bus TEG6661BEV01 Intelligent Management Bus 3



Advantages of Our Cooperation on Auto Assembly Project

1.Technological advantage: China has become the No.1 auto manufacturing country in the world since 2009, and automobile manufacturing technology has been very mature. Especially the new energy automobile science and technology level is in the world leading position.

2010, China became the largest manufacturer of automobiles in the world.

2016 Chinese auto production about 28 millions units > Japanese cars production + U.S. auto production + Korea auto production

2016, the production of new energy vehicles in China was 700,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .

2017, the production of new energy vehicles in China was 860,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .

2018, the Chinese government released latest news that electric vehicle manufacturing standard is higher than Europe standard.



2.Cost advantage: we are the automobile manufacturing group, the overseas chain operation scale advantage makes the KD parts we offer have higher cost performance ratio.Plus cost savings of difference of importing tariff between CBU and CKD gives our final product absolute competitive advantage.



3.Capital advantage: Auto Manufacturing Group + Capital Group provides sufficient investment funds for overseas chain operations. China's huge capital strength, and the Chinese government's national strategy of Belt and Road, provide a guarantee of sustainable growth for overseas chain auto assembly plant projects . With the development of parts localization, the industrialization of the project country will be greatly improved; this is a national win-win strategy.



4.Operational advantage: Over the past 10 years, eight overseas joint ventures have been successfully managed and operated. Our overseas joint venture projects include:

1)Syria A&B auto plant;

2)Ghana MKC Auto Co.,Ltd;

3)Angola ATJ-JinBei Auto Co.,Ltd;

4)Eastern Vehicle Co.,Ltd;

5)South Asia Brilliant auto plant;

6)Middle east Brilliance-Bavarian motor Ltd;

8)Mozambique bus assembly plant;



5.Highly efficient, customized investment mode:Refined investment schemes tailored to local conditions make it possible for highly capitalized, high-tech automotive manufacturing projects to be available in developing countries; our core competitiveness include: under the win-win principle, we actually provide manufacturing technology, invest in critical equipment, train local workers, transfer manufacturing technology, and provide guaranteed financial credit support. According to the actual situation of the project, provide the customized project implementation plan (step by step, decompose the big goal into several small tasks that can be implemented step by step).



6.Excellent win-win cooperation mode:Portfolio of complementary advantages: China invests in technologies that are not available locally, key facilities; local investors have land, plant, general equipment and liquidity.

Cooperation to make up for each others weakness : China is good at production management, technical advantages, local partners are familiar with the local market, government network.

Local partner holding majority can fully mobilize the work enthusiasm of the partner.

Local partner holding majority can be regarded as national industry, easier to obtain government preferential policy support and government orders. It is easier to get more support from banks and consumers, and the joint factory will be identified as national industry; it will be easier and better to run complex social relationships that are conducive to the development of enterprises.

In short, only unity of interests results in cooperation cohesion and win-win cooperation can have sustainable growth.



7.The profiting mode of the KD assembly plant project is to make effective use of the tariff difference and freight between CBU and KD parts, and combine with the subsidy policy of local government industrial development to produce the products which are good and cheap and meet the needs of the market.



Quantification of profit sources:

A. Chinese cars have the highest cost performance ratio and very strong market competitiveness. (the advantage is about 20-30%)

B.By importing CKD, you can save tariffs and freight compared to the CBU term.-SKD/CKD terms compared to the CBU terms, import tariffs have a 25-35% difference. (25-35%) Price advantage

C.With SKD/CKD, you can ship more goods than CBU, saving freight. (cost savings 5-10%)

D.When you develop the market, there are 4S stores and our technology supply, and you can provide good after-sales service. Parts trade is a new profit growth point. Generally speaking, it accounts for about 20-30% of the total value. (20-30%)

E.You can use your own brand for the car, which is an intangible asset. (total value over50% ) We provide technical support and credit.
