PRODUCTS DETAILS

Home > Products >

RHD & LHD Available Compact And Efficient Front Wheel Drive Gasoline Hatchback

Products

RHD & LHD Available Compact And Efficient Front Wheel Drive Gasoline Hatchback

MOQ:	1 Unit
Delivery Period:	Within 60 working days of receipt of deposit
Payment Method:	L/C,T/T
Supply Capacity:	50,000 Unit per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BIG AUTO

Model Number

F10

Document

F10 Introduction.pdf

Vehicle Model:

F10 Gasoline Hatchback

Overall Dimensions-L*W*H(mm) :

3780*1650*1530

Wheelbase（mm):

2410

Tread/Front/Rear(mm):

1415/1417

Front/Rear Suspension(mm):

790/580

Approach Angle(°) :

16°/15°(Empty Load / Full Load）

Departure Angle(°):

27°/25°(Empty Load / Full Load）

Max.gradability(%):

≤20%

Rated Load Mass（Kg）:

350

Mini.ground Clearance(mm):

170

Minimum Order Quantity:

1 Unit

Delivery Time:

Within 60 working days of receipt of deposit

Payment Terms:

L/C,T/T

Supply Ability:

50,000 Unit per year

Highlight:

LHD Gasoline Hatchback

Front Wheel Drive Gasoline Hatchback

RHD Gasoline Hatchback

Product Description

RHD & LHD Available Compact and Efficient Front-wheel-drive Gasoline Hatchback

Product Introduction: BIG AUTO F10

The BIG AUTO F10 is a compact and efficient front-wheel-drive gasoline vehicle designed for practicality and everyday driving. Engineered with a focus on maneuverability and fuel efficiency, it offers a balanced blend of performance and functionality.

Product Features:

Perfect City Companion: With its compact dimensions (3780mm L x 1650mm W x 1530mm H) and tight 2410mm wheelbase, the F10 excels in navigating congested streets and squeezing into tight parking spots.
Spacious & Practical Cabin: Clever packaging offers surprising interior space relative to its footprint, comfortably seating passengers within the agile frame.
Surprising Capability: Boasts an impressive 170mm minimum unladen ground clearance, combined with a 15° approach angle and 25° departure angle, giving it confident capability over urban obstacles and light rough terrain where larger cars might struggle.
Efficient & Responsive Power: Powered by a proven 1.3L (1298cc) 4-cylinder gasoline engine, delivering a balanced 65kW of power at 5600-6000 rpm and a strong 120N·m of torque. This translates to peppy performance for city driving and highway cruising (capable of 120-130 km/h max speed) while maintaining fuel efficiency using regular No. 92 gasoline. Its 25L fuel tank offers good range.
Confident Handling & Ride: Features a front-wheel-drive layout with a MacPherson independent front suspension for responsive handling and a comfortable ride. The semi-independent torsion beam rear suspension with coil springs provides stability and durability.
Easy & Precise Steering: Equipped with a Rack-mounted Electric Power Steering (EPS) system, ensuring light, effortless maneuverability at low speeds and precise, stable feedback at higher speeds.

Product Parameters:

BODY	Description
LengthWidthHeight (mm)	378016501530
Wheelbases (mm)	2410
Front wheelbase (mm)	1415
Rear wheelbase (mm)	1417
Approach angle (°)	15
Departure angle (°)	25
Min. ground clearance without load (mm)	170
WEIGHT	Description
Curb Weight (kg)	970
Rated Load Mass (kg)	350
ENGINE	Description
Engine displacement (CC)	1298
Position of Engine	Front
Number of cylinders	4
Rated power (kW)	65kW
Rated Rotation Rate (r/min)	5600/6000
Maximum torque (N·m)	120(4000-4600r/min)
Max. Speed (km/h)	120-130
Energy type	Gasoline
Fuel grade	No. 92
Fuel tank volume (L)	25
TRANSMISSION AND CHASSIS	Description
Steering System	Gear rack electric booster
Brake System	Manual mechanical parking brake
Brake System(Front/ Rear)	Front:Disc/ Rear: Drum
Driving method	Front Drive
Front suspension	MacPherson independent suspension
Rear suspension	Semi drag rocker arm independent suspension + Coil Spring

Product Pictures

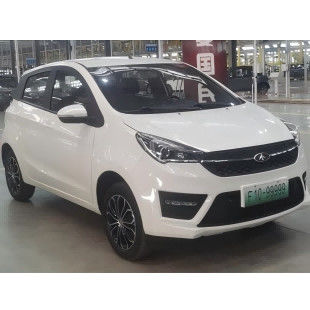

RHD & LHD Available Compact And Efficient Front Wheel Drive Gasoline Hatchback 0

RHD & LHD Available Compact And Efficient Front Wheel Drive Gasoline Hatchback 1
