| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 5000units per year |

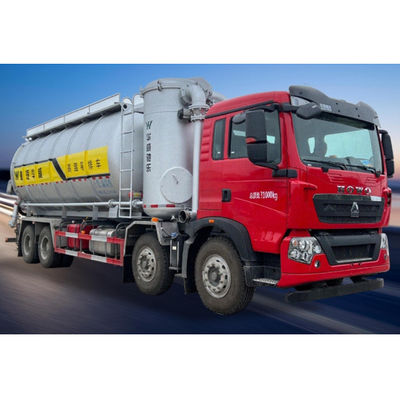

Special Purpose Vehicle Attracting Pressure Delivery Vehicle T5 With Big Capacity
Suction Pressure Delivery Vehicle Product Features:
Suction function: When the vacuum pump is working, negative pressure is formed in the tank through gas conversion, high vacuum degree and large suction force, it can suck the materials in the feeding bin to the tank of the vehicle at high speed, and the dust of the pumped materials can reach the emission standard of class U through filtering, which is in full with the requirements of environmental protection.
Transport function: After the material is pumped, there is no need to transfer or transhipment, the vehicle is directly transported to the designated position for unloading. As the transport process is sealed, there will not be the slightest dust flying, to avoid causing secondary pollution.
Pressure discharge function: when the materials are transported to the designated receiving bin, the air compressor works (external air source can also be used), and the fluidised materials are all pressed and discharged to the designated receiving bin using compressed air, the whole process is carried out in a fully sealed state, and there will not be any secondary pollution, and it can meet the rapid connection of the external air pipeline on the site.
Recycling function: The filtered dust is recycled into the carrier tank by its own gravity.
Product Parameter
| Product name | HOWO T- Series |
| Product Model | SGZ5310GXYZZ6T5 |
| Chassis Model | ZZ1317N466GF1 |
| Tank volume (m³) | 25.2 |
| Gross mass(kg) | 31000 |
| Rated mass (kg) | 9600,9665 |
| Engine Model | MC07H.35- 60,WP10H400E62 |
| Wheelbase(mm) | 1800+4600+1350 |
Detailed Picture
Company Profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
