| MOQ: | 4 units |
| Standard Packaging: | steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 units/year |
Powerful Intelligent System Electric Car RL7 5-Seat SUV Range Up To 450 Km
General Introduction:

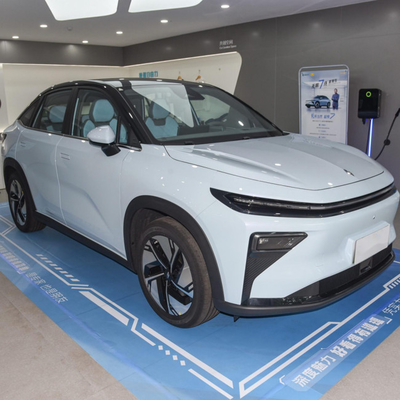

Ⅰ.Appearance:The front face of RL7 adopts a closed grille with slender through LED light bands, which is highly recognizable. Body size 4690/1892/1650mm, wheelbase 2775mm, the whole car looks very robust. The side of the vehicle is smooth and adopts the slippery back design, which is very dynamic.
II. Interior Introduction: RL7 adopts a dual-patch color scheme and uses a large number of faux suede material cladding, the overall texture is superior. With 9.2-inch full LCD instrumentation and 15.4-inch floating center control screen, as well as AR-HUD head-up display, making the cockpit full of technology.
III. Power & Range: The RL7 is equipped with a single motor with two layouts: front-mounted and rear-mounted, and depending on the battery power, it can realize a pure electric range of 450km and 605km in CLTC mode. especially the rear-mounted motor version, which takes only 6.8 seconds to accelerate to zero hundred and 2.8 seconds to accelerate from 0-50km/h.
All in all, the RL7 is a model with great range, excellent exterior design, comfortable interior, spacious driving and riding space, and powerful intelligent systems.
RL7 Technical Specifications
| Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motor |
| Motor Layout |
Front |
| Maximum Power(kW) |
120 |
| Maximum Torque(N.m) |
240 |
| Maximum speed(Km/h) |
150 |
| BATTERY PACK | DESCRIPTION |
| Battery Type |
Lithium iron phosphate battery |
| Rated Power(kW.h) |
50.4 |
|
CLTC(km) |
450 |
|
Fast Charging Time (h) |
0.5h |
|
Battery Fast Charge Range(%) |
80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) |
4690*1892*1650 |
| Wheelbase(mm) |
2775 |
| Wheel Track Front(mm) |
1600 |
| Wheel Track Rear(mm) |
1610 |
| Approach angle |
17% |
| Departure angle |
20% |
| Minimum Turning Radius | 5.4 |
| WEIGHT | DESCRIPTION |
| Curb Weight(Kg) |
1780 |
| Maximum full load weight(Kg) |
2195 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension |
Torsion beam non-independent suspension |
| Front Brakes |
Ventilated Disc Brake |
| Rear Brakes |
Disc Brake |
| Parking Brake |
Electric Parking |
| ABS/EBD | Standard |
| Drive Type |
FF |
| Shift Mode |
Electronic Wye shift |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size |
215/ 60 R17 |
| BODY | DESCRIPTION |
|
Body Structure |
Five-door, Five-seat SUV |
|
Seat Belt Type |
Three-Poin |
|
Air Conditioning |
Automatic air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
