25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving

25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving

MOQ: 4
Price: $8990 - $9990
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 working days
Payment Method: L/C, T/T
Supply Capacity: 10,000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
Model A
Product Name:
Electric Car Model A
Vehicle Type:
Solar Car
Fuel Type:
Electric
L*W*H(mm):
3600*1550*1600
Body Structure:
5 Doors / 4 Seats Hatchback
Driver's Position:
LHD
Turning Radius (m):
4.5
Climbing Angle(%):
≤25
Ground Clearance Of Chassis (mm):
220
Power Consumption/100Km (KWH):
6 (ECO )
Minimum Order Quantity:
4
Price:
$8990 - $9990
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 working days
Payment Terms:
L/C, T/T
Supply Ability:
10,000 Units per Year
Highlight:

8KW Electric Car

,

Rear drum FWD AC Electric Car

,

hybrid mileage FWD AC Electric Car

Product Description

25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving





Strengths of Model A

Ⅰ. No range anxiety:

The Max. speed is 90 km/h, and the Max. range in energy-saving mode(ECO)can reach 400 km



Ⅱ. No charging anxiety

Three energy replenishment modes: OBC (household electricity) &solar and battery replacement



Ⅲ. Battery exchange mode

Quickly replace the power battery in 5 minutes;A convenient way like refueling a car



Core technologies of Model A

Ⅰ:Solar Curved Glass Lamination Technology



Ⅱ:Weak sunlight power generation technology



Ⅲ:Sunlight & electric complementary charging mode



Model A Technical Specifications

Technical Specifications
BASIC INFORMATION DESCRIPTION
Body Structure
5 doors / 4 Seats hatchback
L*W*H( mm)
3600*1550*1600
Driver's position LHD
Turning radius (m) 4.5
Ground clearance of chassis (mm) 220
Max. speed( km/h) 90
NEDC Range( km) 301
Curb weight( Kg) 830
SOLAR SYSTEM DESCRIPTION
Solar Chip Type Single-Crystal Silicon
Solar cell process IBC-Interdigitated back contact
Solar panel process Full roof curved glass lamination
Solar panel power (W) 300
Controller type MPPT
BATTERY&CHARGING & MOTOR DESCRIPTION
Battery type Lithium( NCM)
Battery pack warranty 8 Years/120000Km
Battery power (KWH) 23.92
SOC20% Charging time (h) 6
Motor type AC motor
Rated power (KW) 12
Peak horsepower (Ps) 34
Peak torque( N.m ) 110
Number of motors Single motor
CHASSIS & STEERING & WHEEL & BRAKE DESCRIPTION
Front / Rear suspension type

McPherson independent suspension

Trailing arm non independent suspension

Steering type EPS
Tire specifications 165/65R14
Parking brake type Hand brake
Front / Rear brake type Disc / Drum brake



Detailed display pictures

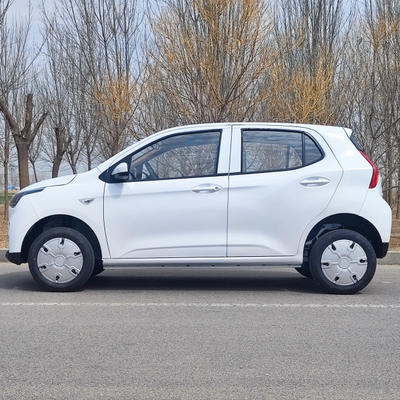

25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving 0

25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving 1



Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.

25KW Electric Car Model A With Solar Pannel Generate Energy For Longer Driving 2



Questions Related to New Energy Vehicle

1. About the traditional petroleum fuel vehicle and new energy Electric Vehicle assembly Plant Project

A, Conventional petroleum fuel vehicles and new energy Electric vehicle assembly plant production lines are basically the same, if reasonable arrangement they can be co-production.

B,We will develop electricl and fuel vehicle models of the same type, maximizing efficiency

C, If SKD assembly lines, the cost of equipment will be 0.5-0.8 million USD; if CKD model of lines equipment, the cost will be 1-1.2million USD.



2. Customized new Energy electric vehicles

New Energy electric vehicle manufacturing cost is high, technical parameters are not higher the better, especially high-speed electric vehicle cost is very high, should according to market requirements, to develop suitable for the market electric vehicles

The South Asian market should be dominated by medium-and low-speed vehicles. In fact, we are not able to fully fuel the standard requirements of electric vehicles, with the development of electric vehicle technology, the gap will be reduced



3. The battery power charging instructions:

Low speed electric vehicles generally only support slow charge mode;

The low-speed four-wheel electric vehicle is a modern new energy vehicle. Its advantage is that it is not affected by soaring oil prices and is mainly powered by electricity. Therefore, the battery of the low-speed four-wheel electric vehicle is the core. Therefore, the correct charging method is very important. Determine the battery life. When charging the battery with a charger, plug in the charger's output plug, and then plug in the AC input plug. After charging, unplug the AC power supply, then unplug the charger output plug. In general, excessive discharge and overcharge of batteries are harmful. So charge it, don't overdo it. Electricity. The service life of low-speed four-wheel electric vehicle battery is related to its discharge depth. Lead acid batteries, in particular, cannot run out of electricity for long periods of time. Therefore, in order to extend the low-speed four-wheel electric vehicle service life, must maintain the battery, correctly charged.

High-speed electric vehicles not only support slow charge mode, but also support fast charge and quick change, more convenient.

Charge operator through training before operation. First, switch the switch on the corresponding charging pile knob of the distribution cabinet, the charging pile is electrified, the charging gun is connected to the charging port of the car, and the black switch is confirmed to fasten, (after fastening, the display screen inside the car will automatically light up). Click the touch screen operation screen "start charging", select automatic charging mode, and then swipe the card (stay at the card for 3 seconds). Check the charging information in the car to make sure the charge is started. It is forbidden to start the vehicle during charging to prevent damage to the vehicle and charging pile. After charging is over or in advance, finish charging by swiping the card, then unplug the charging gun and cover the charge Put the gun cap on the charging post hook. Close the distribution box for charging pile knob switch off before leaving. If abnormal charge or other circumstances should be reported to the doorman security, and report to the relevant leaders. Untrained personnel are prohibited from operating. If the charging pile is damaged by the untrained personnel or not according to the prescribed operation, compensation shall be made according to the price.



4. About battery maintenance and lithium batteries:

In order to extend the service life of a lithium battery as long as possible, we must do the following: when charging, select the right charger, supply the battery with the right voltage and current. When making lithium battery customization or purchase, we should customize or purchase the lithium battery with reasonable protection board to prevent the battery or charging line from abnormal electric power, break the circuit and protect the lithium battery if it is found abnormal. Pay attention to the temperature in daily use. If the temperature is too high, contact the manufacturer in time to avoid failure and irreversible damage. At low temperature, the capacity of using lithium battery will decrease. This is a normal phenomenon (usually below 30 degrees below zero), don't worry.



5. About low speed electric vehicle range booster.

The range-increasing device of electric vehicle is to install a small generating set on the low-speed electric vehicle. Charge the battery pack through a small generator set. Typically, when the battery is running out of battery power, start a small generator set to keep the electric vehicle moving. The drawback is that it adds 60 decibels to the weight of the car and to the noise of the small generator set. The advantage is that the range of electric vehicles can be extended.
