| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |

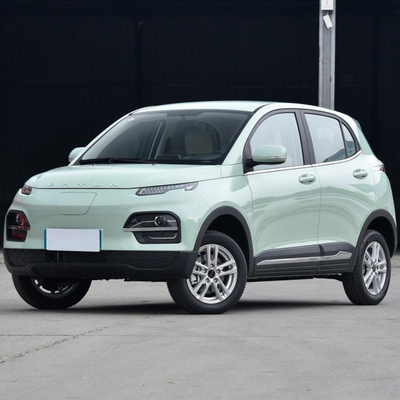

100 Km/h High Speed Electric Car YUE HU New Design Electric 5 Seat Mini SUV
YUE HU Overall Introduction
Appearance: The length, width and height of the car are 3695*1685*1598mm, the wheelbase is 2410mm, the overall space is large and comfortable to drive. The design of the car is simple and full, the front face of the new energy model of the iconic closed grille, together with the two sides of the split headlights, the whole car looks very stylish.
Interior: The car is equipped with a 7-inch LCD instrumentation and an 8-inch center control screen, which has a built-in DYX Smartlink system that supports remote monitoring, remote unlocking, starting the vehicle and other functions.
Power: The maximum power of the drive motor is 35kW, and the peak torque is 105Nm. The battery is equipped with a 30.66kWh Li-ion ternary battery pack, and the range reaches 300km (NEDC working condition).
YUE HU Technical Specification
| YUE HU SPECIFICATIONS | |
| DRIVE MOTOR | DESCRIPION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motors |
| Motor Layout | Front |
| Peak Power | 39 kW |
| Maximum Torque | 125 N.m |
| Max.Speed | 100 Km/ h |
| CLTC Pure Electricity Range | 300 Km |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Ternary lithium battery |
| Battery Capacity | 30.66 kW.h |
| Slow charging time (h) | 6 |
| AC Charging Time (min, 10- 100%) | 0.9h (from 0 to 80%) |
| EXTERIOR | DESCRIPTION |
| Length * Width * Height (mm) | 3695*1685*1598 |
| Wheelbase (mm) | 2410 |
| Wheel Track Front (mm) | 1421 |
| Wheel Track Rear (mm) | 1418 |
| Min. Ground Clearance (mm) | 201 |
| Curb weight (Kg) | 1115 |
| Trunk Volume (L) | 201 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson Independent Suspension+Stabilizer bar |
| Rear Suspension | Mcpherson Independent Suspension+Stabilizer bar |
| Tire Size | 175/ 65 R15 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, five-seat mini SUV |
| Seats Number | 5 |
| Seat Belt Type | Three- Point |
| Number of Airbags | 2 |
| Type of Air Conditioner | Electric Air Conditioning |
Detailed Pictures
FAQ
Q1 What types of payment terms are acceptable?
A:We acceptable T/T, L/C
Q2 What is your minimum order requirement?
A: 1 unit.
Q3 What is your distributor support policy in international markets?
A:We invest technologies and equipment, while our partners provide lands,workshops,
funds, management and marketing.
1. Offering you an easy and quick approach to entering automobile industry
2. Assembling vehicles using KD parts to save cost.
3. Our professional team prepares architectural design and assembly design based
on the end products our partners choose.
4. Our engineers provide job training and technical service on site.
5. Quality control system makes sure vehicles come off our assembly lines get
universal quality
Q4 What is your shipping method and delivery time?
A: Transported by air, container, ro-ro ship. LCL quantities allow one vehicle to be shipped. Orders will be sent via FCL shipping. Usually the delivery time is 15 to 25 days after receiving the deposit.
Q5 What are the advantages of working with us?
A:1. Tariff Gap:Import tariff gap between KD and CBU would be totally translated to profit.
2. Competitive:Auto technologies in China have improved greatly in the last decade.
3. Cheap:Components and parts from China are much cheaper than western counterparts.
4. After-sale Service: Easier access to spare parts and technologies than selling CBU
5. Low Initial Investment:Starting from SKD with only assembly line for only 1 million USD
|
|
