Powerful Motor Small Electric Car EV2 With Intelligent Protection System
EV2 Advantages Introduction
Better Performance in Cruising Range
The cruising range of EV2 is 175km, while the real-world driving range can reach 206km. Equipped with the 30% efficient energy recovery system, low battery reminder and range protection functions, the vehicle can continue to drive about 10 km (at room temperature) even at 0% battery. The double protection methods help solve your EV range anxiety.
Master of Motor and Battery
A high-quality permanent magnet synchronous motor can achieve a maximum power of up to 26KW. Equipped with the SUNWODA lithium iron phosphate battery, its energy density can reach 120wh/kg, with a capacity of up to 15.86KW. Empowered by well-known brands, EV2 makes you feel at ease with more reliable products.
Showcase Strength from the Start
The maximum torque of the high-specification motor of EV2 reaches 84N·m, which is more powerful than the torque of most 1.2L naturally aspirated fuel cars. From the start to acceleration, EV2’s power constantly breaks through boundaries, creating a rapid driving pleasure.
The Best Axle-load Ratio in Its Class
The front-to-rear axle-load ratio of EV2 under full load is 49:51, achieving an excellent balance. With a low-gravity design, its driving maneuverability is superior to its class.
Exclusive Protection Armor of the EIC System
Self-developed EIC protection system creates an electric drive system with small size, light weight, and low energy consumption. Exclusive battery pack, electrical appliance and EIC functional parts can achieve IP67-level dustproof and waterproof functions, chassis protection and other functions, to comprehensively ensure the safety of the EIC system.
All-round Intelligent Master
Equipped with standard ABS+EBD, automatic locking system when speed exceeds 20km/h, hill assist system (HAS), reversing radar and reversing camera system, and tire pressure monitoring system (TPMS), etc., EV2 makes you worry-free during travel by avoiding extra risks with all above systems on guard.
EV2 Technical Specifcations
| EV2 SPECIFICATIONS | |
| DRIVE MOTOR | DESCRIPION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motors |
| Motor Layout | Front |
| Peak Power | 26 kW |
| Maximum Torque | 84 N.m |
| Max.Speed | 100Km/ h |
| CLTC Pure Electricity Range | 201 Km |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Lithium Iron phosphate |
| Battery Capacity | 15.86 kW.h |
| Battery Cooling Method | Air Cooling |
| Battery Energy Density | 122 Wh/kg |
| EXTERIOR | DESCRIPTION |
| Length * Width * Height (mm) | 3500*1646*1460 |
| Wheelbase (mm) | 2340 |
| Wheel Track Front (mm) | 1420 |
| Wheel Track Rear (mm) | 1420 |
| Min. Ground Clearance With Full Load (mm) | 110 |
| Curb Weight (Kg) | 890 |
| Maxmum Load Mass (Kg) | 1190 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson Independent Suspension |
| Rear Suspension | Trailing Arm Non-independent Suspension |
| Front Brakes | Disc Brakes |
| Rear Brakes | Drum Brakes |
| Parking Brake | Hand Parking Brake |
| Drive Type | FF |
| Steering Form | Electric Power Steering |
| Tire Size | 165/ 65 R14 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, Four- seater Hatchback |
| Seats Number | 4 |
| Seat Belt Type | Three- Point |
| Number of Airbags | 2 |
| Type of Air Conditioner | Manual Air Conditioning |

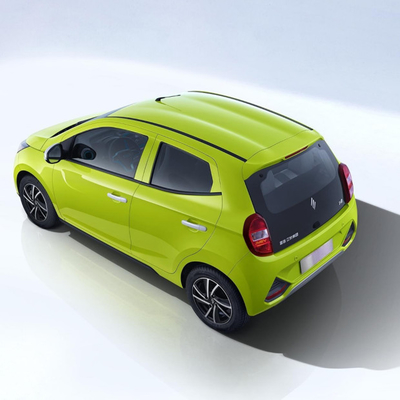

Detailed Pictures
FAQ
Q1 What types of payment terms are acceptable?
A:We acceptable T/T, L/C
Q2 What is your minimum order requirement?
A: 1 unit.
Q3 What is your distributor support policy in international markets?
A:We invest technologies and equipment, while our partners provide lands,workshops,
funds, management and marketing.
1. Offering you an easy and quick approach to entering automobile industry
2. Assembling vehicles using KD parts to save cost.
3. Our professional team prepares architectural design and assembly design based
on the end products our partners choose.
4. Our engineers provide job training and technical service on site.
5. Quality control system makes sure vehicles come off our assembly lines get
universal quality
Q4 What is your shipping method and delivery time?
A: Transported by air, container, ro-ro ship. LCL quantities allow one vehicle to be shipped. Orders will be sent via FCL shipping. Usually the delivery time is 15 to 25 days after receiving the deposit.
Q5 What are the advantages of working with us?
A:1. Tariff Gap:Import tariff gap between KD and CBU would be totally translated to profit.
2.Competitive:Auto technologies in China have improved greatly in the last decade.
3. Cheap:Components and parts from China are much cheaper than western counterparts.
4. After-sale Service: Easier access to spare parts and technologies than selling CBU
5. Low Initial Investment:Starting from SKD with only assembly line for only 1 million USD
|
|
