| MOQ: | 1 unit |
| Price: | USD5,000 - USD 6,000/ Per Unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 60-90days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 5000-30000units |

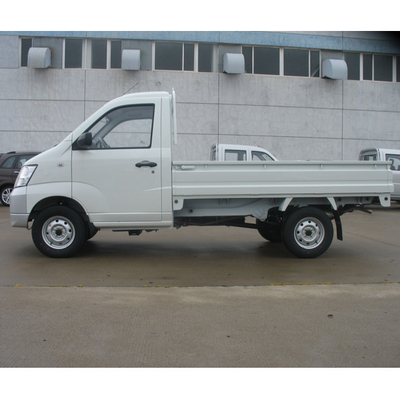

Customized Light Trucks 1.5 Tons Capacity Gasoline Truck Assembly Line
DLX-B03 General Description:
Body appearance: the vehicle is 4.4 meters long, 1.528 meters wide and 1.832 meters high. The wheelbase is 2.74 meters. The single cab can take two people, and the maximum cargo capacity is up to 1.5 tons.
Power: The engine displacement is 1.372 liters, equipped with a 37-liter mailbox. Maximum speed is 130 km/h. Compression ratio is 9.5.
Safety: All seats are equipped with 3-point seat belts and the vehicle is equipped with steering column, face beams, front disc and rear drum brakes, 9'' booster + LSPV, load-sensing pressure proportional valve, steering lock and power steering + power windows.
DLX-B03 Parameters
| DLX-B03 Parameters | |
| Body & Chassis | |
| Overall: L * W * H (mm) | 4400*1528* 1832 |
| Interior size of cargo box: L* W * H (mm) | 2507*1417*344 |
| Wheelbase (mm) | 2740 |
| Tread : Front and Rear (mm) | 1310/ 1310 |
| Minimum turning radius | 5.5 |
| Curb Weight (kg) | 930 |
| Gross Vehicle Weight (kg) | 1920 |
| Seating | 2 |
| Engine | |
| Type | K14B-A |
| Piston displacement | 1372 |
| Bore * Stroke | 73*82 |
| Compression ratio | 9.5 |
| Maximum output | 70/ 6000 |
| Maximum torque | 115/ 3200 |
| Maximum speed (Km/ h) | 130 |
| Emission Level | China Ⅳ |
| Fuel tank (L) | 37 |
| Transmission | |
| Type | Synchromesh |
| Final gear Ratio | 4.3 |
| Steering | Rack and Pinion |
| Suspension |
Front: MacPherson strut and coil spring / Rear: Leaf Spring |
| Brakes |
Front: Ventilated Disc / Rear: Drum, leading and trailing |
| Tyres | 165/ 70R 13LT |
Detailed Pictures
Concept of KD
CBU: Completely Built Units.
SKD Ⅰ: Semi- knocked- down parts, Car bodies are unpainted. Engines, gearboxes, axles and other components are supplied as individual units for assembly.
SKD Ⅱ: Semi- knocked- down parts, car body is fully painted and glazed engines, gearboxes, axles and other components are supplied as individual units for assembly.
CKD: Complete- knocked- down. All materials are supplied loosely for final welding and final assembly, or raw body shell and all other parts are supplied loose and not assembled.
What can we offer to you?
1. Offering you an easy and quick approach to entering automobile industry
2. Assembling vehicles using KD parts to save cost.
3. Our professional team prepares architectural design and assembly design based
on the end products our partners choose.
4. Our engineers provide job training and technical service on site.
5. Quality control system makes sure vehicles come off our assembly lines get universal quality
List of Big Group Oversea Auto Assembly Plant :
1,Syria A & B auto plant;
2,Ghana MKC Auto Co.,Ltd;
3,Nigeria Auto Manufacture Co.,Ltd;
4, Eastern Africa Vehicle Co.,Ltd;
5,Pakistan Topsun Motor Co., Ltd;
6,East Africa Auto Co.,Ltd;
7, Latin RWM Auto Co.,Ltd;
8,Mongolia Taye Auto Co.ltd;
....,
Contact us for more about:
1. Desig of factory production line
2.Equipment supply of auto production line
3. Technology support, guidance and transfer of the auto assembling & production.
4. Staff training
5. Automobile production management
