1.5-Ton Capacity Mini Gasoline Trucks High Speed Customizable Truck Assembly Line

1.5-Ton Capacity Mini Gasoline Trucks High Speed Customizable Truck Assembly Line

MOQ: 1 unit
Price: USD5,000 - USD 6,000/ Per Unit
Standard Packaging: Using Carton, fumigated wood pallet and steel pallet
Delivery Period: 60-90days
Payment Method: T/T, L/C
Supply Capacity: 5000-30000units
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
DLX-B03
Product Name:
Gasoline Mini Truck DLX-B03
Overall Length:
4400
Overall Width:
1528
Overall Height:
1832
Wheelbase:
2740
Minimum Turning Radius:
5.5
Curb Weight:
930
Gross Vehicle Weight:
1920
Engine Type:
K14B-A
Piston Displacement:
1372
Minimum Order Quantity:
1 unit
Price:
USD5,000 - USD 6,000/ Per Unit
Packaging Details:
Using Carton, fumigated wood pallet and steel pallet
Delivery Time:
60-90days
Payment Terms:
T/T, L/C
Supply Ability:
5000-30000units
High Light:

Customizable Truck Assembly Line

,

High Speed Truck Assembly Line

,

1.5-Ton Capacity Truck Assembly Line

Product Description

1.5-Ton Capacity Mini Gasoline Trucks High Speed Customizable Truck Assembly Line





DLX-B03 General Description:
Body appearance: the vehicle is 4.4 meters long, 1.528 meters wide and 1.832 meters high. The wheelbase is 2.74 meters. The single cab can take two people, and the maximum cargo capacity is up to 1.5 tons.



Power: The engine displacement is 1.372 liters, equipped with a 37-liter mailbox. Maximum speed is 130 km/h. Compression ratio is 9.5.


Safety: All seats are equipped with 3-point seat belts and the vehicle is equipped with steering column, face beams, front disc and rear drum brakes, 9'' booster + LSPV, load-sensing pressure proportional valve, steering lock and power steering + power windows.



DLX-B03 Parameters



DLX-B03 Parameters
Body & Chassis
Overall: L * W * H (mm) 4400*1528* 1832
Interior size of cargo box: L* W * H (mm) 2507*1417*344
Wheelbase (mm) 2740
Tread : Front and Rear (mm) 1310/ 1310
Minimum turning radius 5.5
Curb Weight (kg) 930
Gross Vehicle Weight (kg) 1920
Seating  2
Engine
Type K14B-A
Piston displacement 1372
Bore * Stroke 73*82
Compression ratio 9.5
Maximum output 70/ 6000
Maximum torque 115/ 3200
Maximum speed (Km/ h) 130
Emission Level China Ⅳ
Fuel tank (L) 37
Transmission
Type Synchromesh
Final gear Ratio 4.3
Steering Rack and Pinion
Suspension

Front: MacPherson strut and coil spring /

Rear: Leaf Spring

Brakes

Front: Ventilated Disc /

Rear: Drum, leading and trailing

Tyres 165/ 70R 13LT

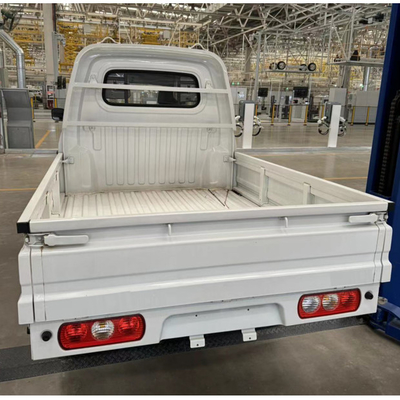

Detailed Pictures

1.5-Ton Capacity Mini Gasoline Trucks High Speed Customizable Truck Assembly Line 0



Advantages of establishing an automobile assembly plant in Africa

1. **Market Potential**: Africa has a large population base and a gradually growing middle class, which provides a huge market potential for automobile consumption. With economic development and accelerated urbanization, the demand for automobiles will continue to grow.



2. **Cost Advantage**: Labor costs in Africa are relatively low, which provides a cost advantage for automobile assembly plants. In addition, some African countries provide incentives such as tax incentives and land lease incentives, which further reduce operating costs.



3. **Trade Agreements**: The establishment of the African Continental Free Trade Area (AfCFTA) facilitates intra-African trade, which helps automotive assembly plants gain easier access to neighboring markets and achieve regionalized production and sales.



4. **Resource-rich**: Africa is rich in mineral resources, such as iron, copper and aluminum, which are important raw materials for automobile manufacturing. Local access to these resources can reduce raw material costs and improve supply chain stability.



5. **Policy Support**: In order to attract foreign investment and promote industrial development, many African countries have introduced a series of support policies, including but not limited to tax breaks, capital subsidies and technical support.



6. **Supply Chain Integration**: By setting up assembly plants in Africa, automakers can better integrate the local supply chain, reduce logistics costs and improve production efficiency.
