| MOQ: | 4 |
| Price: | $8990 - $9990 |
| Standard Packaging: | 3600*1550*1600 / steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10000pcs per year |

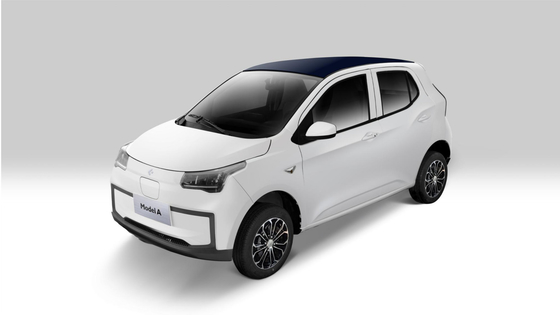

High-Performance Solar Electric Car Model A Long Range Electric Trolley
BODY INFORMATION
| Length*Width*Height (mm) | 3600*1550*1600 |
| Wheel base(mm) | 2440 |
| Front track/ Rear track(mm) | 1325/ 1325 |
| Ground clearance of chassis(mm) | 220 |
| Body type | Unitized body |
| Door | 5 |
| Seat | 4 |
| Cargo compartment volume (L) | 350 |
| Curb weight(Kg) | 830 |
| Maximum load mass (Kg) | 300 |
| Max. total mass(Kg) | 1130 |
MOTOR INFORMATION
| Motor type | AC motor |
| Motor Model | TZ155X1296H12 |
| Rated power (KW) | 12 |
| Peak power (KW) | 25 |
| Peak horsepower (Ps) | 34 |
| Peak torque(N.m) | 110 |
| Motor position | RR |
| Number of motors | Number of motors |
| MCU (V) | 96 |
SOLAR SYSTEM
| Solar Chip Type | Single-Crystal Silicon |
| Solar cell process | IBC-Interdigitated back contact |
| Solar panel process | Full roof curved glass lamination |
| Solar panel power (W) | 300 |
| Solar Controller type | MPPT |
| Solar core technology | Solar Curved Glass Lamination Technology Weak sunlight power generation technology sunlight & electric complementary charging mode |
BATTERY&CHARGING
| Battery type | Lithium(NCM) |
| Battery pack warranty | 8 Years/120000Km |
| Rated voltage of battery pack (V) | 72 |
| Battery power (KWH) | 23.92 |
| fast charging interface position | NO |
| Slow charging interface position | Below the front grille logo |
| SOC20% Charging time (h) | 6 |
| Input Voltage range (V) | AC 90-264 |
| Input voltage frequency range (Hz) | 40-70 |
| MAX. Output current (A) | 40 |
| Thermal management system | Optional |
| Charging gun standard | GB/T (Type 1 ) |
| Plug standard | EU/ UK/US/GB (Customized) |
| Vehicle to Load (V2L) | Optional |
| Battery-replacing mode | Hand movement |
GEARBOX
| Transmission Description | Single speed transmission |
| Gearbox type | Fixed gear ratio |
| Gear ratio | 8.14:1 |
| Gear type | Knob shifter(E/D/N/R) |
| High/Low Speed Mode | Sports:90Km/h; ECO:60Km/h |
CHASSIS&STEERING
| Driving method | RWD |
| Front suspension type | McPherson independent suspension |
| Rear suspension type | Trailing arm non independent suspension |
| Steering type | EPS |
| Body structure | Unitized body |
WHEEL&BRAKE
| Front brake type | Disc brake |
| Rear brake type | Drum brake |
| Parking brake type | Hand brake |
| Tire specifications | 165/65R14 |
| Wheel hub type | Aluminuml wheel hub |
| Spare tire specification/type | NO |
SAFETY & HANDLING CONFIGURATION
| Driver's airbag | Optional |
| PDDU | Charging&Distribution |
| Brake system type | SSBS |
| Brake assist system | Vacuum hydraulic |
| Driving mode selection | Sport&ECO |
| Driver/passenger seat belt | Three-point belt |
| Bumper | Front/Rear |
| Rearview mirror | Hand movement |
INTERIOR CONFIGURATION
| Inner mirror | Combination instrument panel |
| Room lamp | Knob shifter |
| visor | Cup holder |
| Fabric seats | Combination switch (light/wiper) |
LIGHTING CONFIGURATION
| Combination headlight | Position light (L/R) |
| Combination tail lamp | Warning lights |
| Daytime running lamps | Brake light(L/R) |
| High beam | Reversing light(R) |
| Low beam | Fog light(R) |
| Position light (L/R) | High mounted brake light |
MULTIMEDIA AND AIR CONDITIONING
| 9-inch floating screen | Android system |
| Color touch screen | Google Maps(Optional) |
| Screen Language (＞40 types) | Mobile screen projection |
| USB mode | Music player |
| Bluetooth mode | Video player |
| Rear View Camera | 12V External power supply |
| Radio | Air-conditioning |
Electric Car Model A Detail picture
Company Introduction
We are a well-known automobile manufacturing group in China and a multinational enterprisespecialized in investing in overseas chain automobile plant projects.We are practitioners of the "Belt andRoad" strategy of the Chinese government, as well as the "going out" strategy of Chinese automobilemanufacturing enterprises and financial capital. By investing in joint ventures and chain automobilefactories overseas, China's automobile industry overseas automobile industry chain is extended, andits own value is realized while helping developing countries realize local automobile industrialization.
Our strategic partners and shareholders include the China-Africa Development Fund
(Http:/www.CADFund.com) of the Chinese central government, and our mission is to implement theChinese government's initiative to promote Africa's industrialization.
product line
Contact us for more about:
1. Design of Factory Production Line,
2.Equipment Supply of Auto Production Line,
3.Technology Support, Guidance and Transfer of the AutoAssembling & Production,
4.Staff Training,
5.Automobile Production Management.
|
|
