| MOQ: | 3 units |
| Price: | 14800 USD/ unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | TT, L/C, D/A, D/P |
| Supply Capacity: | 100000 units/year |

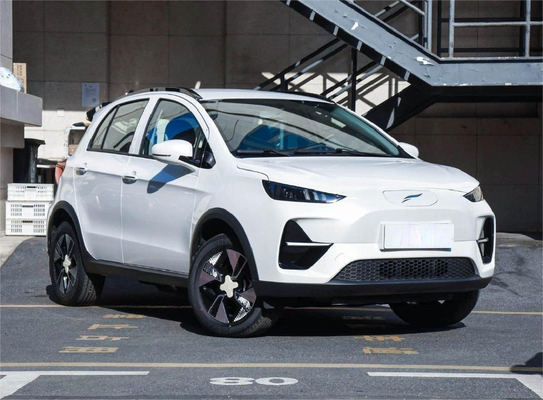

Good Safety Features And Plenty Of Space Electric Car K3 Range Up To 320Km
Main Advantages
Ⅰ: Outstanding three-electricity technology
1. K3 adopts the industry's advanced CTP battery technology program
2. K3 battery adopts the crossbeam and longitudinal beam of the lower shell as the module structural components volume utilization rate increased to 84%, 10% increase in strength, compact and safe, more at ease when used
3. Two battery safety warning methods to protect the safety of drivers and passengers.
4. The power battery management system is equipped with smoke sensors for real-time monitoring and early warning of thermal runaway of the battery. The use of voltage and temperature and other software algorithms coupled to reduce the risk of false alarms, improve the accuracy of thermal runaway alarm.
Ⅱ: Mature active and passive safety
The main and passenger are equipped with frontal airbags, and a number of active and passive safety features such as reversing camera, reversing radar, ESC body electronic stability control system, AutoHold automatic parking system. Add more layers of safety for you, multi-dimensional protection of your travel safety.
Ⅲ: Wide space and comfortable ride
Body dimensions: 4035×1736×1625 mm, wheelbase: 2480 mm. Leading body dimensions in the same price class brings a wide space, integration of high utilization space layout, maximize the driving space, the car is free to stretch, the sitting position is switched at will.
IV: Flexible and versatile storage space
The second row of seats support 4/6 ratio put down, space expansion more flexible, easy to put oversized luggage items. The class-leading 310L trunk can meet the needs of the family traveling with many pieces of luggage.
| K3 Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | permanent magnet synchronous |
| Number of Driving Motors | single motor |
| Motor Layout | Front |
| Maximum Power(kW) | 70 |
| Maximum Torque(N.m) | 165 |
| Maximum speed(Km/h) | 130 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | lithium iron phosphate battery |
| Battery capacity(kW.h) | 31.95 |
| CLTC range(km) | 320 |
| Quick charging time(30% to 80%)(h) | 0.5 |
| Slow charging time(10% to 100%)(h) | 10 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 4035*1736*1625 |
| Wheelbase(mm) | 2480 |
| Wheel Track Front/Wheel Track Rear(mm) | 1470/ 1455 |
| Approach angle/ Departure angle(°) | 19/25 |
| Curb Weight(Kg) | 1230 |
| Maximum full load mass(Kg) | 1605 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Macohereson independent suspension |
| Rear Suspension | Torsion beam non-independent suspension |
| Front Brakes/ Rear Brakes | Ventilated discs/ discs |
| Parking Brake | Electric Parking |
| ABS/EBD | Standard |
| Drive Type | FF |
| Shift Mode | Electronic Wye Shift |
| Steering Form | electric assist |
| Tire Size | 205/60, R16 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, five-seat SUV |
| Seats Number | 5 |
| Seat Belt Type | three-pointed |
| Number of Airbags | 2 |
| Air Conditioning | Air Conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
