High Performance Electric Car RL9 5-Door 6-Seat SUV range up to 380Km
General Introduction:
Ⅰ: Appearance

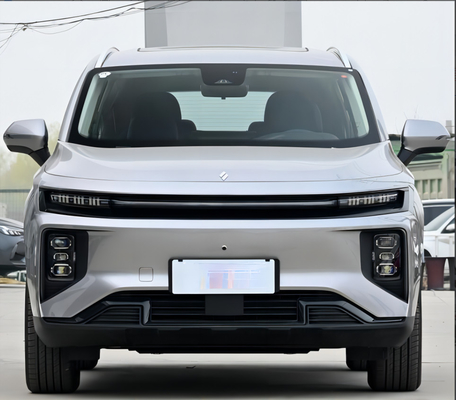

1. Looking at the front of the body, the design of the front face is very high-tech, with a penetrating front grille design and LED daytime running lights as a whole. On both sides of the bumper is the main headlight of the split headlight, and below is the heat sink.
2. From the side view, the side of the car is very solid, and the front and rear wings have a bulging design, which increases the visual sense of power. Wheel size is available in 18-inch and 19-inch options depending on configuration.
3. car Rear, the rear of the car adopts a penetrating taillight, while the lower part of the bumper is equipped with a silver color guard, which increases the sense of hierarchy of the model.
4. trunk section, the length, width and height of the RL9 are 4845*1890*1778mm, with a wheelbase of 2825mm. the car adopts a 2+2+2 six-seat layout across the board, with all three rows of seats open, the trunk volume is 162 liters, and it can be expanded to 628 liters when the third row of seats is put down.
II. Interior Introduction:
The interior layout of the RL9 is very layered, with more horizontal lines outlining the interior, along with the design of the penetrating air conditioning vents, which increases the visual width. 12.3-inch LCD gauges and 12.3-inch center screen are standard across the board, with built-in 4G Car-Net functionality, among other things. Below the center console is an electronic gear knob, and at the rear are buttons for the electronic handbrake and driving mode switch.
III. Power & Range.
All RL9 models are powered by a front-mounted motor with a maximum horsepower of 204 and maximum torque of 310 Nm. In terms of battery capacity, this car is equipped with a 52.56-degree Li-ion ternary battery, with a CLTC pure electric range of 380km, which can be charged to 80% in 30 minutes in fast-charging mode; the car also supports the power-swapping function, which improves the efficiency of replenishment.
| Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motor |
| Motor Layout |
Front |
| Maximum Power(kW) |
150 |
| Maximum Torque(N.m) |
310 |
| Maximum speed(Km/h) |
163 |
| BATTERY PACK | DESCRIPTION |
| Battery Type |
Ternary lithium battery |
| Rated Power(kW.h) |
52.56 |
|
CLTC(km) |
305 |
|
Fast Charging Time (h) |
12h |
|
Battery Fast Charge Range(%) |
80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) |
4845*1890*1778 |
| Wheelbase(mm) |
2825 |
| Wheel Track Front(mm) |
1600 |
| Wheel Track Rear(mm) |
1620 |
| Approach angle |
17.4 |
| Departure angle |
23.9 |
| Minimum Ground Clearance |
135 |
| WEIGHT | DESCRIPTION |
| Curb Weight(Kg) |
1850 |
| Maximum full load weight(Kg) |
2300 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension |
Composite multi-link non-independent suspension |
| Front Brakes |
Ventilated Disc Brake |
| Rear Brakes |
Disc Brake |
| Parking Brake |
Electric Parking |
| ABS/EBD | Standard |
| Drive Type |
FF |
| Shift Mode |
Electronic gear shift device |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size |
225/ 55 R18 |
| BODY | DESCRIPTION |
|
Body Structure |
Five-door, six-seat SUV |
|
Seat Belt Type |
Three-Poin |
|
Air Conditioning |
Automatic air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
