| MOQ: | 4 |
| Price: | US$12,999.00-14,999.00 / unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100000 Units per Year |

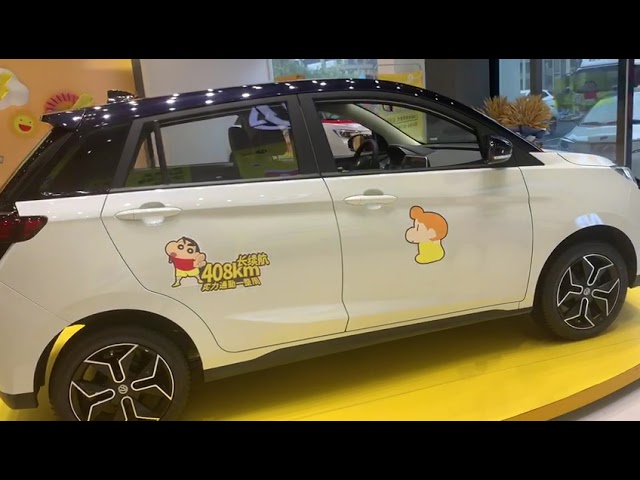

2023 brand new long distance range electric utility vehicle 3.74m long 5 doors 4 seats hatchback
1. Description of the 2023 brand new long distance range electric utility vehicle 3.74m long 5 doors 4 seats hatchback :
| Electric Micro Car - EV400XT | ||||||
| Version | 302KM Original | 302KM Pearl | 302 KM Milk | 408KM Pearl | 408 KM Milk | |
| Basic parameter | ||||||
| 1 | CLTC(km) | 302 | 302 | 302 | 408 | 408 |
| 2 | Time of fast charging (min) | 30 | 30 | 30 | 30 | 30 |
| 3 | Fast charging ratio (%) | 80 | 80 | 80 | 80 | 80 |
| 4 | Time of slow charging (h) | 8 | 8 | 8 | 8 | 8 |
| 5 | Max. Power (kW) | 35 | 35 | 35 | 35 | 35 |
| 6 | Max. Torque (N.m) | 125 | 125 | 125 | 125 | 125 |
| 7 | Max. Speed (km/h) | 100 | 100 | 100 | 100 | 100 |
| 8 | Body Structure | 5 Doors 4 Seats Hatchback | 5 Doors 4 Seats Hatchback | 5 Doors 4 Seats Hatchback | 5 Doors 4 Seats Hatchback | 5 Doors 4 Seats Hatchback |
| 9 | L*W*H (mm) | 3740*1655*1550 | 3740*1655*1550 | 3740*1655*1550 | 3740*1655*1550 | 3740*1655*1550 |
| 10 | Wheelbase (mm) | 2415 | 2415 | 2415 | 2415 | 2415 |
| 11 | Curb weight (kg) | 1080 | 1080 | 1080 | 1091 | 1091 |
| Motor/Battery | ||||||
| 1 | Motor Type | Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
Permanent magnet synchronous motor |
| 2 | Number of motors | Single motor | Single motor | Single motor | Single motor | Single motor |
| 3 | Motor layout | Front mounted | Front mounted | Front mounted | Front mounted | Front mounted |
| 4 | Battery type | LiFePO | LiFePO | LiFePO | Ternary | Ternary |
| 5 | Capacity(kWh) | 32.56 | 32.56 | 32.56 | 38.54 | 38.54 |
| 6 | Battery preheating | ● | ● | ● | ● | ● |
| Gearbox/Chassis | ||||||
| 1 | Number of shift | 1 | 1 | 1 | 1 | 1 |
| 2 | Gearbox Type | Fixed gear ratio transmission | Fixed gear ratio transmission | Fixed gear ratio transmission | Fixed gear ratio transmission | Fixed gear ratio transmission |
| 3 | Drive Type | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive | Front wheel drive |
| 4 | Shift way | Knob | Knob | Knob | Knob | Knob |
| 5 | Front suspension | MacPherson dependent suspension |
MacPherson dependent suspension |
MacPherson dependent suspension |
MacPherson dependent suspension |
MacPherson dependent suspension |
| 6 | Rear suspension | Towarm independent | Towarm independent | Towarm independent | Towarm independent | Towarm independent |
| 7 | Steering type | Electric power- assisted |
Electric power- assisted |
Electric power- assisted |
Electric power- assisted |
Electric power- assisted |
| 8 | Car body structure | Monocoque | Monocoque | Monocoque | Monocoque | Monocoque |
| 9 | Brake type | Front Disc/Rear drum | Front Disc/Rear drum | Front Disc/Rear drum | Front Disc/Rear drum | Front Disc/Rear drum |
| 10 | Parking type | handbrake | handbrake | handbrake | handbrake | handbrake |
| 11 | Tyre | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 | 185/55 R15 |
| 12 | Automatic filling tire fluid | ● | ● | ● | ● | ● |
| 13 | Steel hub | ● | ● | － | ● | － |
| 14 | Alumium hub | － | － | ● | － | ● |
| Active/passive safety | ||||||
| 1 | ABS/EBD | ● | ● | ● | ● | ● |
| 2 | Airbags (driver/co-driver) | ● | ● | ● | ● | ● |
| 3 | Tyre pressure alarm | ● | ● | ● | ● | ● |
| 4 | Safety belt un-fastened alarm | ● | ● | ● | ● | ● |
| 5 | Body anti-theft | ● | ● | ● | ● | ● |
| 6 | Central lock | ● | ● | ● | ● | ● |
| 7 | Driving auto lock | ● | ● | ● | ● | ● |
| 8 | Collision auto unlock | ● | ● | ● | ● | ● |
| 9 | Low speed pedestrian warning | ● | ● | ● | ● | ● |
| 10 | Emergency braking strobe | ● | ● | ● | ● | ● |
| 11 | One-click (smart) car search | ● | ● | ● | ● | ● |
| 12 | ISOFIX | ● | ● | ● | ● | ● |
| Auxiliary/control | ||||||
| 1 | Parking Radar | ● | ● | ● | ● | ● |
| 2 | Millimeter-wave radar | － | － | ● | － | ● |
| 3 | Parallel auxiliary system | － | － | ● | － | ● |
| 4 | Rear overtaking warning | － | － | ● | － | ● |
| 5 | Vehicle blind spot monitoring | － | － | ● | － | ● |
| 6 | Door open danger warning | － | － | ● | － | ● |
| 7 | Reverse image | ● | ● | ● | ● | ● |
| 8 | 360º panoramic image | － | ● | ● | ● | ● |
| 9 | Cruise system | － | Cruise control | Cruise control | Cruise control | Cruise control |
| 10 | Drive mode switching | Comfort/standard/economic | Comfort/standard/economic | Comfort/standard/economic | Comfort/standard/economic | Comfort/standard/economic |
| 11 | Energy recycling | ● | ● | ● | ● | ● |
| 12 | HAC (Hill-start Assist Control) | ● | ● | ● | ● | ● |
| 13 | Remote key | ● | ● | ● | ● | ● |
| 14 | Keyless start | ● | ● | ● | ● | ● |
| 15 | Electromotive air conditioner | ● | ● | ● | ● | ● |
| 16 | OTA updating | ● | ● | ● | ● | ● |
| Interior/seats | ||||||
| 1 | Steering wheel | Plastic | Leather | Leather | Leather | Leather |
| 2 | Steering wheel position adjustment (manual up and down) | ● | ● | ● | ● | ● |
| 3 | Multi-functional Steering wheel | ● | ● | ● | ● | ● |
| 4 | Colorful VCU screen | ● | ● | ● | ● | ● |
| 5 | Lcd meters | － | ● | ● | ● | ● |
| 6 | Mobile wireless charging | － | － | ● | － | ● |
| 7 | Fiber Seat | ● | － | － | － | － |
| 8 | Leather seat | － | ● | ● | ● | ● |
| 9 | Driver seat adjustment (front/backrest) | ● | ● | ● | ● | ● |
| 10 | Co-driver sear adjustment (front/backrest) | ● | ● | ● | ● | ● |
| 11 | Rear seat put down | ● | ● | ● | ● | ● |
| Multimedia | ||||||
| 1 | 10.25 inch Touch VCU LCD screen | ● | ● | ● | ● | ● |
| 2 | Blueteeth/car phone | ● | ● | ● | ● | ● |
| 3 | GPS | ● | ● | ● | ● | ● |
| 4 | Navigation traffic information display | ● | ● | ● | ● | ● |
| 5 | Voice recognition system / Voice control system (multimedia system/navigation/telephone/air conditioner) | ● | ● | ● | ● | ● |
| 6 | Mobile APP Ccontrol system | ● | ● | ● | ● | ● |
| 7 | Car WIFI | ● | ● | ● | ● | ● |
| 8 | Telematics / Internet of vehicles | ● | ● | ● | ● | ● |
| 9 | Number of speakers | 2 | 4 | 4 | 4 | 4 |
| 10 | Speed-based Volume adjustment | ● | ● | ● | ● | ● |
| 11 | 12V power interface | ● | ● | ● | ● | ● |
| 12 | USB interface | 2 | 2 | 2 | 2 | 2 |
| Lights/glass/rearview | ||||||
| 1 | LED daytime running light | － | ● | ● | ● | ● |
| 2 | LED headlamp | － | － | ● | － | ● |
| 3 | Height-adjustable headlight | ● | ● | ● | ● | ● |
| 4 | Front reading lamp | ● | ● | ● | ● | ● |
| 5 | Follow me home | ● | ● | ● | ● | ● |
| 6 | Electric window | ● | ● | ● | ● | ● |
| 7 | One-click window drop / down | ● | ● | ● | ● | ● |
| 8 | Flameout one key to lift the window | ● | ● | ● | ● | ● |
| 9 | Long press the key to unlock the descending window | ● | ● | ● | ● | ● |
| 10 | External rearview mirror integrated with LED turn signal | ● | ● | ● | ● | ● |
| 11 | Outside rear view mirror electric adjustment | ● | ● | ● | ● | ● |
| 12 | Rearview mirror heating | － | ● | ● | ● | ● |
| 13 | Manual anti-dazzle inside rearview mirror | ● | ● | ● | ● | ● |
| 14 | Rear windshield heating | ● | ● | ● | ● | ● |
| 15 | Front interior makeup mirror (left/right) | ● | ● | ● | ● | ● |
Some main advantages of assembling the 2023 brand new long distance range electric utility vehicle 3.74m long 5 doors 4 seats hatchback:
--- Save Customs Duty and other tax;
--- Save Shipping Cost;
--- Increase margin;
--- Improve competitiveness;
--- Develop your local industry;
--- Creat job opportunities.
2. Our service and our capability:
In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...
3. Our Cooperation Modes:
A. Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B. Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C. Joint Venture Mode
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
4. Requirements on our Cooperation Partners:
If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:
• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.
• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.
• Market channel: You’d better have your own car sales channel & network, automobile related business.
• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.
• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.
5. Process of our Auto KD Assembly Project:
6. Finally, this Auto KD Assembly Project is Profitable:
If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!
Looking forward to your cooperation!!
Our Contact:
Lucky Peng (Ms.)
China Big S & T Dev (Group) Co., Limited
Website: www.auto-assemblyplants.com;
Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;
Skype: chongqingbig
Tel No. (WeChat / Whatsapp / Viber): +86-15223551381
