1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance

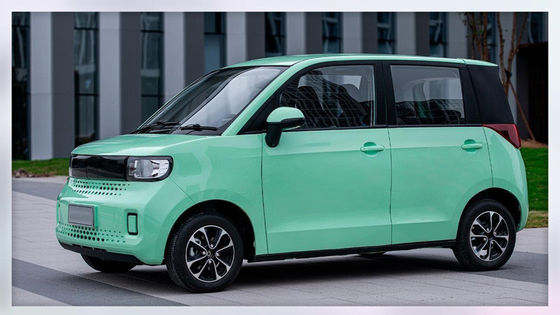

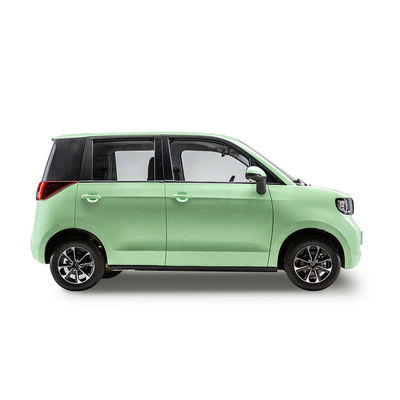

1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance

1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance

MOQ: 4
Price: US$6,999.00-US$11,699.00 / unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
BIGST or Customized
Model Number
BGST-EQFH-1
Motor:
PMSM
Motor Power:
29KW
Length:
3390mm
Width:
1650mm
Height:
1600mm
Battery Voltage:
90-265V
Charging Time:
5-6/6-8/10h
Drive Type:
FWD
Transmission:
Automatic
Braking System:
Front Disc, Rear Drum
Project:
Car Assembly
Item:
Auto Assembling
Wheelbase:
2275mm
Mini Groundclearance:
160mm
Top Speed:
110km/h
Driving Range:
138/175/332km
Battery Electricity Capacity:
10.36/15/27.64/29.1KW.h
Minimum Order Quantity:
4
Price:
US$6,999.00-US$11,699.00 / unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 Units per Year
High Light:

PMSM Electric Cars

,

Electric Cars 29KW

,

Electric Cars 1600mm

Product Description

small electric cars with solar pannel for longer distance



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 0





small electric cars with solar pannel for longer distance







1. Description of the small electric cars with solar pannel for longer distance:



Electric Mini Car - Model EQ LHD
Basic information Vehicle Type High Speed Electric Car
Body Structure Hatchback
Vehicle Model FH-EQ
Driver position LHD
Carrying number 5 people
Location of charging port Front grille LOGO rear
Version EQ-A EQ-B EQ-C EQ-D
Basic Specification Body size: L*W*H (mm) 3390*1650*1600
Wheel Base (mm) 2275
Climbing angle (%) <20
Ground clearance (mm) 160
Maximum speed (km/h) 110
Curb weight (KG) 760 810 880 920KG
Maximum range ( km ) 138KM 175KM 332KM 332KM
Motor Peak power (KW) 29
Motor type PMSM
Max. horsepower (ps) 39
Driving type FWD
Peak torque (N.m) 110
Solar power system (full roof) Solar type NO Sunpower flexible thin film monocrystalline silicon modules
Solar panel power (W) / 600W
Controller type / MPPT
Output voltage (V) / 115V
Battery Battery type LFP NCM
Battery capacity 10.36KWH 15.KWH 27.64KWH 29.1KWH
Battery warranty 8years
Normal Charge Times (hr) 5-6 6-8 10 10
Fast charging time (hr) option
Input Voltage (VAC) 90-265
Output current (ADC) 16 16 20 20
Gearbox Gear number 4 (E/D/N/R)
Gearbox type Fixed gear ratio
Chassis & Steering Front suspension type Mcpherson independent suspension
Rear suspension type Trailing arm non-independent suspension
Body type Unibody
Wheel & Brake Front brake type Disc brake
Rear brake type Drum brake
Parking brake type Foot brake
Tyre size 155/65R13
Wheel hub type Aluminium alloy
Safety Configuration & Driving Assistance Air bag
Hill-start Assist Control
ABS
EBD CBC
TMPS
Body stability control (ESC/ESP/DSC)
EPS
EDR
OBD
Reversing image / Rear View Camera
Parallel auxiliary
ISOFIX
Radar
Safety Belt Front/ Rear
Bumper Front/ Rear
  Danger alarm
Auto power off after fully charged
Overvoltage protection
Undervoltage protection
Over current protection
Overheat protection
Charging temperature compensation
Charging leakage protection
Output short circuit protection
Warning horn
Electric power window
Rearview mirror
Central lock
Remote key
Interior Configuration Front seats headrest
Inner rearview mirror
Reading lamp
Steering wheel material ABS
LCD panel
Real-time driving status display
Seat material Texitile
Front seats adjustable
Rear seats foldable
Big angle door open
Warm air glass defrosting
Sun shield
Cup holder
Lamp configuration Light Halogen
Headlamp adjustment
Daytime running lamps
Steering lamp
Combination headlight
Combination tail lamp
Light combination switch
Multimedia & Air-conditioning Color central control touch screen
Screen size 9 inch
Local Video player
Local music player
FM Radio
Phone charging interface
Google Maps
GPS navigation
Bluetooth music/ phone
Mobile Internet
12V External power supply
Sound adjustment
Ashtray
YOUTUB internet video
Multilingual menu operation
Air-conditioning



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 1

1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 2





Some main advantages of assembling the small electric cars with solar pannel for longer distance in local:

--- Save Customs Duty and other tax;

--- Save Shipping Cost;

--- Increase margin;

--- Improve competitiveness;

--- Develop your local industry;

--- Creat job opportunities.







2. Our service and our capability:



In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 3









3. Our Cooperation Modes:


A. Trade Agency



At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.


B. Turnkey Project/ Technology Transfer Mode



In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.


C. Joint Venture Mode


1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.







4. Requirements on our Cooperation Partners:



If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:



• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.



• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.



• Market channel: You’d better have your own car sales channel & network, automobile related business.



• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.



• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.







5. Process of our Auto KD Assembly Project:



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 4







6. Finally, this Auto KD Assembly Project is Profitable:



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 5



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 6



1600mm PMSM Small Electric Cars 29KW With Solar Pannel For Longer Distance 7











If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!



Looking forward to your cooperation!!





Our Contact:

Lucky Peng (Ms.)

China Big S & T Dev (Group) Co., Limited

Website: www.auto-assemblyplants.com

Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;

Skype: chongqingbig

Tel No. (WeChat / Whatsapp / Viber): +86-15223551381
