| MOQ: | 1 |
| Price: | USD 22,000 - USD 29,000/ Units |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 Working days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100,000 Units per Year |

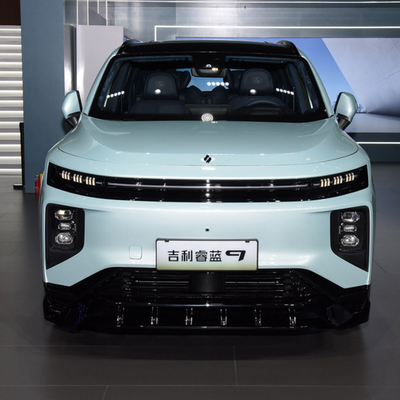

High-End Intelligent SUV Electric Car RL9 Large Capacity Long Range
RL9 Highlights:
Ⅰ: Full sense of technology, intelligent assisted driving
RL9 equipped with multi-dimensional digital sensory cockpit, using 12.3-inch LCD instrumentation and 12.3-inch suspension center control screen two screens. These two screens and the 8-inch W-HUD head-up display together form the RL9's car system, which supports three-finger flying screen, three-screen interaction and other functions. At the same time, the car is equipped with a virtual assistant and intelligent voice interaction processing platform, which not only supports personalized voice private customization, but also realizes cell phone APP remote control. In addition, RL9 is also equipped with more than ten functions of L2 level intelligent driver assistance system. This will give customers a full sense of happiness during the driving process.
Ⅱ: Large ride space, large capacity
RL9 has a long wheelbase of 22825mm, and provides 6-seat and 7-seat seat layouts, plus after putting down the second row of seats, the maximum can be expanded to 2360L huge loading space, 2.2m king-size bed leveling space, but also to meet the needs of the travel of large families. Both passenger and driver seats are very spacious and comfortable to ride and drive.
Ⅲ: Long range, easy to change electricity
Based on GBRC Crystal Architecture, the RL9 is equipped with a highly reliable, efficient and high-performance oil-cooled motor, capable of outputting a maximum power of 150kW. Combined with the RL Super Heat Pump system, which has more than 30 patents, and the capsule battery, which has a lifespan of 8 years and 600,000 kilometers, the car's CLTC range reaches 380 kilometers and 470 kilometers, respectively. Both long-distance driving and short-distance use can be satisfied.
| Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motor |
| Motor Layout | Front |
| Maximum Power(kW) | 150 |
| Maximum Torque(N.m) | 310 |
| Maximum speed(Km/h) | 163 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Ternary lithium battery |
| Rated Power(kW.h) | 52.56 |
| CLTC(km) | 305 |
| Fast Charging Time (h) | 12h |
| Battery Fast Charge Range(%) | 80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 4845*1890*1778 |
| Wheelbase(mm) | 2825 |
| Wheel Track Front(mm) | 1600 |
| Wheel Track Rear(mm) | 1620 |
| Approach angle | 17.4 |
| Departure angle | 23.9 |
| Minimum Ground Clearance | 135 |
| WEIGHT | DESCRIPTION |
| Curb Weight(Kg) | 1850 |
| Maximum full load weight(Kg) | 2300 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension | Composite multi-link non-independent suspension |
| Front Brakes | Ventilated Disc Brake |
| Rear Brakes | Disc Brake |
| Parking Brake | Electric Parking |
| ABS/EBD | Standard |
| Drive Type | FF |
| Shift Mode | Electronic gear shift device |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size | 225/ 55 R18 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, six-seat SUV |
| Seat Belt Type | Three-Poin |
| Air Conditioning | Automatic air conditioning |
|
|
