Long-Range High-Capacity Pure Electric Bus TEG6125BEV 12 Meter Pure Electric Bus

Long-Range High-Capacity Pure Electric Bus TEG6125BEV 12 Meter Pure Electric Bus

MOQ: 1 unit
Price: USD 150,000 - USD 180,000/ unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 Working days
Payment Method: L/C, T/T
Supply Capacity: 3,000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
BIG AUTO
Model Number
TEG6125BEV
Product Name:
Electric Bus TEG6125BEV
Overall Dimension (mm):
11950×2540×3280
Passenger Capacity:
43
Approach Angle/departure Angle:
7/7
Drive Motor:
Permanent Magnet Synchronous Motor
Energy Storage Device:
Lithium Iron Phosphate Battery
Motor Controller:
Integrated Controller
Suspension:
Air Suspension
Front Axle:
7.5T, Disc Type
Rear Axle:
13T, Disc/drum
Minimum Order Quantity:
1 unit
Price:
USD 150,000 - USD 180,000/ unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 Working days
Payment Terms:
L/C, T/T
Supply Ability:
3,000 Units per Year
Highlight:

Hybrid Electric MPV 7Seats Cars

,

EV MPV 5-7-Seats Cars

,

1790mm MPV 7Seats Cars

Product Description

Long-Range High-Capacity Pure Electric Bus TEG6125BEV 12 Meter Pure Electric Bus





Vehicle Advantage:

Ⅰ:Large space
The wheelbase length is 5.9 meters and the maximum passenger capacity is 105.



Ⅱ:Strong power, longer range
Battery capacity 338.4 kWh, maximum range up to 641Km. Dual-winding electric drive system, peak torque up to 3300N-m, strong power system, high reliability; energy storage management system, using automotive-grade components selection, accurate prediction of battery status.



:Detailed Control, More Comfortable Drive and Ride
1. Built-in sliding window, transparent rear windshield, good lighting performance.
2. Configurable first-class step, ECAS, minimum 260mm body "side kneeling" entrance, convenient for the disabled to get on and off the ride.
3. Passenger door intimate handrail setting, flip step setting, easy to get on and off the car for passengers with limited mobility.
4. Driving area can be equipped with 10-inch large screen, information at a glance.
5. The driver's seat is equipped with USB charging port, cell phone storage box, cup holder, etc. to optimize the driver's riding comfort.



Ⅳ:Multiple technologies to ensure vehicle safety
1. Remote vehicle control
2. One-key diagnosis
3. Intelligent maintenance
4. Forward collision warning system
5. Lane Departure Warning
6. Automatic Emergency Braking
7. Pedestrian Collision Warning
8. Passive Collision Safety
9. Environmental Adaptation

10. 24-hour multi-dimensional safety monitoring and safety warning technology



Ⅴ:Segmented design for easy maintenance
The front and rear of the model adopt a segmented design, which facilitates access to the interior parts of the front and rear compartments and the use of the trailer hitch.



Ⅵ:Lightweight design, more energy efficient
Lightweight design, body weight reduction of 200KG, braking energy recovery of more than 40%.



Model TEG6125BEV Technical Parameters

Model TEG6125BEV Technical Parameters
Basic parameters
Overall dimension(mm)
11950×2540×3280
Passenger capacity (number of seats)
43
Approach angle(°)
7
Departure angle(°) 7

Electric drive and

control system
Drive motor
Permanent magnet synchronous motor, power:100/200(kW)
Energy storage device
Lithium iron phosphate battery :3 15.07 ,338.4kWh;
Motor controller
Integrated controller
chassis
suspension
Air suspension,front 2 and rear 4 airbags
Front axle
7.5T, disc type
Rear axle (axle)
13T,disc/drum
tyre
11R 22.5 ,18levels
Rim
eight point two five × 22.5 ; Steel (optional:aluminumalloy)
braking system
With energy storage spring braking, electric transmission auxiliary braking,
ABS anti lock, dual circuit air braking
Body
Passenger door

Pneumatic, aluminumalloy,front double back double inner swing (three or

four doors are optional)
Surrounded by drivers
Aluminum alloy full enclosure
Handrail

Plastic coated steel pipe, diameter 32mm,

yellow(optional:aluminum alloy,
stainless steel)
Air duct
Foam air duct (optional : panoramic aluminum alloy air duct)
electrical
Air conditioner model
Cooling and heating electric air conditioner, cooling capacity 32000 kcal
Defrosting system
With driver's area air outlet, high voltage electric defroster 4kw
Other configurations
Cathodic electrophoresis, full load body,24H safety monitoring system



Detail Pictures:

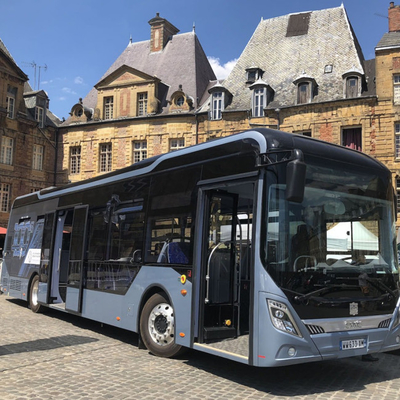

Long-Range High-Capacity Pure Electric Bus TEG6125BEV 12 Meter Pure Electric Bus 0



Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.

Long-Range High-Capacity Pure Electric Bus TEG6125BEV 12 Meter Pure Electric Bus 1



Background of Oversea Auto KD Assembly Project

1. The Development Status of China Auto Industry. In 2016, China automobile annual output has exceeded 28 million units, far more than the total production of the United States and Japan, and it has already become the world's largest automobile manufacturing country for the last 8 consecutive years. Among them, the output of new energy vehicles produced in China reached up to 517,000 units, becoming the largest of the world, and exceeding the total output of all other countries in the world.Since 2016, China's automobile manufacturing standard has been updated to China's V standard (same level as European V standard). And the level of electric vehicle manufacturing standard launched recently by Chinese government is higher than the European standard.

Nowadays, Chinese cars have the highest cost performance. The manufacturing technology of Chinese cars, especially new energy vehicles, is in the leading position in the world; In addition, China's foreign exchange reserves are the first in the world. All these favorable factors created the necessary technical and capital conditions for Chinese automobiles towards the overseas market.



2. Most South Asia, Africa, Latin America or the Middle East countries have a single economic structure, lack of heavy industry base, and due to the complicated and volatile international political and economic situation, it becomes very urgent to develop their own domestic industries, for creating a new driving force for economic development, realizing industrial diversification, increasing employment opportunities, and ensuring a stable and healthy development of the economy. Compared with other industries, the automobile industry can promote the development of more related industries, which is a good opportunity for the developing countries.



3. In order to develop domestic industry and increase employment opportunities, the government usually charges higher tariffs on the import of complete vehicle, while lower tariffs on the import of semi-finished auto and completely knocked-down parts, for encouraging local assembly industry. For some countries, the difference between the whole car and parts are rather big, up to 200%, with great profit.



4. Generally, the expansion way of transnational enterprises in developed countries is to directly establish branch factories and outlets abroad, controlling the absolute stake to occupy the oversea markets, which squeeze the development opportunities of the local entrepreneurs. The auto industry is a capital and technology-intensive industry, such a high threshold makes the local entrepreneurs hardly to reach. Therefore, such an expansion way has largely hindered the development of the local enterprises. However, our cooperation principle is that our Group will never control large shares, but leave the local national industry a large space for growth and development.



5. China Big Group have China's automotive products and technical advantages, combining with years of overseas market experience, have been committed to search for high-quality entrepreneurs from all over the world for collaboration and setting up oversea joint venture auto assembly plants. According to local policy, market environment and our partners' economic strength, following the principle of "all start from the reality", helping our partners with customized auto industry development plans and programs for the achievement of auto industrialization by stages, providing permanent technology support. At the same time, our group realize the global distribution of chain operations through joint venture cooperation, and further integrate resources, at last, to achieve a win-win result.
