High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line

High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line

MOQ: 4
Price: USD 22,000 - USD 29,000/ Units
Standard Packaging: Steel frame
Delivery Period: 60 working days
Supply Capacity: 1000 units per month
Detail Information
Place of Origin
China
Brand Name
BIG AUTO
Model Number
RL9
Product Name:
Electric Car RL9
Motor Type:
Permanent Magnet Synchronization
Number Of Driving Motors:
Single Motor
Motor Layout:
Front
Maximum Power:
150
Maximum Torque:
310
Maximum Speed:
163
Battery Type:
Ternary Lithium Battery
Rated Power:
52.56
Minimum Order Quantity:
4
Price:
USD 22,000 - USD 29,000/ Units
Packaging Details:
Steel frame
Delivery Time:
60 working days
Supply Ability:
1000 units per month
Highlight:

joint venture Electric Car Assembly Line

,

New Energy Vehicle Assembly Line

,

electric car assembly line partners

Product Description

High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line





General Introduction:

Ⅰ: Appearance

1. Looking at the front of the body, the design of the front face is very high-tech, with a penetrating front grille design and LED daytime running lights as a whole. On both sides of the bumper is the main headlight of the split headlight, and below is the heat sink.


2. From the side view, the side of the car is very solid, and the front and rear wings have a bulging design, which increases the visual sense of power. Wheel size is available in 18-inch and 19-inch options depending on configuration.


3. car Rear, the rear of the car adopts a penetrating taillight, while the lower part of the bumper is equipped with a silver color guard, which increases the sense of hierarchy of the model.


4. trunk section, the length, width and height of the RL9 are 4845*1890*1778mm, with a wheelbase of 2825mm. the car adopts a 2+2+2 six-seat layout across the board, with all three rows of seats open, the trunk volume is 162 liters, and it can be expanded to 628 liters when the third row of seats is put down.



II. Interior Introduction:
The interior layout of the RL9 is very layered, with more horizontal lines outlining the interior, along with the design of the penetrating air conditioning vents, which increases the visual width. 12.3-inch LCD gauges and 12.3-inch center screen are standard across the board, with built-in 4G Car-Net functionality, among other things. Below the center console is an electronic gear knob, and at the rear are buttons for the electronic handbrake and driving mode switch.


III. Power & Range.
All RL9 models are powered by a front-mounted motor with a maximum horsepower of 204 and maximum torque of 310 Nm. In terms of battery capacity, this car is equipped with a 52.56-degree Li-ion ternary battery, with a CLTC pure electric range of 380km, which can be charged to 80% in 30 minutes in fast-charging mode; the car also supports the power-swapping function, which improves the efficiency of replenishment.



Technical Specifications

Technical Specifications
DRIVE MOTOR DESCRIPTION
Motor Type Permanent Magnet Synchronization
Number of Driving Motors Single Motor
Motor Layout Front
Maximum Power(kW) 150
Maximum Torque(N.m) 310
Maximum speed(Km/h) 163
BATTERY PACK DESCRIPTION
Battery Type Ternary lithium battery
Rated Power(kW.h) 52.56
CLTC(km) 305
Fast Charging Time (h) 12h
Battery Fast Charge Range(%) 80
EXTERIOR DESCRIPTION
Length*Width*Height(mm) 4845*1890*1778
Wheelbase(mm) 2825
Wheel Track Front(mm) 1600
Wheel Track Rear(mm) 1620
Approach angle 17.4
Departure angle 23.9
Minimum Ground Clearance 135
WEIGHT DESCRIPTION
Curb Weight(Kg)                                         1850
Maximum full load weight(Kg) 2300
CHASSIS DESCRIPTION
Front Suspension Mcpherson independent suspension
Rear Suspension Composite multi-link non-independent suspension
Front Brakes Ventilated Disc Brake
Rear Brakes Disc Brake
Parking Brake Electric Parking
ABS/EBD Standard
Drive Type FF
Shift Mode Electronic gear shift device
Steering Form Electric Power Steering (EPS)
Tire Size 225/ 55 R18
BODY DESCRIPTION
Body Structure Five-door, six-seat SUV
Seat Belt Type Three-Poin
Air Conditioning Automatic air conditioning



Detailed display pictures

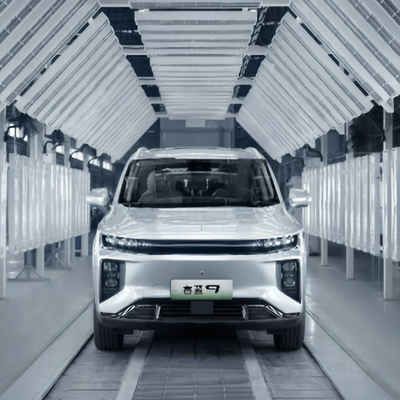

High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line 0



High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line 1



Company profile:

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.

High Speed Electric Car New Energy Vehicle Electric Car RL9 Assembly Line 2



Background of Oversea Auto KD Assembly Project

1. The Development Status of China Auto Industry. In 2016, China automobile annual output has exceeded 28 million units, far more than the total production of the United States and Japan, and it has already become the world's largest automobile manufacturing country for the last 8 consecutive years. Among them, the output of new energy vehicles produced in China reached up to 517,000 units, becoming the largest of the world, and exceeding the total output of all other countries in the world.Since 2016, China's automobile manufacturing standard has been updated to China's V standard (same level as European V standard). And the level of electric vehicle manufacturing standard launched recently by Chinese government is higher than the European standard.

Nowadays, Chinese cars have the highest cost performance. The manufacturing technology of Chinese cars, especially new energy vehicles, is in the leading position in the world; In addition, China's foreign exchange reserves are the first in the world. All these favorable factors created the necessary technical and capital conditions for Chinese automobiles towards the overseas market.



2. Most South Asia, Africa, Latin America or the Middle East countries have a single economic structure, lack of heavy industry base, and due to the complicated and volatile international political and economic situation, it becomes very urgent to develop their own domestic industries, for creating a new driving force for economic development, realizing industrial diversification, increasing employment opportunities, and ensuring a stable and healthy development of the economy. Compared with other industries, the automobile industry can promote the development of more related industries, which is a good opportunity for the developing countries.



3. In order to develop domestic industry and increase employment opportunities, the government usually charges higher tariffs on the import of complete vehicle, while lower tariffs on the import of semi-finished auto and completely knocked-down parts, for encouraging local assembly industry. For some countries, the difference between the whole car and parts are rather big, up to 200%, with great profit.



4. Generally, the expansion way of transnational enterprises in developed countries is to directly establish branch factories and outlets abroad, controlling the absolute stake to occupy the oversea markets, which squeeze the development opportunities of the local entrepreneurs. The auto industry is a capital and technology-intensive industry, such a high threshold makes the local entrepreneurs hardly to reach. Therefore, such an expansion way has largely hindered the development of the local enterprises. However, our cooperation principle is that our Group will never control large shares, but leave the local national industry a large space for growth and development.



5. China Big Group have China's automotive products and technical advantages, combining with years of overseas market experience, have been committed to search for high-quality entrepreneurs from all over the world for collaboration and setting up oversea joint venture auto assembly plants. According to local policy, market environment and our partners' economic strength, following the principle of "all start from the reality", helping our partners with customized auto industry development plans and programs for the achievement of auto industrialization by stages, providing permanent technology support. At the same time, our group realize the global distribution of chain operations through joint venture cooperation, and further integrate resources, at last, to achieve a win-win result.
