| MOQ: | 1 unit |
| Price: | 130,000 USD - 140,000 USD, per unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |

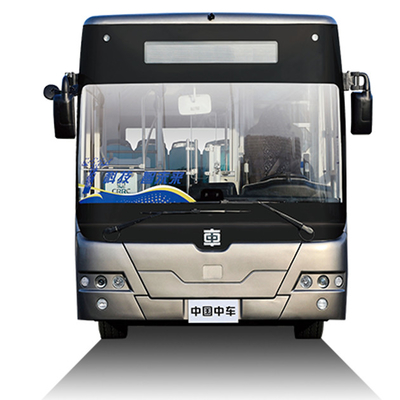

Super-Capacity 10-Meter Pure Electric Bus TEG6105BEV Intelligent Assisted Driving Bus
TEG6105BEV General Advantages
Great space:
10 meter body, up to 32 seats, rated for 91 passengers. The interior is equipped with an air purification device, simple and beautiful support seats, and a multi-glass design for good lighting.
Easy to manage:
The vehicle is equipped with an intelligent vehicle operation and management platform with functions such as remote vehicle control, one-piece diagnosis, intelligent maintenance and exclusive settings. Improve vehicle management and operation efficiency
Convenient charging:
A variety of power distribution programs to meet the operational needs of different routes. Fast charging during the day, with a range of 180 kilometers in one hour. Centralized slow charging at night.
Intelligent driving assistance, easy to understand the status of the bus
Intelligent eye assisted driving, multi-function, multi-interface display of electrical system information, intelligent maintenance prediction, driving behavior analysis. Energy consumption distribution information of the whole bus, etc.
Multiple technologies to protect vehicle safety
24-hour safety monitoring, five-level fire safety design and core technologies. The protection level of the three electric systems reaches IP68. Double waterproof grille design ensures ventilation and heat dissipation, and effectively prevents rainwater from entering the cabin.
High range:
The longest range is up to 660KM. Lightweight design of the whole vehicle, body weight reduction of 200KG, automatic optimization of torque control algorithms, braking recovery energy is more than 40%.
Translated with DeepL.com (free version)
Model TEG6803BEV Detail parameter
| Model TEG6803BEV Detail parameter | ||
| Basic parameters |
Overall dimension (mm)
|
10500*2500*3380
|
|
Number of seats
|
20-39 | |
|
Approach angle/departure angle(°)
|
8/9, 7/9
|
|
| Total mass(kg) | 18000 | |
|
Electric
drive and
control
system
|
Drive motor
|
Permanent magnet synchronous motor, power:100, 120/ 200/ 240(kW)
|
|
Energy storage
device
|
Lithium iron phosphate battery, 200.54~338.4kWh
|
|
|
Motor controller
|
Integrated controller
|
|
|
Chassis
|
suspension
|
Air suspension, front 2 and rear 4 airbags
|
|
Front axle
|
7T
|
|
|
Rear axle (axle)
|
11T
|
|
|
tyre
|
11R22.5 or 275/70R22.5,18 Levels
|
|
|
Rim
|
Eight point two five×22.5;Steel (optional: aluminum alloy)
|
|
|
braking system
|
With energy storage spring braking, electric transmission auxiliary braking,
ABS anti lock, dual circuit air braking
|
|
|
Body
|
Passenger door
|
Pneumatic, aluminum alloy, front double, rear double
inner swing
|
| Surrounded by drivers | Aluminum alloy full enclosure | |
| Handrail | plastic coated steel pipe, diameter 32mm,yellow (optional: aluminum alloy, stainless steel) | |
| Air duct | Foam air duct (optional panoramic aluminum alloy air duct) | |
|
Electrical
|
Air conditioner
model
|
Cooling and heating electric air conditioner, cooling capacity 30000 kcal
|
|
Defrosting system
|
With driver's area air outlet, high voltage electric
defroster 4kw
|
|
|
Other configurations
|
Vehicle cathode electrophoresis, full load body
|
|
Detail Pictures:
Pictures of actual applications
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
