| MOQ: | 1 unit |
| Price: | 100,000USD- 110,000USD per unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |

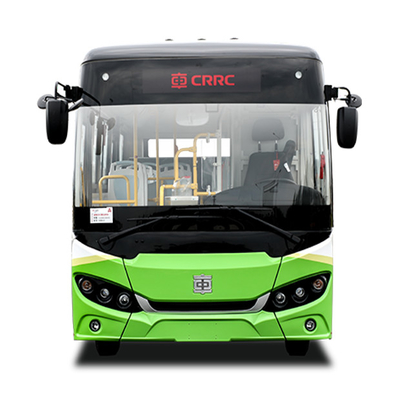

Highly Safe Mini Electric Bus TEG6661BEV01 Long-Lasting Driving Range
Advantages of TEG6661BEV01
The body is compact and easy to move:
Small body, length, width and height 6645×2250×3020mm, wheelbase 3450mm, turning diameter relative to the 8-meter urban and rural transit buses reduced by 10%, can shuttle freely in narrow roads, climbing > 20%, perfectly adapted to urban and rural road conditions.
Passenger and cargo areas are separated:
Two-step, rear flat floor, one-step transition from middle passenger area to rear passenger area, with the best space utilization; the number of seats up to 18, all towards the front direction of the seat arrangement, Ⅰ city bus seat arrangement pitch, increase the number of seats at the same time expanding the standing space; people and baggage partition management, to provide a safer urban and rural operation and more humane riding experience.
Energy-saving and long-lasting driving range:
With the new energy matching, design and control capability of CSR's high-speed railway, the whole vehicle has the top energy economy in the industry, which can maximize the mileage and reduce the operation cost; the high-efficiency permanent magnet motor improves the efficiency by 5%; and the lightweight design reduces the energy consumption by 10%;
Intelligent, check the bus status on your cell phone at any time:
With the characteristic intelligent management platform, it can remotely monitor the current operation status of the vehicle 24 hours a day on the cell phone terminal, provide customer charging management, and give the evaluation and analysis of the driver's operation specification, the vehicle's historical operation routes and energy consumption, and other operation management data; the whole vehicle is waterproof, fireproof, and collision-resistant design.
Model TEG6661BEV01 Detail parameter
| Model TEG6661BEV01 Detail parameter | ||
| Basic parameters |
Overall dimension (mm)
|
6645*2250*2870, 3020
|
| Front suspension/wheelbase/ rear suspension(mm) | 1705/ 3450/1490 | |
|
Passenger capacity/ seats
|
41/ 10-22 | |
|
Approach angle/departure angle(°)
|
10/ 13
|
|
| Total mass(kg) | 9500 | |
|
Electric
drive and
control
system
|
Drive motor
|
Permanent magnet synchronous motor, power:60/ 100(kW)
|
|
Energy storage
device
|
Lithium iron phosphate battery, 121.13kWh
|
|
|
Motor controller
|
Integrated controller
|
|
|
Chassis
|
suspension
|
Less leaf spring front 3 and rear 4
|
|
Front axle
|
3.5T
|
|
|
Rear axle (axle)
|
6T
|
|
|
tyre
|
All steel radial tire 215/ 75R17.5- 16
|
|
|
Rim
|
Steel
|
|
|
Braking system
|
With energy storage spring braking, electric transmission auxiliary braking,
ABS anti lock, dual circuit air braking, smart drainage
|
|
|
Body
|
Passenger door
|
Pneumatic, aluminum alloy, front single, rear single
inner swing
|
| Surrounded by drivers | Optional: Aluminum alloy full enclosure | |
| Handrail | plastic coated steel pipe, diameter 32mm,yellow (optional: aluminum alloy, stainless steel) | |
| Air duct | Aluminum-plastic duct with LED strip lights, equipped with 5 advertising boards | |
|
Electrical
|
Air conditioner
model
|
Cooling and heating electric air conditioner, cooling capacity of 14,000 kcal, equipped with PTC
|
|
Other configurations
|
Vehicle cathode electrophoresis, full load body
|
|
Detail Pictures:
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
