| MOQ: | 4 |
| Price: | USD 7800 Per Unit |
| Standard Packaging: | Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD |
| Delivery Period: | 60 working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10,000 Units per Year |

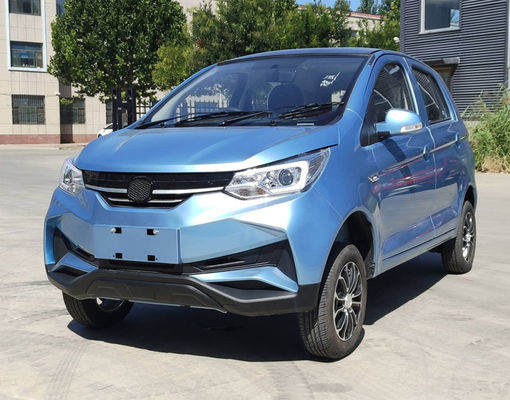

Safe Driving Electric Car Link 01 Intelligent Assisted Driving Electric Vehicle
Link 01 Advantage Introduction
Ⅰ: New energy is more environmentally friendly
Link 01, as a clean energy model replacing traditional fuel vehicles, has obvious environmental benefits. Link 01 adopts electric drive system, does not produce exhaust emissions, effectively reducing the release of air pollutants, improving urban air quality.
Ⅱ: Five doors and four seats are more practical
Link 01 car length of 3.5 meters, compact and good to drive, walk down the street in no time, parking is also very convenient. In the beautiful and compact at the same time, Link 01 has five doors and four seats space, the back row is also very convenient to get in and out of the car, and most of the models of A00-class body structure for the three-door four-seater, space is narrow, the back row of the inconvenience of getting in and out of the car. Link 01 rear can also be put down, rich storage space.
Ⅲ: safer driving
Link 01's safety performance is very good, with ABS anti-locking system, EBD brake force distribution system, intelligent tire pressure monitoring and other intelligent safety features, to provide all-round protection for your travel.
Ⅳ: Travel more comfortable
Link 01 standard with warm and cold air conditioning, 7-inch intelligent dual-link screen, in-car Android car system, four-door power windows, windows, one-key lift and other convenient, practical interior features, so that your travel is more convenient, more comfortable.
V: Charging is more convenient
The convenience of charging is one of the important reasons for the popularity of Link 01. Traditional new energy vehicles mainly rely on charging piles to charge, while the colorful car can be directly charged using household 220V direct power supply, more convenient and fast.
Link 01 Parameters
| Link 01 Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | permanent magnet synchronous |
| Number of Driving Motors | single motor |
| Motor Layout | Back |
| Maximum Power(kW) | 30 |
| Maximum Torque(N.m) | 110 |
| Maximum speed(Km/h) | 100 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | lithium iron phosphate battery |
| Battery capacity(kW.h) | 17.28 |
| CLTC range(km) | 205 |
| Slow charging time(10% to 100%)(h) | 9h |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 3532*1498*1605 |
| Wheelbase(mm) | 2275 |
| Wheel Track Front/Wheel Track Rear(mm) | 1290/ 1290 |
| Approach angle/ Departure angle(°) | 25/30 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Macohereson independent suspension |
| Rear Suspension |
Three-link non-independent suspension
|
| Front Brakes/ Rear Brakes | Discs Brake/ Drum Brake |
| Parking Brake | Handbrake |
| ABS/EBD | Standard |
| Drive Type | Rear Drive |
| Shift Mode | Knob Type |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size | 155/ 65 R13 |
| BODY | DESCRIPTION |
| Body Structure | Five-door,Four-seat hatchback |
| Seats Number | 4 |
| Seat Belt Type | three-pointed |
| Air Conditioning | Manual air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
Advantages of Our Cooperation on Auto Assembly Project
1.Technological advantage: China has become the No.1 auto manufacturing country in the world since 2009, and automobile manufacturing technology has been very mature. Especially the new energy automobile science and technology level is in the world leading position.
2010, China became the largest manufacturer of automobiles in the world.
2016 Chinese auto production about 28 millions units > Japanese cars production + U.S. auto production + Korea auto production
2016, the production of new energy vehicles in China was 700,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .
2017, the production of new energy vehicles in China was 860,000, the world's largest, surpassing the total output of new energy vehicles in all other countries .
2018, the Chinese government released latest news that electric vehicle manufacturing standard is higher than Europe standard.
2.Cost advantage: we are the automobile manufacturing group, the overseas chain operation scale advantage makes the KD parts we offer have higher cost performance ratio.Plus cost savings of difference of importing tariff between CBU and CKD gives our final product absolute competitive advantage.
3.Capital advantage: Auto Manufacturing Group + Capital Group provides sufficient investment funds for overseas chain operations. China's huge capital strength, and the Chinese government's national strategy of Belt and Road, provide a guarantee of sustainable growth for overseas chain auto assembly plant projects . With the development of parts localization, the industrialization of the project country will be greatly improved; this is a national win-win strategy.
4.Operational advantage: Over the past 10 years, eight overseas joint ventures have been successfully managed and operated. Our overseas joint venture projects include:
1)Syria A&B auto plant;
2)Ghana MKC Auto Co.,Ltd;
3)Angola ATJ-JinBei Auto Co.,Ltd;
4)Eastern Vehicle Co.,Ltd;
5)South Asia Brilliant auto plant;
6)Middle east Brilliance-Bavarian motor Ltd;
8)Mozambique bus assembly plant;
5.Highly efficient, customized investment mode:Refined investment schemes tailored to local conditions make it possible for highly capitalized, high-tech automotive manufacturing projects to be available in developing countries; our core competitiveness include: under the win-win principle, we actually provide manufacturing technology, invest in critical equipment, train local workers, transfer manufacturing technology, and provide guaranteed financial credit support. According to the actual situation of the project, provide the customized project implementation plan (step by step, decompose the big goal into several small tasks that can be implemented step by step).
6.Excellent win-win cooperation mode:Portfolio of complementary advantages: China invests in technologies that are not available locally, key facilities; local investors have land, plant, general equipment and liquidity.
Cooperation to make up for each others weakness : China is good at production management, technical advantages, local partners are familiar with the local market, government network.
Local partner holding majority can fully mobilize the work enthusiasm of the partner.
Local partner holding majority can be regarded as national industry, easier to obtain government preferential policy support and government orders. It is easier to get more support from banks and consumers, and the joint factory will be identified as national industry; it will be easier and better to run complex social relationships that are conducive to the development of enterprises.
In short, only unity of interests results in cooperation cohesion and win-win cooperation can have sustainable growth.
7.The profiting mode of the KD assembly plant project is to make effective use of the tariff difference and freight between CBU and KD parts, and combine with the subsidy policy of local government industrial development to produce the products which are good and cheap and meet the needs of the market.
|
|
