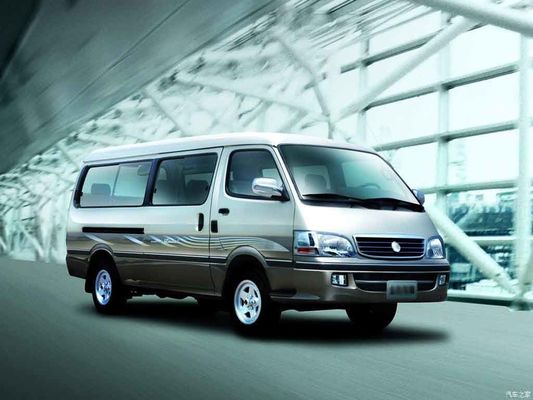

Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus

Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus

Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus
Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus
Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Length: 4900 Width: 1700
Height: 1980 Wheel Base (mm): 2590
High Light:

multi passenger van


transit passenger van

Haise Van for assembly for Joint venture assembly plant


Quotation for Haise Series
USD 9,280 USD 9,580 USD 11,180 USD 11,480
Model Gasoline Engine:JM491Q-ME(EFI) Deisel Engine:BJ493Q(Without turbocharge)
Displacement:2237 cc (same as 4JB1T)
Power Rate:76hp/ 4600rpm Displacement:2771 cc
Torque:193N.m/ 2000-2600 rpm Power Rate:68hp/ 3600rpm
  Torque:202N.m/ ≤2300rpm
Type 4-cylinder, water-cooled, EFI, Gasoline Vertical, in-line, forced water cooling, pressure charging, four stroke, direct injection combustion chamber, Diesel
Compression ratio 8.8:1 18.2:1
Max. Power (hp/rpm) 76/4600 68/3600
Max. torque (N.m/rpm) 193/2000-2600 202/≤2300
Fuel consumption (L/100km) 9.8 6.98
Emission standard Euro II
Overall dimension (mm) Length 4900 5200 4900 5200
Width 1700
Height 1980(Standard) / 2075 (Semi-high) / 2275 (High)
Wheel base (mm) 2590 2890 2590 2890
Tread, front/rear (mm) 1450/1430
Min. ground clearance (mm) 165
Curb vehicle weight (kg) 1620
Gross vehicle weight (kg) 2420
Seating capacity (persons) 14-15 seats
Fuel tank volume (L) 70
Tires 195R15
Steering Rack and Pinion
Suspension Front Independent Suspension by double beams with torsion bar spring
  Rear Leaf springs
Braking Front Disc type
  Rear Drums type Hydraulic braking system with vacuum booster
Clutch type Single plate, dry type diaphragm spring with tensional vibration damper
Gearbox 5 speed manual
Max. gradability (%) ≥32
Standard Optional
White color, 4JB1 Diesel engine with turbo +USD250
AM/FM stereo cassette player with 4 speakers Semi-high roof +USD200
Front heater High roof +USD400
Steel rim Front A/C +USD450
Seat belt for driver & co-driver Front and rear A/C +USD700
Soften steering Power steering +USD300
Tire 195R15 Power windows +USD80
15 seats
FM,AM radio/cassette player Curtain +USD50
  Single CD +USD60
  DVD + Reverse image +USD180
  New version floor +USD90
  New style dashboard +USD150
  Bilateral air duct for front and rear A/C +USD140
  Central door locks with handle +USD150
  Aluminum rim +USD190
  Rear wiper & washer +USD90
  Back ground mirror +USD40
  Seat belts for all passengers(12 seats) +USD50
  Adjustable steering wheel +USD70
  Cherry wood interior +USD70
  Chrome rub strips +USD40
  Power outside mirrors +USD80
  Silver/golden/red/blue/green color +USD300
  False Bilateral air duct for semi-high and high roof +USD90


Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus 0Haise Van Joint Venture Assembly Plant , Light Commercial Vehicle Minibus 1

we need your full understanding that to sell the vehicle or equipment to you is not our main purpose , we are mainly seeking partners for assembly plants as a joint venture globally


Explain why we arrange joint venture plant’s share structure:

"65% is held by local shareholders, while 35% is invested by our China auto manufacturer”

1, local shareholders, holding 65% share, have higher business enthusiasm, and this business mode is much better for the development of the plant;

2, local shareholders, holding 65% share, can take more support from their local government, Bank and consumers, and the factory will be recognized as national industry;

3, local shareholders holding 65% share, the domestic industrial enterprises are more likely to obtain the government's preferential policies for industrial development;

4, local shareholders, holding 65% share, can operate various complicated social relations easier and better, which is conducive to the development of the enterprise.


Our preference for joint venture partners:

We prefer to work with capitalists, industrialists and entrepreneurs, rather than cooperating with "landlords", and never accept the "cooperation mode of landlords".The so-called “Cooperation Mode of Landlord”, that is, the landlord owns land, and lives his life by collecting land rent or exploiting peasants. Those, who only provide the land or workshop building, don't work and contribute any working capital, just rely on exploitation of the lessee, are called the landlords. The main way for the landlords to exploit is to collect rent.



As a local partner, if you only provide the land, plant and/or production license, and the rest of funds, equipment, management and others are all provided by the Chinese party, it is just like local landlords to collect profits without any other investment. So, sorry, you are not the partner we are looking for. We like to collaborate with industrialists, capitalists and entrepreneurs, those who have been or are being engaged in industry, with full of experiences, are more suitable for becoming our cooperators. Our cooperation principle is “working together to be bigger and stronger, and to achieve a win-win situation.”


My friend,in order to make our project go well and smoothly, pls read below :


Partner requirements of cooperation or joint venture term:

1.1, Your self workshop: you had have 5000-8000 square meter workshop at least, and over 15000-25000 square meters industrial land.
1.2, Your-self Cash:

have some necessary economic strength, investment capacity must over two million USD.(don't include land, workshop value)
1.3, Market channel: have car sales channel (sales network) or car garage remanufacturing second-hand car, or with the car related businesses.
1.4, Your country Nice Import tariff policy: Your country import tariff policy very important, gap of import tariff between auto spare part CKD (completely
knocked down) term and CBU (complete built unit) shall be at least 30-35%; for example, import tariff on CBU term is 35%, CKD term must be 5%

or free.This term is most important factor for setting up an assembly plant in local. if CBU with CKD is almost same,the auto plant will

have not profit space.

our investment :

production line design + technology support + staff training + equipment installing&maintenance +management guidance + welding line + general assembly line


If you can meet the above mentioned criteria, let’s continue to talk further. Thank you.
