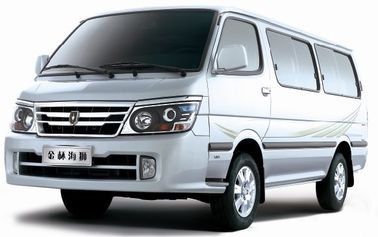

Commercial Haise Van 15 Person Passenger Van 4 Door Gasoline / Deisel Engine

MOQ: 1
Price: USD 8800-10000
Delivery Period: 30 work days
Payment Method: L/C, T/T
Supply Capacity: 1000 units/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Type:
Van
Warranty:
1 YEAR
Size:
Standard
Car Model:
Jinbei Haise Joylong Van
Car Make:
HAISE VAN
Minimum Order Quantity:
1
Price:
USD 8800-10000
Delivery Time:
30 work days
Payment Terms:
L/C, T/T
Supply Ability:
1000 units/month
Highlight:

haise minibus

,

transit passenger van

Product Description

High Quality Standard Van/ 15 seats Van



ModelGasoline Engine:JM491Q-ME(EFI)Deisel Engine:BJ493Q(Without turbocharge)
Displacement:2237 cc(same as 4JB1T)
Power Rate:76hp/ 4600rpmDisplacement:2771 cc
Torque:193N.m/ 2000-2600 rpmPower Rate:68hp/ 3600rpm
 Torque:202N.m/ ≤2300rpm
Type4-cylinder, water-cooled, EFI, GasolineVertical, in-line, forced water cooling, pressure charging, four stroke, direct injection combustion chamber, Diesel

Compression ratio8.8:118.2:1
Max. Power (hp/rpm)76/460068/3600
Max. torque (N.m/rpm)193/2000-2600202/≤2300
Fuel consumption (L/100km)9.86.98
Emission standardEuro II
Specifications
Overall dimension (mm)Length4900520049005200
Width1700
Height1980(Standard) / 2075 (Semi-high) / 2275 (High)
Wheel base (mm)2590289025902890
Tread, front/rear (mm)1450/1430
Min. ground clearance (mm)165
Curb vehicle weight (kg)1620
Gross vehicle weight (kg)2420
Seating capacity (persons)14-15 seats
Fuel tank volume (L)70
Tires195R15
SteeringRack and Pinion
SuspensionFrontIndependent Suspension by double beams with torsion bar spring
 RearLeaf springs
BrakingFrontDisc type
 RearDrums type Hydraulic braking system with vacuum booster
Clutch typeSingle plate, dry type diaphragm spring with tensional vibration damper
Gearbox5 speed manual
Max. gradability (%)≥32
Fetures
StandardOptional
White color,4JB1 Diesel engine with turbo +USD250
AM/FM stereo cassette player with 4 speakersSemi-high roof +USD200
Front heaterHigh roof +USD400
Steel rimFront A/C +USD450
Seat belt for driver & co-driverFront and rear A/C +USD700
Soften steeringPower steering +USD300
Tire 195R15Power windows +USD80
15 seats
FM,AM radio/cassette playerCurtain +USD50
 Single CD +USD60
 DVD + Reverse image +USD180
 New version floor +USD90
 New style dashboard +USD150
 Bilateral air duct for front and rear A/C +USD140
 Central door locks with handle +USD150
 Aluminum rim +USD190
 Rear wiper & washer +USD90
 Back ground mirror +USD40
 Seat belts for all passengers(12 seats) +USD50
 Adjustable steering wheel +USD70
 Cherry wood interior +USD70
 Chrome rub strips +USD40
 Power outside mirrors +USD80
 Silver/golden/red/blue/green color +USD300
 False Bilateral air duct for semi-high and high roof +USD90
Tags:

transit passenger van,

multi passenger van,

haise minibus
