| MOQ: | 4 units |
| Price: | 27500 USD/unit |
| Standard Packaging: | Steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 5000unit/year |
Driving Comfort Electric Car RL9 Big Capacity SUV Range Up To 380Km
RL9 General Introduction
The RL9 is a battery-swap-enabled SUV with a LxWxH of 4845x1890x1778 (mm), a wheelbase of 2825 mm and a choice of 2+2+2/2+3+2 seating layouts. The battery is equipped with a 66.57kWh Li-ion ternary battery with a CLTC range of 380 kilometers.
Exterior Description:
The front of the car adopts the penetrating LED daytime running lights, the headlights are divided into two sides, the far and near light source also adopts LED. tire size is 225/55 R18. Charging port is set in the front wing panel position. The battery layout at the bottom of the car is flat, and the car has strong passability.
Interior Description:

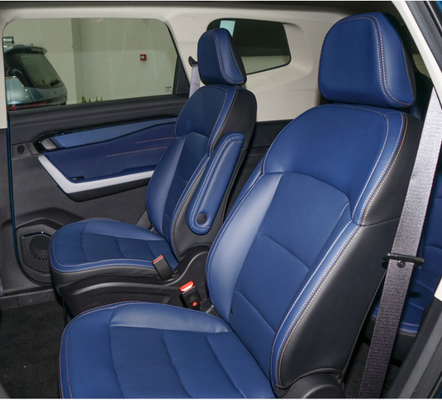

The interior of RL9 is designed in blue and black color scheme, which looks very luxurious and atmospheric. Leather steering wheel with 12.3-inch floating central LCD screen, technology is full of sense. Inside the car retains the air conditioning physical keys, USB port, radio and other practical functions. The 60-inch panoramic sky and imitation leather seats make the passenger experience better.Will the rear row. The trunk space can reach 2360L after putting down the rear seats.
Power Description:
RL9 adopts front-mounted single-motor drive, the battery energy provides 52.56kwh, can realize CLTC comprehensive working condition pure electric range of 380km, the maximum power of the motor is 150kW, peak torque 310Nm.
| Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motor |
| Motor Layout | Front |
| Maximum Power(kW) | 150 |
| Maximum Torque(N.m) | 310 |
| Maximum speed(Km/h) | 163 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Ternary lithium battery |
| Rated Power(kW.h) | 52.56 |
| CLTC(km) | 305 |
| Fast Charging Time (h) | 12h |
| Battery Fast Charge Range(%) | 80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 4845*1890*1778 |
| Wheelbase(mm) | 2825 |
| Wheel Track Front(mm) | 1600 |
| Wheel Track Rear(mm) | 1620 |
| Approach angle | 17.4 |
| Departure angle | 23.9 |
| Minimum Ground Clearance | 135 |
| WEIGHT | DESCRIPTION |
| Curb Weight(Kg) | 1850 |
| Maximum full load weight(Kg) | 2300 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension | Composite multi-link non-independent suspension |
| Front Brakes | Ventilated Disc Brake |
| Rear Brakes | Disc Brake |
| Parking Brake | Electric Parking |
| ABS/EBD | Standard |
| Drive Type | FF |
| Shift Mode | Electronic gear shift device |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size | 225/ 55 R18 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, six-seat SUV |
| Seat Belt Type | Three-Poin |
| Air Conditioning | Automatic air conditioning |
Detailed display pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
