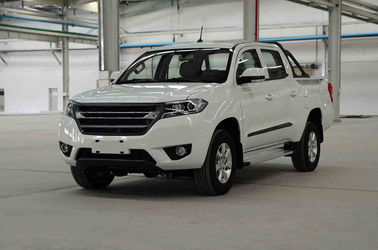

Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly

Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly

MOQ: 1
Price: USD11,999.00-USD12,699.00 / Unit
Standard Packaging: Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Period: 60 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000 Units per Year
Detail Information
Place of Origin
CHINA
Brand Name
FD
Model Number
FD-1030-03
Engine:
Yunnei D19TCID1
Displacement:
1850cc
Length:
5219mm
Width:
1870mm
Height:
1864mm
Transmission:
5 Speed Manual
Engine Power:
100KW (136HP)
Drive Type:
4x2 Drive
Emission Standard:
Euro IV
Braking System:
Front Ventilated Disc, Rear Drum
Project:
Car Assembly
Item:
Auto Assembling
Minimum Order Quantity:
1
Price:
USD11,999.00-USD12,699.00 / Unit
Packaging Details:
Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Delivery Time:
60 working days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100000 Units per Year
High Light:

mini pickup trucks

,

vehicle assembly line

Product Description





Assembly of Small Pickup Trucks Strong 4x2 Drive Diesel Pickup Truck in Knocked Down Kits





Six main advantages of assembling the Small Pickup Trucks Strong 4x2 Drive Diesel Pickup Truck in local:

--- Save Customs Duty and other tax;

--- Save Shipping Cost;

--- Increase margin;

--- Improve competitiveness;

--- Develop your local industry;

--- Creat job opportunities.







1. Description of the Small Pickup Trucks Strong 4x2 Drive Diesel Pickup Truck:



Double Cabin Pickup Truck - Model 1030
Version 1030 Diesel 2WD Deluxe 1030 Diesel 2WD Standard
Basic Parameter
Engine 1.9T 136 Horse Power 1.9T 136 Horse Power
Transmission 5 Speed Manual 5 Speed Manual
Overall Dimensions (mm) 5219*1870*1864 5219*1870*1844
Maximum Speed 140 140
Actual Fuel Consumption 8.6 8.6
Theoretical Fuel Consumption 7.8 7.8
Ground Clearance(mm) 217 217
Car body
Wheel Base(mm) 3100 3100
Front Wheel Base (mm) 1580 1580
Rear Wheel Base (mm) 1580 1580
Curb Mass (kg) 1830 1830
Vechicle Type Pickup Truck Pickup Truck
Door 4 4
Seat 5 5
Fuel Tank Capacity(L) 72 72
Engine
Engine Type D19TCID1 D19TCID1
Displacement(ml) 1850 1850
Air Intake Type Turbo Charger Turbo Charger
Cylinder Spread Pattern L L
Number of Cylinder 4 4
Air Valve in Each Cylinder 4 4
Compression Ratio 16.5:1 16.5:1
Valve Mechanism DOHC DOHC
Maximum Horsepower(Ps) 136 136
Maximum Power(Kw) 100 100
Maximum Power Speed(rpm) 4000 4000
Maximum Torque(N.m) 300 300
Maximum Torque Speed(rpm) 2800 2800
Fuel Type Diesel Diesel
Fuel Supply Type common rail direct injection common rail direct injection
Cylinder Head Material Aluminum Aluminum
Cylinder Body Material Iron Iron
Emission Euro Ⅳ Euro Ⅳ
Transmission
Speed 5 5
Type Manual Transmission(MT) Manual Transmission(MT)
Chassis
Driving Method 2WD 2WD
Front Suspension Double Wishbone Independent Suspension Double Wishbone Independent Suspension
Rear Suspension Leafspring Leafspring
Steering Hydraulic Power Steering Hydraulic Power Steering
Body Structure non-integrated type non-integrated type
Wheel Brake
Front Brake Type Ventilated Disc Ventilated Disc
Rear Brake Type Drum Drum
Parking Brake Type Hand Hand
Front Tyre Size 245/70R17 235/70 R16
Rear Tyre Size 245/70R17 235/70 R16
Spare Tyre Full Size Full Size
Active/Passive Safety
Dual Airbags Driver side● / Co-driver side● -
Seatbelt Unfastening Warning System
Central Locking
Remote Key
Control Equipment
ABS
EBD
External Equipment
Alum-Alloy Wheel
Internal Equipment
Steering Wheel Leather -
Steering Wheel Adjusting Type Up and Down Up and Down
Steering Wheel w/Audio and Bluetooth -
Visual Imaging System -
ECU Monitor
Seat Equipment
Seat Material Leather Imitation leather
The Central Armrest Front● / Rear- Front● / Rear-
Multimedia Equipment
GPS System
Colourful Screen
Bluetooth/Car telephone
Sound Source Connector USB+AUX USB+AUX
Speaker 8 8
Lighting Equipment
Dipped Headlight Halogen Halogen
Full Beam Headlight Halogen Halogen
Front Lamp
Electric Height-adjustable Headlamps
Window/Rear View Mirror
Front/Rear Window Electric Electric
Electrical Control Rear View Mirror
Air Condition
Electric Control Air Conditioning Manual/Automatic Manual/Automatic
Remarks: 1. "●"Available "—"Not Available; 2. Length of Vehicle is 5330mm when equipped with Rear Bumper; 3. All the above mentioned quotations are valid for 30 days from the issuing date here.



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 0







2. Our service and our capability:



In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 1









3. Our Cooperation Mode:


A. Trade Agency



At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.


B. Turnkey Project/ Technology Transfer Mode



In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.


C. Joint Venture Mode


1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.



3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.







4. Requirements on our Cooperation Partners:



If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:



• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.



• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.



• Market channel: You’d better have your own car sales channel & network, automobile related business.



• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.



• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.

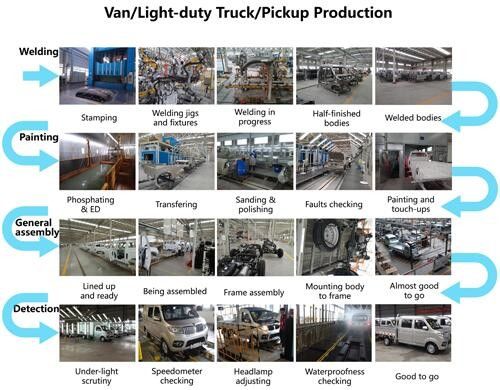

5. Process of our Auto KD Assembly Project:



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 2







6. Finally, this Auto KD Assembly Project is Profitable:



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 3



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 4



Strong 4x2 Drive Diesel Pickup Trucks In Knocked Down Kits Automobile Assembly 5











If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!



Looking forward to your cooperation!!



Our Contact:

Lucky Peng (Ms.)

China Big S & T Dev (Group) Co., Limited

Website: www.auto-assemblyplants.com; www.chainautoassembly.com; www.china-big.com.cn

Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;

Skype: chongqingbig

Tel No. (WeChat / Whatsapp / Viber): 15223551381
